HANSAUNITA

5814 9103

Chrome

€ 570,00

EAN 4015474253353

HANSAUNITA

5814 9113 0067

€ 580,00

Chrome

EAN 4015474268357

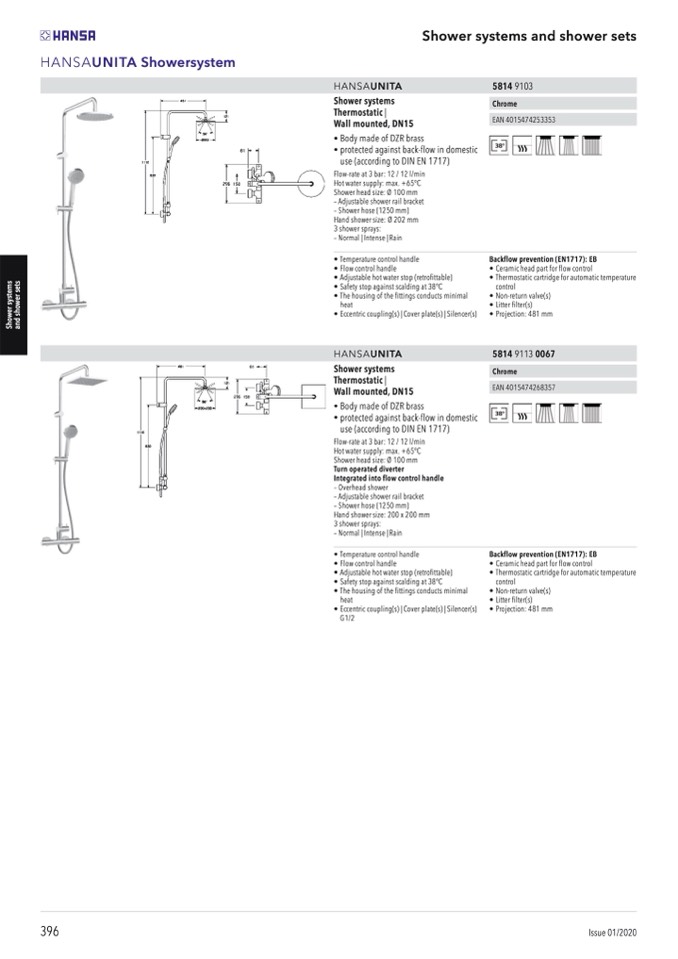

Shower systems and shower sets

HANSAUNITA Showersystem

Shower systems

Thermostatic |

Wall mounted, DN15

• Body made of DZR brass

• protected against back-flow in domestic

use (according to DIN EN 1717)

Flow-rate at 3 bar: 12 / 12 l/min

Hot water supply: max. +65°C

Shower head size: Ø 100 mm

– Adjustable shower rail bracket

– Shower hose (1250 mm)

Hand shower size: Ø 202 mm

3 shower sprays:

– Normal | Intense | Rain

• Temperature control handle

• Flow control handle

• Adjustable hot water stop (retrofittable)

• Safety stop against scalding at 38°C

• The housing of the fittings conducts minimal

heat

• Eccentric coupling(s) | Cover plate(s) | Silencer(s)

Shower systems

Thermostatic |

Wall mounted, DN15

• Body made of DZR brass

• protected against back-flow in domestic

use (according to DIN EN 1717)

Flow-rate at 3 bar: 12 / 12 l/min

Hot water supply: max. +65°C

Shower head size: Ø 100 mm

Turn operated diverter

Integrated into flow control handle

– Overhead shower

– Adjustable shower rail bracket

– Shower hose (1250 mm)

Hand shower size: 200 x 200 mm

3 shower sprays:

– Normal | Intense | Rain

Backflow prevention (EN1717): EB

• Ceramic head part for flow control

• Thermostatic cartridge for automatic temperature

control

• Non-return valve(s)

• Litter filter(s)

• Projection: 481 mm

Backflow prevention (EN1717): EB

•

•

•

•

•

•

Temperature control handle

Flow control handle

Adjustable hot water stop (retrofittable)

Safety stop against scalding at 38°C

The housing of the fittings conducts minimal

heat

Eccentric coupling(s) | Cover plate(s) | Silencer(s)

G1/2

•

•

•

•

•

Ceramic head part for flow control

Thermostatic cartridge for automatic temperature

control

Non-return valve(s)

Litter filter(s)

Projection: 481 mm

396

Issue 01/2020
