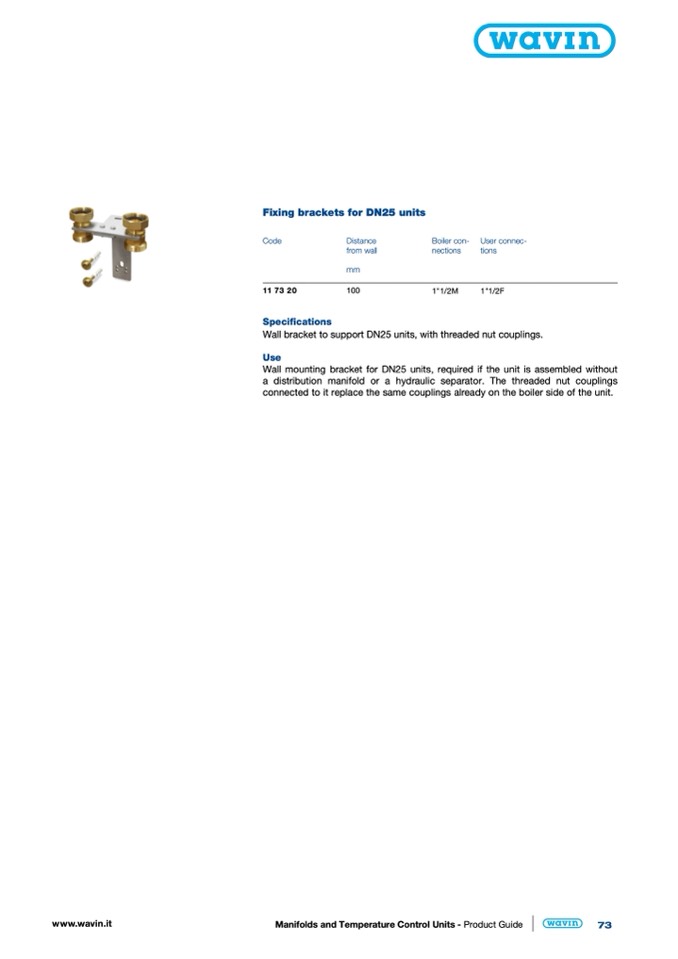

Fixing brackets for DN25 units

Code

Distance

from wall

mm

11 73 20

100

Specifications

Boiler con-

nections

1"1/2M

User connec-

tions

1"1/2F

Wall bracket to support DN25 units, with threaded nut couplings.

Use

Wall mounting bracket for DN25 units, required if the unit is assembled without

a distribution manifold or a hydraulic separator. The threaded nut couplings

connected to it replace the same couplings already on the boiler side of the unit.
