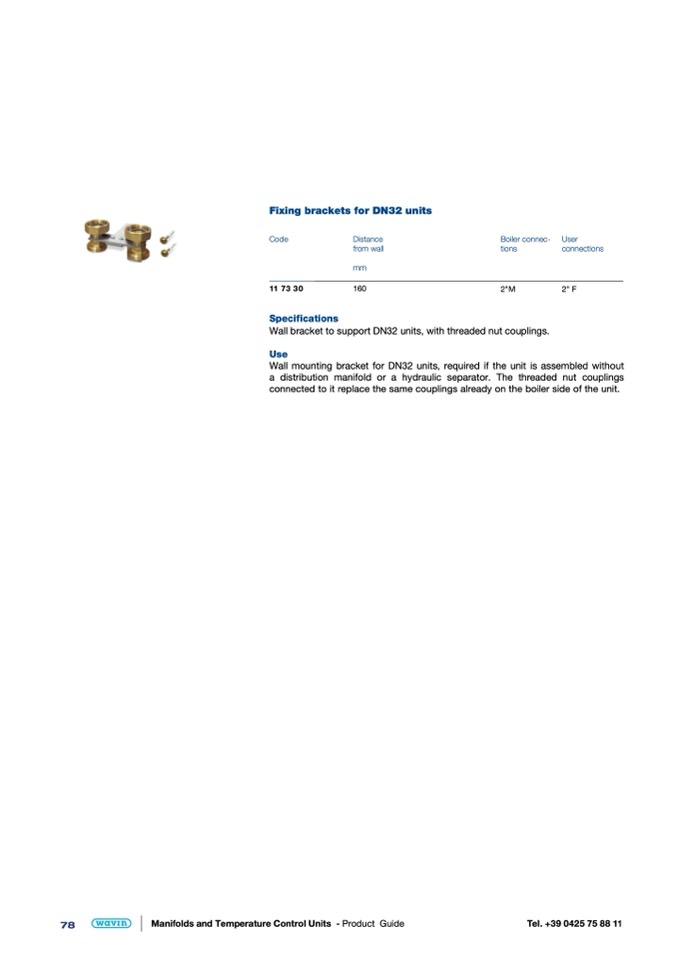

Fixing brackets for DN32 units

Code

Distance

from wall

mm

11 73 30

160

Specifications

Boiler connec-

tions

2"M

User

connections

2" F

Wall bracket to support DN32 units, with threaded nut couplings.

Use

78

Manifolds and Temperature Control Units - Product Guide

Tel. +39 0425 75 88 11

Wall mounting bracket for DN32 units, required if the unit is assembled without

a distribution manifold or a hydraulic separator. The threaded nut couplings

connected to it replace the same couplings already on the boiler side of the unit.
