Technical characteristics

Rotating Servomotor

Twisting moment

Rotation angle

Rotation speed

Power supply voltage

Consumption

Degree of Protection

Protection class

Dimensions

Weight

UoM

Nm

Degrees

sec

V

VA

-

-

mm

g

Values

5

90°

60/90/120

24 V AC/DC

5

IP42

II

84 x 101 x 85

650

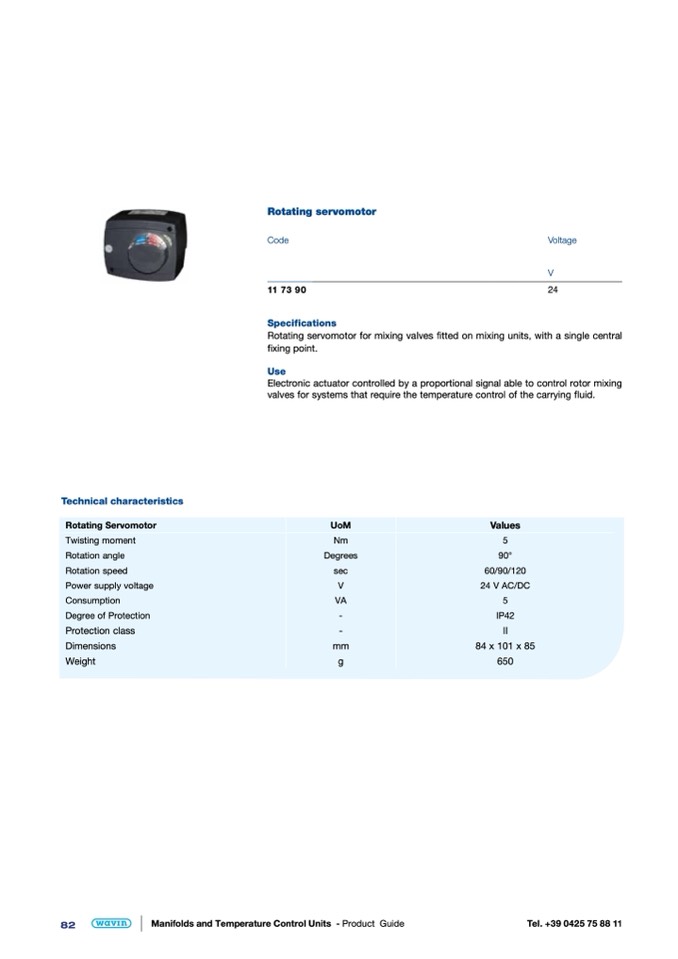

Rotating servomotor

Code

Voltage

V

11 73 90

24

Specifications

Rotating servomotor for mixing valves fitted on mixing units, with a single central

fixing point.

Use

Electronic actuator controlled by a proportional signal able to control rotor mixing

valves for systems that require the temperature control of the carrying fluid.
