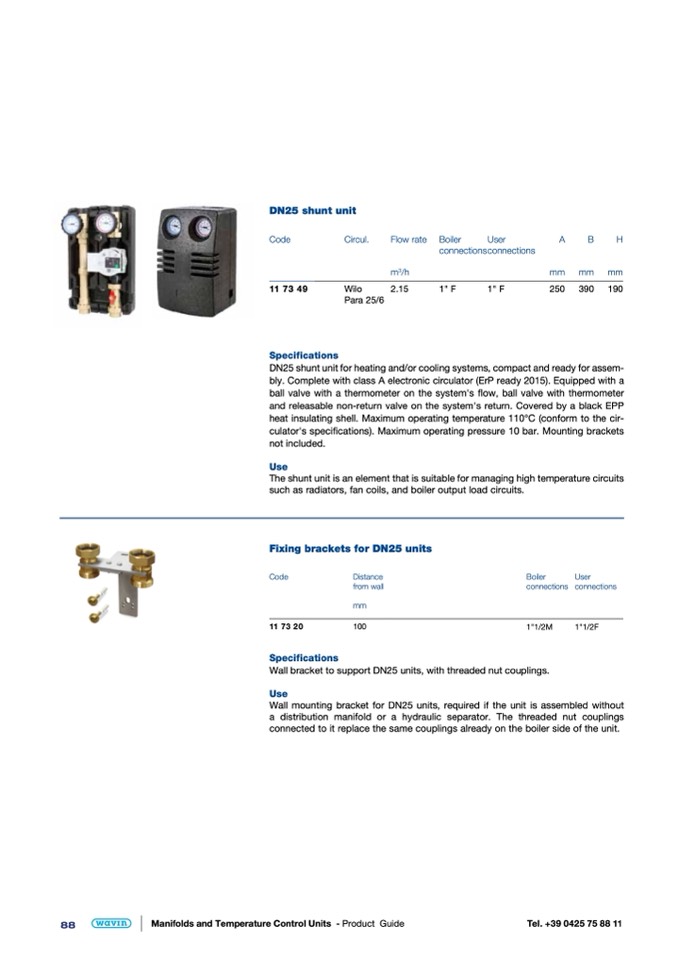

DN25 shunt unit

Code

11 73 49

Specifications

Circul.

Flow rate

m

3

/h

Wilo

2.15

Para 25/6

Boiler

User

connections connections

1" F

1" F

A

B

H

mm mm mm

250

390

190

DN25 shunt unit for heating and/or cooling systems, compact and ready for assem-

bly. Complete with class A electronic circulator (ErP ready 2015). Equipped with a

ball valve with a thermometer on the system's flow, ball valve with thermometer

and releasable non-return valve on the system's return. Covered by a black EPP

heat insulating shell. Maximum operating temperature 110°C (conform to the cir-

culator's specifications). Maximum operating pressure 10 bar. Mounting brackets

not included.

Use

The shunt unit is an element that is suitable for managing high temperature circuits

such as radiators, fan coils, and boiler output load circuits.

Fixing brackets for DN25 units

Code

Distance

from wall

mm

11 73 20

100

Specifications

Boiler

connections

1"1/2M

User

connections

1"1/2F

88
