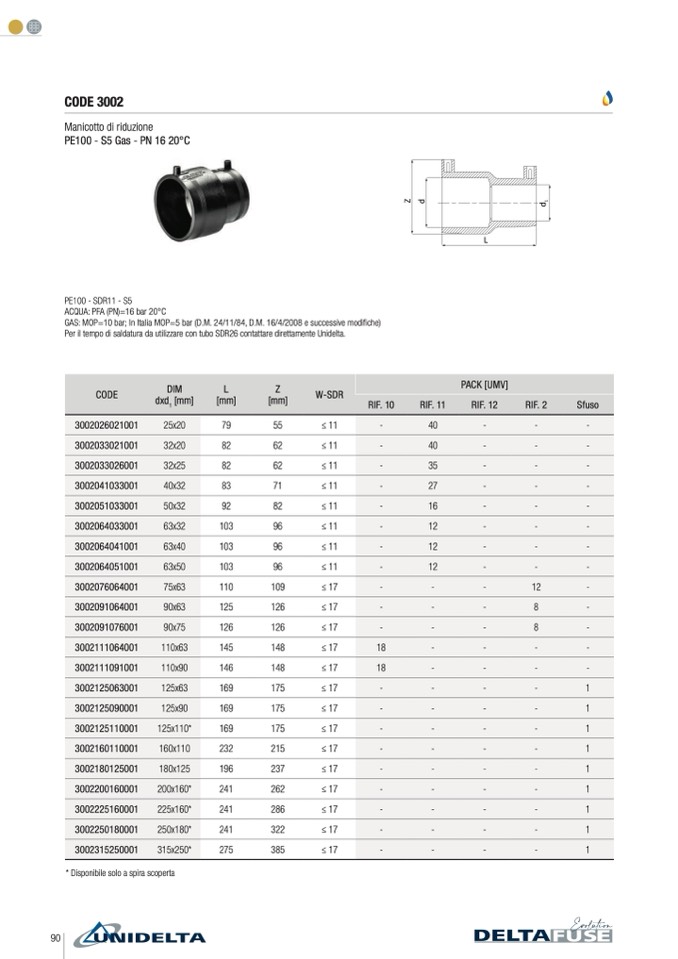

CODE 3002

Manicotto di riduzione

PE100 - S5 Gas - PN 16 20°C

PE100 - SDR11 - S5

ACQUA: PFA (PN)=16 bar 20°C

GAS: MOP=10 bar; In Italia MOP=5 bar (D.M. 24/11/84, D.M. 16/4/2008 e successive modi

fiche)

Per il tempo di saldatura da utilizzare con tubo SDR26 contattare direttamente Unidelta.

* Disponibile solo a spira scoperta

d

L

Z

d

1

CODE

DIM

dxd

1

[mm]

L

[mm]

Z

[mm]

W-SDR

PACK [UMV]

RIF. 10

RIF. 11

RIF. 12

RIF. 2

Sfuso

3002026021001

25x20

79

55

≤ 11

-

40

-

-

-

3002033021001

32x20

82

62

≤ 11

-

40

-

-

-

3002033026001

32x25

82

62

≤ 11

-

35

-

-

-

3002041033001

40x32

83

71

≤ 11

-

27

-

-

-

3002051033001

50x32

92

82

≤ 11

-

16

-

-

-

3002064033001

63x32

103

96

≤ 11

-

12

-

-

-

3002064041001

63x40

103

96

≤ 11

-

12

-

-

-

3002064051001

63x50

103

96

≤ 11

-

12

-

-

-

3002076064001

75x63

110

109

≤ 17

-

-

-

12

-

3002091064001

90x63

125

126

≤ 17

-

-

-

8

-

3002091076001

90x75

126

126

≤ 17

-

-

-

8

-

3002111064001

110x63

145

148

≤ 17

18

-

-

-

-

3002111091001

110x90

146

148

≤ 17

18

-

-

-

-

3002125063001

125x63

169

175

≤ 17

-

-

-

-

1

3002125090001

125x90

169

175

≤ 17

-

-

-

-

1

3002125110001

125x110*

169

175

≤ 17

-

-

-

-

1

3002160110001

160x110

232

215

≤ 17

-

-

-

-

1

3002180125001

180x125

196

237

≤ 17

-

-

-

-

1

3002200160001

200x160*

241

262

≤ 17

-

-

-

-

1

3002225160001

225x160*

241

286

≤ 17

-

-

-

-

1

3002250180001

250x180*

241

322

≤ 17

-

-

-

-

1

3002315250001

315x250*

275

385

≤ 17

-

-

-

-

1
