sez.
1
.3

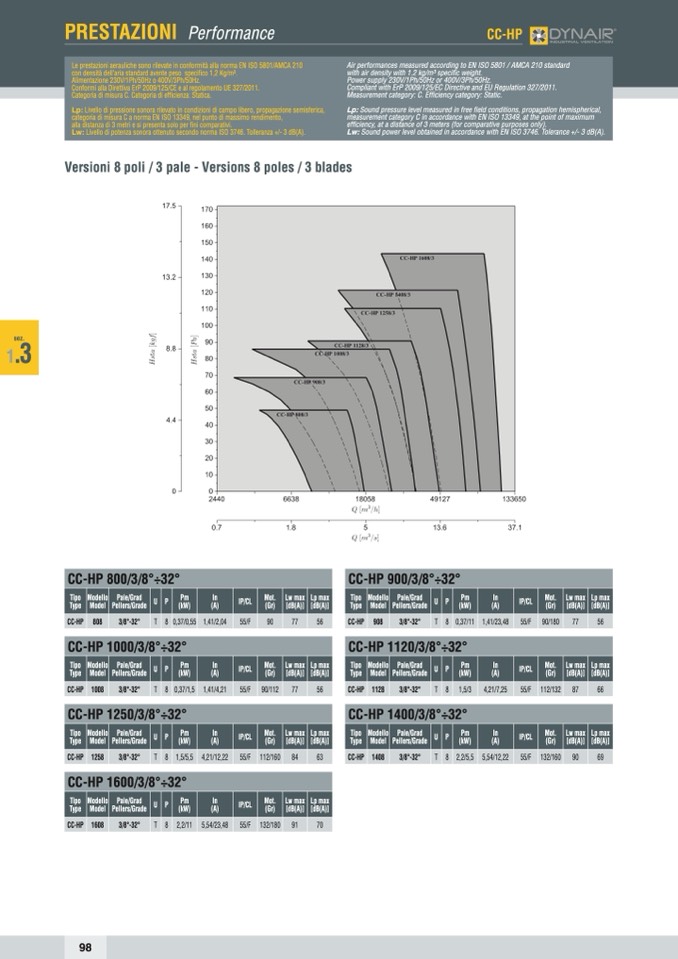

PRESTAZIONI Performance
Le prestazioni aerauliche sono rilevate in conformità alla norma EN ISO 5801/AMCA 210
con densità dell’aria standard avente peso specifico 1,2 Kg/m3.
Alimentazione 230V/1Ph/50Hz o 400V/3Ph/50Hz.
Conformi alla Direttiva ErP 2009/125/CE e al regolamento UE 327/2011.
Categoria di misura C. Categoria di efficienza: Statica.
Lp: Livello di pressione sonora rilevato in condizioni di campo libero, propagazione semisferica,
categoria di misura C a norma EN ISO 13349, nel punto di massimo rendimento,
alla distanza di 3 metri e si presenta solo per fini comparativi.
Lw: Livello di potenza sonora ottenuto secondo norma ISO 3746. Tolleranza +/- 3 dB(A).
CC-HP
Versioni 8 poli / 3 pale - Versions 8 poles / 3 blades
CC-HP 800/3/8°÷32°
Tipo Modello Pale/Grad
U P
Pm
In
Type Model Pellers/Grade
(kW)
(A)
IP/CL
Mot. Lw max
(Gr) [dB(A)]
Lp max
[dB(A)]
CC-HP 900/3/8°÷32°
Tipo Modello Pale/Grad
U P
Pm
In
Type Model Pellers/Grade
(kW)
(A)
IP/CL
Mot. Lw max
(Gr) [dB(A)]
Lp max
[dB(A)]
CC-HP 808
3/8°-32°
T 8 0,37/0,55 1,41/2,04
55/F
90
77
56
CC-HP 908
3/8°-32°
T 8 0,37/11 1,41/23,48 55/F 90/180
77
56
CC-HP 1000/3/8°÷32°
Tipo Modello Pale/Grad
U P
Pm
In
Type Model Pellers/Grade
(kW)
(A)
IP/CL
Mot. Lw max
(Gr) [dB(A)]
Lp max
[dB(A)]
CC-HP 1120/3/8°÷32°
Tipo Modello Pale/Grad
U P
Pm
In
IP/CL
Mot. Lw max Lp max
Type Model Pellers/Grade
(kW)
(A)
(Gr) [dB(A)] [dB(A)]
CC-HP 1008
3/8°-32°
T 8 0,37/1,5 1,41/4,21
55/F 90/112
77
56
CC-HP 1128
3/8°-32°
T 8 1,5/3
4,21/7,25
55/F 112/132 87
66
CC-HP 1250/3/8°÷32°
Tipo Modello Pale/Grad
U P
Pm
In
Type Model Pellers/Grade
(kW)
(A)
IP/CL
Mot. Lw max
(Gr) [dB(A)]
Lp max
[dB(A)]
CC-HP 1400/3/8°÷32°
Tipo Modello Pale/Grad
U P
Pm
In
IP/CL
Mot. Lw max Lp max
Type Model Pellers/Grade
(kW)
(A)
(Gr) [dB(A)] [dB(A)]
CC-HP 1258
3/8°-32°
T 8 1,5/5,5 4,21/12,22 55/F 112/160 84
63
CC-HP 1408
3/8°-32°
T 8 2,2/5,5 5,54/12,22 55/F 132/160 90
69
CC-HP 1600/3/8°÷32°
Tipo Modello Pale/Grad
Type Model Pellers/Grade
CC-HP 1608
3/8°-32°
U P
T 8
Pm
In
(kW)
(A)
2,2/11 5,54/23,48
IP/CL
Mot. Lw max
(Gr) [dB(A)]
55/F 132/180 91
Lp max
[dB(A)]
70
98
Air performances measured according to EN ISO 5801 / AMCA 210 standard
with air density with 1.2 kg/m3 specific weight.
Power supply 230V/1Ph/50Hz or 400V/3Ph/50Hz.
Compliant with ErP 2009/125/EC Directive and EU Regulation 327/2011.
Measurement category: C. Efficiency category: Static.
Lp: Sound pressure level measured in free field conditions, propagation hemispherical,
measurement category C in accordance with EN ISO 13349, at the point of maximum
efficiency, at a distance of 3 meters (for comparative purposes only).
Lw: Sound power level obtained in accordance with EN ISO 3746. Tolerance +/- 3 dB(A).
