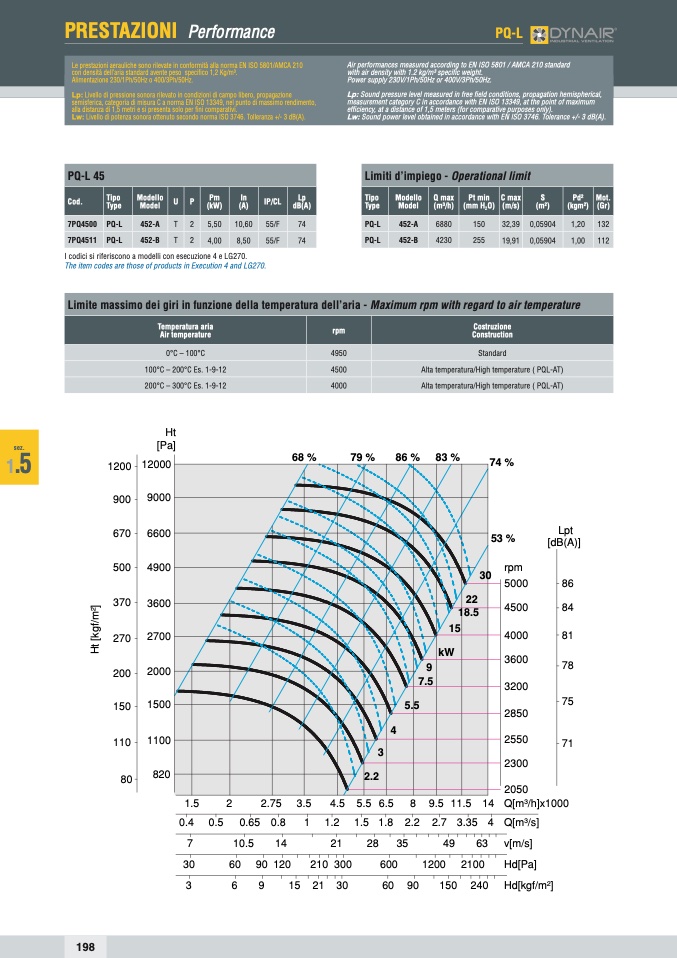

PRESTAZIONI Performance

Le prestazioni aerauliche sono rilevate in conformità alla norma EN ISO 5801/AMCA 210

con densità dell’aria standard avente peso specifico 1,2 Kg/m3.

Alimentazione 230/1Ph/50Hz o 400/3Ph/50Hz.

Lp: Livello di pressione sonora rilevato in condizioni di campo libero, propagazione

semisferica, categoria di misura C a norma EN ISO 13349, nel punto di massimo rendimento,

alla distanza di 1,5 metri e si presenta solo per fini comparativi.

Lw: Livello di potenza sonora ottenuto secondo norma ISO 3746. Tolleranza +/- 3 dB(A).

PQ-L

PQ-L 45

Cod.

Tipo

Type

7PQ4500 PQ-L

The item codes are those of products in Execution 4 and LG270.

Air performances measured according to EN ISO 5801 / AMCA 210 standard

with air density with 1.2 kg/m3 specific weight.

Power supply 230V/1Ph/50Hz or 400V/3Ph/50Hz.

Lp: Sound pressure level measured in free field conditions, propagation hemispherical,

measurement category C in accordance with EN ISO 13349, at the point of maximum

efficiency, at a distance of 1,5 meters (for comparative purposes only).

Lw: Sound power level obtained in accordance with EN ISO 3746. Tolerance +/- 3 dB(A).

Limiti d’impiego - Operational limit

Modello

U P

Pm

In

IP/CL

Model

(kW)

(A)

452-A

T 2

5,50

10,60

55/F

452-B

T 2

4,00

8,50

55/F

I codici si riferiscono a modelli con esecuzione 4 e LG270.

Lp

dB(A)

74

74

Tipo

Type

PQ-L

PQ-L

Modello

Model

452-A

452-B

Q max

(m3/h)

6880

4230

Pt min

(mm H

2

O)

150

255

C max

S

Pd2 Mot.

(m/s)

(m2)

(kgm2) (Gr)

32,39 0,05904

1,20 132

19,91 0,05904

1,00 112

7PQ4511 PQ-L

Limite massimo dei giri in funzione della temperatura dell’aria - Maximum rpm with regard to air temperature

Ht

sez.

[Pa]

1

.5

900

68 %

79 %

86 %

83 %

74 %

53 %

Temperatura aria

Air temperature

0°C – 100°C

100°C – 200°C Es. 1-9-12

200°C – 300°C Es. 1-9-12

rpm

4950

4500

4000

Costruzione

Construction

Standard

Alta temperatura/High temperature ( PQL-AT)

Alta temperatura/High temperature ( PQL-AT)

H

t

[

k

g

f

/

m

2

]

198

1200 12000

9000

670 6600

500 4900

370 3600

2700

2000

150 1500

1100

820

Lpt

[dB(A)]

270

200

22

18.5

15

kW

9

4500

84

4000

81

75

2850

110

80

3

2.2

2550

2300

71

7.5

5.5

4

1.5

0.4 0.5 0.65 0.8

1 1.2 1.5 1.8 2.2 2.7 3.35 4

78

3200

7

30

3

49

63

1200 2100

150 240

2

10.5

14

21

28

35

60 90 120

210 300

600

6

9

15 21 30

60 90

2050

Q[m3/h]x1000

Q[m3/s]

v[m/s]

Hd[Pa]

Hd[kgf/m2]

2.75

3.5

4.5 5.5 6.5

8 9.5 11.5 14

30

rpm

5000

86

3600
