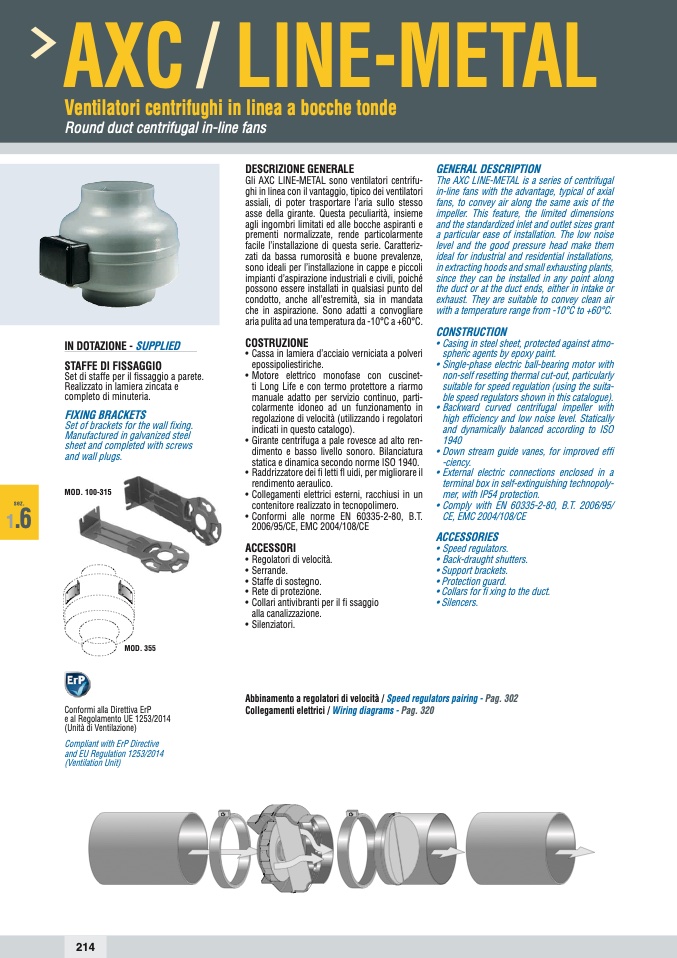

AXC / LINE-METAL

Ventilatori centrifughi in linea a bocche tonde

Round duct centrifugal in-line fans

IN DOTAZIONE - SUPPLIED

STAFFE DI FISSAGGIO

Set di staffe per il fissaggio a parete.

Realizzato in lamiera zincata e

completo di minuteria.

FIXING BRACKETS

Set of brackets for the wall fixing.

Manufactured in galvanized steel

sheet and completed with screws

and wall plugs.

MOD. 100-315

DESCRIZIONE GENERALE

Gli AXC LINE-METAL sono ventilatori centrifu-

ghi in linea con il vantaggio, tipico dei ventilatori

assiali, di poter trasportare l’aria sullo stesso

asse della girante. Questa peculiarità, insieme

agli ingombri limitati ed alle bocche aspiranti e

prementi normalizzate, rende particolarmente

facile l’installazione di questa serie. Caratteriz-

zati da bassa rumorosità e buone prevalenze,

sono ideali per l’installazione in cappe e piccoli

impianti d’aspirazione industriali e civili, poiché

possono essere installati in qualsiasi punto del

condotto, anche all’estremità, sia in mandata

che in aspirazione. Sono adatti a convogliare

aria pulita ad una temperatura da -10°C a +60°C.

COSTRUZIONE

• Cassa in lamiera d’acciaio verniciata a polveri

epossipoliestiriche.

• Motore elettrico monofase con cuscinet-

ti Long Life e con termo protettore a riarmo

manuale adatto per servizio continuo, parti-

colarmente idoneo ad un funzionamento in

regolazione di velocità (utilizzando i regolatori

indicati in questo catalogo).

• Girante centrifuga a pale rovesce ad alto ren-

dimento e basso livello sonoro. Bilanciatura

statica e dinamica secondo norme ISO 1940.

• Raddrizzatore dei fi letti fl uidi, per migliorare il

rendimento aeraulico.

• Collegamenti elettrici esterni, racchiusi in un

contenitore realizzato in tecnopolimero.

• Conformi alle norme EN 60335-2-80, B.T.

2006/95/CE, EMC 2004/108/CE

ACCESSORI

• Regolatori di velocità.

• Serrande.

• Staffe di sostegno.

• Rete di protezione.

• Collari antivibranti per il fi ssaggio

alla canalizzazione.

• Silenziatori.

GENERAL DESCRIPTION

The AXC LINE-METAL is a series of centrifugal

in-line fans with the advantage, typical of axial

fans, to convey air along the same axis of the

impeller. This feature, the limited dimensions

and the standardized inlet and outlet sizes grant

a particular ease of installation. The low noise

level and the good pressure head make them

ideal for industrial and residential installations,

in extracting hoods and small exhausting plants,

since they can be installed in any point along

the duct or at the duct ends, either in intake or

exhaust. They are suitable to convey clean air

with a temperature range from -10°C to +60°C.

CONSTRUCTION

• Casing in steel sheet, protected against atmo-

spheric agents by epoxy paint.

• Single-phase electric ball-bearing motor with

non-self resetting thermal cut-out, particularly

suitable for speed regulation (using the suita-

ble speed regulators shown in this catalogue).

• Backward curved centrifugal impeller with

high efficiency and low noise level. Statically

and dynamically balanced according to ISO

1940

• Down stream guide vanes, for improved effi

-ciency.

• External electric connections enclosed in a

terminal box in self-extinguishing technopoly-

mer, with IP54 protection.

• Comply with EN 60335-2-80, B.T. 2006/95/

CE, EMC 2004/108/CE

ACCESSORIES

• Speed regulators.

• Back-draught shutters.

• Support brackets.

• Protection guard.

• Collars for fi xing to the duct.

• Silencers.

Conformi alla Direttiva ErP

e al Regolamento UE 1253/2014

(Unità di Ventilazione)

Compliant with ErP Directive

and EU Regulation 1253/2014

(Ventilation Unit)

Abbinamento a regolatori di velocità / Speed regulators pairing - Pag. 302

Collegamenti elettrici / Wiring diagrams - Pag. 320

214

MOD. 355
