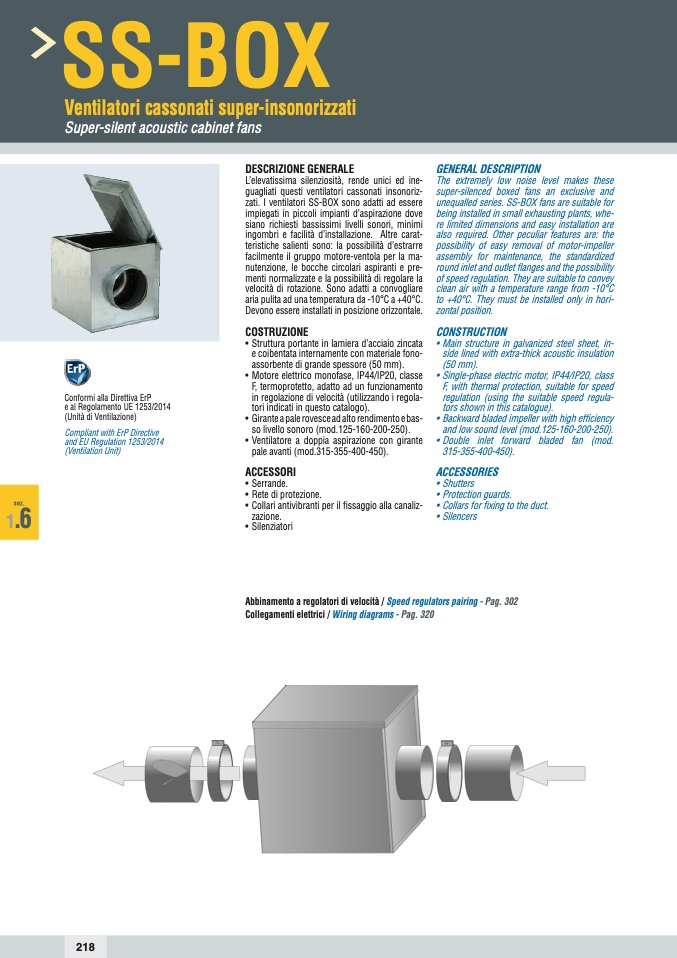

SS-BOX

Ventilatori cassonati super-insonorizzati

Super-silent acoustic cabinet fans

sez.

1

.6

Conformi alla Direttiva ErP

e al Regolamento UE 1253/2014

(Unità di Ventilazione)

Compliant with ErP Directive

and EU Regulation 1253/2014

(Ventilation Unit)

DESCRIZIONE GENERALE

L’elevatissima silenziosità, rende unici ed ine-

guagliati questi ventilatori cassonati insonoriz-

zati. I ventilatori SS-BOX sono adatti ad essere

impiegati in piccoli impianti d’aspirazione dove

siano richiesti bassissimi livelli sonori, minimi

ingombri e facilità d’installazione. Altre carat-

teristiche salienti sono: la possibilità d’estrarre

facilmente il gruppo motore-ventola per la ma-

nutenzione, le bocche circolari aspiranti e pre-

menti normalizzate e la possibilità di regolare la

velocità di rotazione. Sono adatti a convogliare

aria pulita ad una temperatura da -10°C a +40°C.

Devono essere installati in posizione orizzontale.

COSTRUZIONE

• Struttura portante in lamiera d’acciaio zincata

e coibentata internamente con materiale fono-

assorbente di grande spessore (50 mm).

• Motore elettrico monofase, IP44/IP20, classe

F, termoprotetto, adatto ad un funzionamento

in regolazione di velocità (utilizzando i regola-

tori indicati in questo catalogo).

• Girante a pale rovesce ad alto rendimento e bas-

so livello sonoro (mod.125-160-200-250).

• Ventilatore a doppia aspirazione con girante

pale avanti (mod.315-355-400-450).

ACCESSORI

• Serrande.

• Rete di protezione.

• Collari antivibranti per il fissaggio alla canaliz-

zazione.

• Silenziatori

GENERAL DESCRIPTION

The extremely low noise level makes these

super-silenced boxed fans an exclusive and

unequalled series. SS-BOX fans are suitable for

being installed in small exhausting plants, whe-

re limited dimensions and easy installation are

also required. Other peculiar features are: the

possibility of easy removal of motor-impeller

assembly for maintenance, the standardized

round inlet and outlet flanges and the possibility

of speed regulation. They are suitable to convey

clean air with a temperature range from -10°C

to +40°C. They must be installed only in hori-

zontal position.

CONSTRUCTION

• Main structure in galvanized steel sheet, in-

side lined with extra-thick acoustic insulation

(50 mm).

• Single-phase electric motor, IP44/IP20, class

F, with thermal protection, suitable for speed

regulation (using the suitable speed regula-

tors shown in this catalogue).

• Backward bladed impeller with high efficiency

and low sound level (mod.125-160-200-250).

• Double inlet forward bladed fan (mod.

315-355-400-450).

ACCESSORIES

• Shutters

• Protection guards.

• Collars for fixing to the duct.

• Silencers

Abbinamento a regolatori di velocità / Speed regulators pairing - Pag. 302

Collegamenti elettrici / Wiring diagrams - Pag. 320

218
