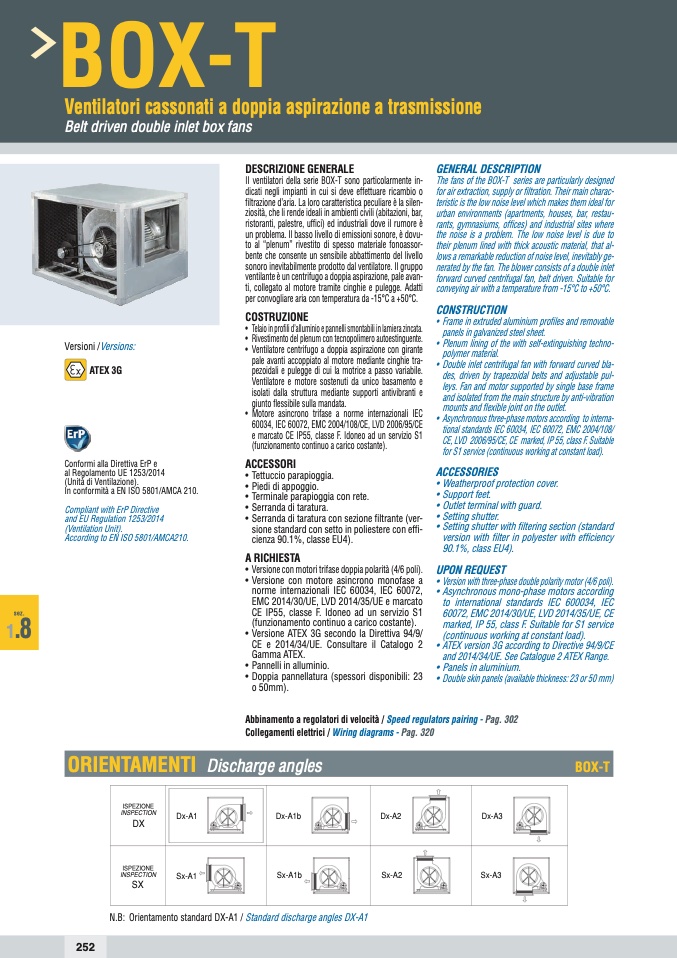

BOX-T

Ventilatori cassonati a doppia aspirazione a trasmissione

Belt driven double inlet box fans

sez.

1

.8

Versioni /Versions:

ATEX 3G

Conformi alla Direttiva ErP e

al Regolamento UE 1253/2014

(Unità di Ventilazione).

In conformità a EN ISO 5801/AMCA 210.

Compliant with ErP Directive

and EU Regulation 1253/2014

(Ventilation Unit).

According to EN ISO 5801/AMCA210.

DESCRIZIONE GENERALE

II ventilatori della serie BOX-T sono particolarmente in-

dicati negli impianti in cui si deve effettuare ricambio o

filtrazione d’aria. La loro caratteristica peculiare è la silen-

ziosità, che li rende ideali in ambienti civili (abitazioni, bar,

ristoranti, palestre, uffici) ed industriali dove il rumore è

un problema. Il basso livello di emissioni sonore, è dovu-

to al “plenum” rivestito di spesso materiale fonoassor-

bente che consente un sensibile abbattimento del livello

sonoro inevitabilmente prodotto dal ventilatore. Il gruppo

ventilante è un centrifugo a doppia aspirazione, pale avan-

ti, collegato al motore tramite cinghie e pulegge. Adatti

per convogliare aria con temperatura da -15°C a +50°C.

COSTRUZIONE

• Telaioinprofilid’alluminioepannellismontabiliinlamierazincata.

• Rivestimento del plenum con tecnopolimero autoestinguente.

• Ventilatore centrifugo a doppia aspirazione con girante

pale avanti accoppiato al motore mediante cinghie tra-

pezoidali e pulegge di cui la motrice a passo variabile.

Ventilatore e motore sostenuti da unico basamento e

isolati dalla struttura mediante supporti antivibranti e

giunto flessibile sulla mandata.

• Motore asincrono trifase a norme internazionali IEC

60034, IEC 60072, EMC 2004/108/CE, LVD 2006/95/CE

e marcato CE IP55, classe F. Idoneo ad un servizio S1

(funzionamento continuo a carico costante).

ACCESSORI

• Tettuccio parapioggia.

• Piedi di appoggio.

• Terminale parapioggia con rete.

• Serranda di taratura.

• Serranda di taratura con sezione filtrante (ver-

sione standard con setto in poliestere con effi-

cienza 90.1%, classe EU4).

A RICHIESTA

• Versione con motori trifase doppia polarità (4/6 poli).

• Versione con motore asincrono monofase a

norme internazionali IEC 60034, IEC 60072,

EMC 2014/30/UE, LVD 2014/35/UE e marcato

CE IP55, classe F. Idoneo ad un servizio S1

(funzionamento continuo a carico costante).

• Versione ATEX 3G secondo la Direttiva 94/9/

CE e 2014/34/UE. Consultare il Catalogo 2

Gamma ATEX.

• Pannelli in alluminio.

• Doppia pannellatura (spessori disponibili: 23

o 50mm).

GENERAL DESCRIPTION

The fans of the BOX-T series are particularly designed

for air extraction, supply or filtration. Their main charac-

teristic is the low noise level which makes them ideal for

urban environments (apartments, houses, bar, restau-

rants, gymnasiums, offices) and industrial sites where

the noise is a problem. The low noise level is due to

their plenum lined with thick acoustic material, that al-

lows a remarkable reduction of noise level, inevitably ge-

nerated by the fan. The blower consists of a double inlet

forward curved centrifugal fan, belt driven. Suitable for

conveying air with a temperature from -15°C to +50°C.

CONSTRUCTION

• Frame in extruded aluminium profiles and removable

panels in galvanized steel sheet.

• Plenum lining of the with self-extinguishing techno-

polymer material.

• Double inlet centrifugal fan with forward curved bla-

des, driven by trapezoidal belts and adjustable pul-

leys. Fan and motor supported by single base frame

and isolated from the main structure by anti-vibration

mounts and flexible joint on the outlet.

• Asynchronousthree-phasemotorsaccording tointerna-

tional standards IEC 60034, IEC 60072, EMC 2004/108/

CE, LVD 2006/95/CE, CE marked, IP 55, class F. Suitable

for S1 service (continuous working at constant load).

ACCESSORIES

• Weatherproof protection cover.

• Support feet.

• Outlet terminal with guard.

• Setting shutter.

• Setting shutter with filtering section (standard

version with filter in polyester with efficiency

90.1%, class EU4).

UPON REQUEST

• Version with three-phase double polarity motor (4/6 poli).

• Asynchronous mono-phase motors according

to international standards IEC 600034, IEC

60072, EMC 2014/30/UE, LVD 2014/35/UE, CE

marked, IP 55, class F. Suitable for S1 service

(continuous working at constant load).

• ATEX version 3G according to Directive 94/9/CE

and 2014/34/UE. See Catalogue 2 ATEX Range.

• Panels in aluminium.

• Doubleskinpanels(availablethickness:23or50mm)

Abbinamento a regolatori di velocità / Speed regulators pairing - Pag. 302

Collegamenti elettrici / Wiring diagrams - Pag. 320

ORIENTAMENTI Discharge angles

ISPEZIONE

BOX-T

INSPECTION

DX

ISPEZIONE

INSPECTION

SX

Dx-A1

Sx-A1

Dx-A1b

Sx-A1b

Dx-A2

Dx-A3

Sx-A2

Sx-A3

N.B: Orientamento standard DX-A1 / Standard discharge angles DX-A1
