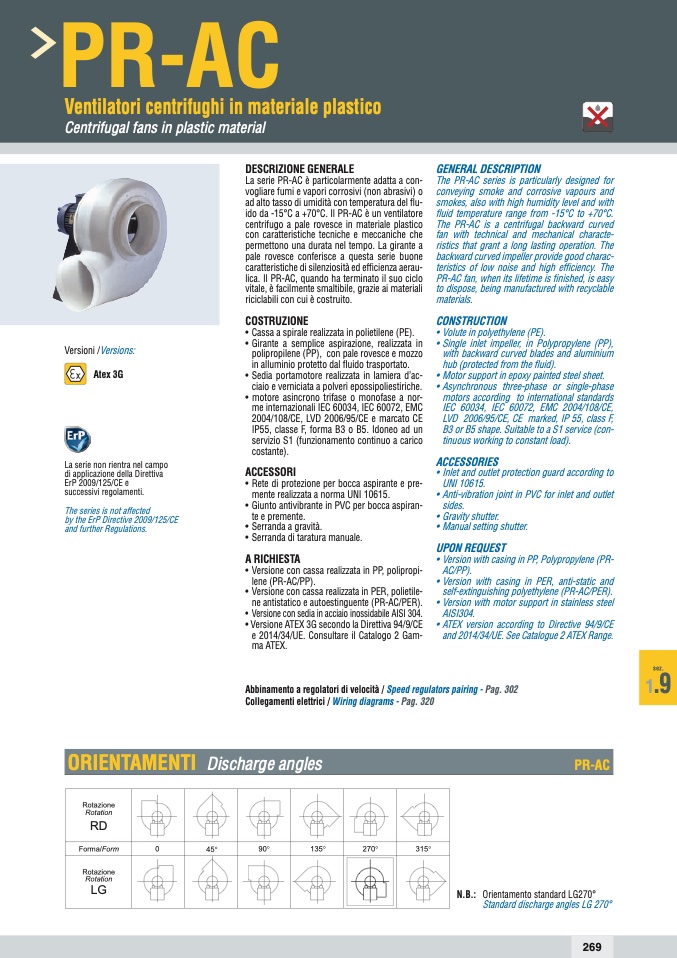

PR-AC

Ventilatori centrifughi in materiale plastico

Centrifugal fans in plastic material

Versioni /Versions:

Atex 3G

La serie non rientra nel campo

di applicazione della Direttiva

ErP 2009/125/CE e

successivi regolamenti.

The series is not affected

by the ErP Directive 2009/125/CE

and further Regulations.

DESCRIZIONE GENERALE

La serie PR-AC è particolarmente adatta a con-

vogliare fumi e vapori corrosivi (non abrasivi) o

ad alto tasso di umidità con temperatura del flu-

ido da -15°C a +70°C. Il PR-AC è un ventilatore

centrifugo a pale rovesce in materiale plastico

con caratteristiche tecniche e meccaniche che

permettono una durata nel tempo. La girante a

pale rovesce conferisce a questa serie buone

caratteristiche di silenziosità ed efficienza aerau-

lica. Il PR-AC, quando ha terminato il suo ciclo

vitale, è facilmente smaltibile, grazie ai materiali

riciclabili con cui è costruito.

COSTRUZIONE

• Cassa a spirale realizzata in polietilene (PE).

• Girante a semplice aspirazione, realizzata in

polipropilene (PP), con pale rovesce e mozzo

in alluminio protetto dal fluido trasportato.

• Sedia portamotore realizzata in lamiera d’ac-

ciaio e verniciata a polveri epossipoliestiriche.

• motore asincrono trifase o monofase a nor-

me internazionali IEC 60034, IEC 60072, EMC

2004/108/CE, LVD 2006/95/CE e marcato CE

IP55, classe F, forma B3 o B5. Idoneo ad un

servizio S1 (funzionamento continuo a carico

costante).

ACCESSORI

• Rete di protezione per bocca aspirante e pre-

mente realizzata a norma UNI 10615.

• Giunto antivibrante in PVC per bocca aspiran-

te e premente.

• Serranda a gravità.

• Serranda di taratura manuale.

A RICHIESTA

• Versione con cassa realizzata in PP, polipropi-

lene (PR-AC/PP).

• Versione con cassa realizzata in PER, polietile-

ne antistatico e autoestinguente (PR-AC/PER).

• Versione con sedia in acciaio inossidabile AISI 304.

• Versione ATEX 3G secondo la Direttiva 94/9/CE

e 2014/34/UE. Consultare il Catalogo 2 Gam-

ma ATEX.

GENERAL DESCRIPTION

The PR-AC series is particularly designed for

conveying smoke and corrosive vapours and

smokes, also with high humidity level and with

fluid temperature range from -15°C to +70°C.

The PR-AC is a centrifugal backward curved

fan with technical and mechanical characte-

ristics that grant a long lasting operation. The

backward curved impeller provide good charac-

teristics of low noise and high efficiency. The

PR-AC fan, when its lifetime is finished, is easy

to dispose, being manufactured with recyclable

materials.

CONSTRUCTION

• Volute in polyethylene (PE).

• Single inlet impeller, in Polypropylene (PP),

with backward curved blades and aluminium

hub (protected from the fluid).

• Motor support in epoxy painted steel sheet.

• Asynchronous three-phase or single-phase

motors according to international standards

IEC 60034, IEC 60072, EMC 2004/108/CE,

LVD 2006/95/CE, CE marked, IP 55, class F,

B3 or B5 shape. Suitable to a S1 service (con-

tinuous working to constant load).

ACCESSORIES

• Inlet and outlet protection guard according to

UNI 10615.

• Anti-vibration joint in PVC for inlet and outlet

sides.

• Gravity shutter.

• Manual setting shutter.

UPON REQUEST

• Version with casing in PP, Polypropylene (PR-

AC/PP).

• Version with casing in PER, anti-static and

self-extinguishing polyethylene (PR-AC/PER).

• Version with motor support in stainless steel

AISI304.

• ATEX version according to Directive 94/9/CE

and 2014/34/UE. See Catalogue 2 ATEX Range.

Abbinamento a regolatori di velocità / Speed regulators pairing - Pag. 302

Collegamenti elettrici / Wiring diagrams - Pag. 320

ORIENTAMENTI Discharge angles

PR-AC

N.B.: Orientamento standard LG270°

Standard discharge angles LG 270°

Rotazione

Rotation

RD

Forma/Form

Rotazione

Rotation

LG

0

45°

90°

135°

270°

315°

sez.

1

.9

269
