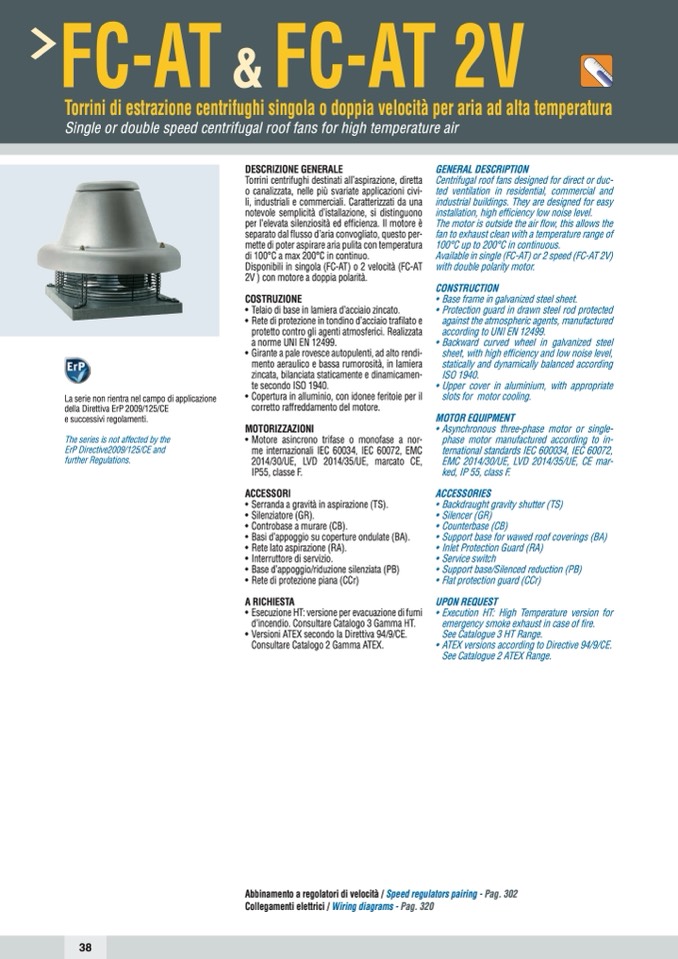

FC-AT

&

FC-AT 2V

Torrini di estrazione centrifughi singola o doppia velocit

à per aria ad alta temperatura

Single or double speed centrifugal roof fans for high temperature air

La serie non rientra nel campo di applicazione

della Direttiva ErP 2009/125/CE

e successivi regolamenti.

The series is not affected by the

ErP Directive2009/125/CE and

further Regulations.

DESCRIZIONE GENERALE

Torrini centrifughi destinati all’aspirazione, diretta

o canalizzata, nelle più svariate applicazioni civi-

li, industriali e commerciali. Caratterizzati da una

notevole semplicità d’istallazione, si distinguono

per l’elevata silenziosità ed efficienza. Il motore è

separato dal flusso d’aria convogliato, questo per-

mette di poter aspirare aria pulita con temperatura

di 100°C a max 200°C in continuo.

Disponibili in singola (FC-AT) o 2 velocità (FC-AT

2V ) con motore a doppia polarità.

COSTRUZIONE

• Telaio di base in lamiera d’acciaio zincato.

• Rete di protezione in tondino d’acciaio trafilato e

protetto contro gli agenti atmosferici. Realizzata

a norme UNI EN 12499.

• Girante a pale rovesce autopulenti, ad alto rendi-

mento aeraulico e bassa rumorosità, in lamiera

zincata, bilanciata staticamente e dinamicamen-

te secondo ISO 1940.

• Copertura in alluminio, con idonee feritoie per il

corretto raffreddamento del motore.

MOTORIZZAZIONI

• Motore asincrono trifase o monofase a nor-

me internazionali IEC 60034, IEC 60072, EMC

2014/30/UE, LVD 2014/35/UE, marcato CE,

IP55, classe F.

ACCESSORI

• Serranda a gravità in aspirazione (TS).

• Silenziatore (GR).

• Controbase a murare (CB).

• Basi d’appoggio su coperture ondulate (BA).

• Rete lato aspirazione (RA).

• Interruttore di servizio.

• Base d’appoggio/riduzione silenziata (PB)

• Rete di protezione piana (CCr)

A RICHIESTA

• Esecuzione HT: versione per evacuazione di fumi

d’incendio. Consultare Catalogo 3 Gamma HT.

• Versioni ATEX secondo la Direttiva 94/9/CE.

Consultare Catalogo 2 Gamma ATEX.

GENERAL DESCRIPTION

Centrifugal roof fans designed for direct or duc-

ted ventilation in residential, commercial and

industrial buildings. They are designed for easy

installation, high efficiency low noise level.

The motor is outside the air flow, this allows the

fan to exhaust clean with a temperature range of

100°C up to 200°C in continuous.

Available in single (FC-AT) or 2 speed (FC-AT 2V)

with double polarity motor.

CONSTRUCTION

• Base frame in galvanized steel sheet.

• Protection guard in drawn steel rod protected

against the atmospheric agents, manufactured

according to UNI EN 12499.

• Backward curved wheel in galvanized steel

sheet, with high efficiency and low noise level,

statically and dynamically balanced according

ISO 1940.

• Upper cover in aluminium, with appropriate

slots for motor cooling.

MOTOR EQUIPMENT

• Asynchronous three-phase motor or single-

phase motor manufactured according to in-

ternational standards IEC 600034, IEC 60072,

EMC 2014/30/UE, LVD 2014/35/UE, CE mar-

ked, IP 55, class F.

ACCESSORIES

• Backdraught gravity shutter (TS)

• Silencer (GR)

• Counterbase (CB)

• Support base for wawed roof coverings (BA)

• Inlet Protection Guard (RA)

• Service switch

• Support base/Silenced reduction (PB)

• Flat protection guard (CCr)

UPON REQUEST

• Execution HT: High Temperature version for

emergency smoke exhaust in case of fire.

See Catalogue 3 HT Range.

• ATEX versions according to Directive 94/9/CE.

See Catalogue 2 ATEX Range.

Abbinamento a regolatori di velocità / Speed regulators pairing - Pag. 302

Collegamenti elettrici / Wiring diagrams - Pag. 320
