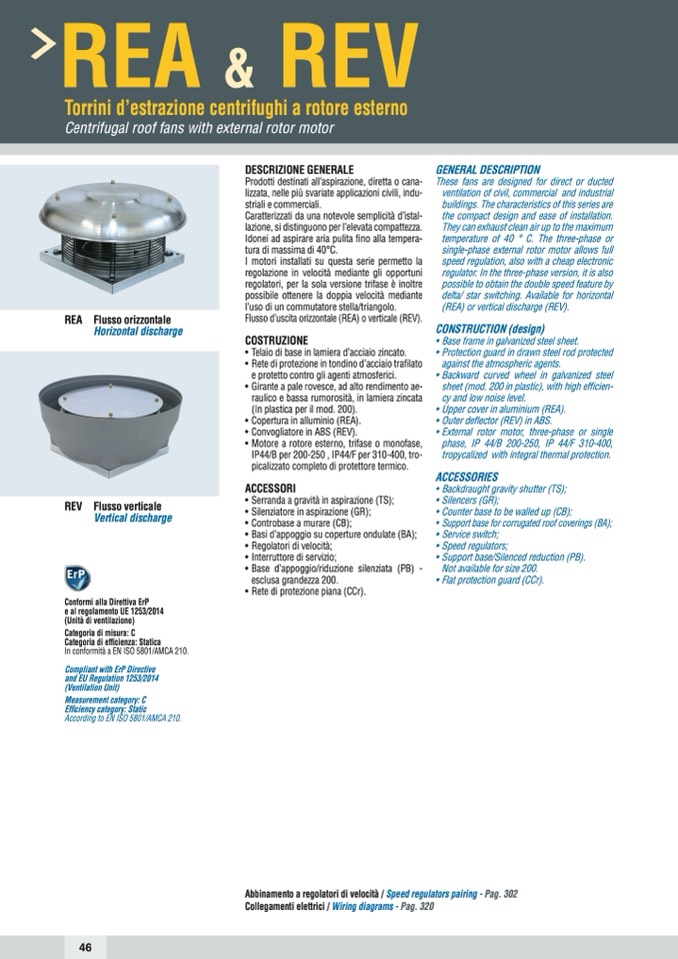

REA

&

REV

Torrini d’estrazione centrifughi a rotore esterno

Centrifugal roof fans with external rotor motor

REA Flusso orizzontale

Horizontal discharge

DESCRIZIONE GENERALE

Prodotti destinati all’aspirazione, diretta o cana-

lizzata, nelle più svariate applicazioni civili, indu-

striali e commerciali.

Caratterizzati da una notevole semplicità d’istal-

lazione, si distinguono per l’elevata compattezza.

Idonei ad aspirare aria pulita fino alla tempera-

tura di massima di 40°C.

I motori installati su questa serie permetto la

regolazione in velocità mediante gli opportuni

regolatori, per la sola versione trifase è inoltre

possibile ottenere la doppia velocità mediante

l’uso di un commutatore stella/triangolo.

Flusso d’uscita orizzontale (REA) o verticale (REV).

COSTRUZIONE

• Telaio di base in lamiera d’acciaio zincato.

• Rete di protezione in tondino d’acciaio trafilato

e protetto contro gli agenti atmosferici.

• Girante a pale rovesce, ad alto rendimento ae-

raulico e bassa rumorosità, in lamiera zincata

(In plastica per il mod. 200).

• Copertura in alluminio (REA).

• Convogliatore in ABS (REV).

• Motore a rotore esterno, trifase o monofase,

IP44/B per 200-250 , IP44/F per 310-400, tro-

picalizzato completo di protettore termico.

ACCESSORI

• Serranda a gravità in aspirazione (TS);

• Silenziatore in aspirazione (GR);

• Controbase a murare (CB);

• Basi d’appoggio su coperture ondulate (BA);

• Regolatori di velocità;

• Interruttore di servizio;

• Base d’appoggio/riduzione silenziata (PB) -

esclusa grandezza 200.

• Rete di protezione piana (CCr).

GENERAL DESCRIPTION

These fans are designed for direct or ducted

ventilation of civil, commercial and industrial

buildings. The characteristics of this series are

the compact design and ease of installation.

They can exhaust clean air up to the maximum

temperature of 40 ° C. The three-phase or

single-phase external rotor motor allows full

speed regulation, also with a cheap electronic

regulator. In the three-phase version, it is also

possible to obtain the double speed feature by

delta/ star switching. Available for horizontal

(REA) or vertical discharge (REV).

CONSTRUCTION (design)

• Base frame in galvanized steel sheet.

• Protection guard in drawn steel rod protected

against the atmospheric agents.

• Backward curved wheel in galvanized steel

sheet (mod. 200 in plastic), with high efficien-

cy and low noise level.

• Upper cover in aluminium (REA).

• Outer deflector (REV) in ABS.

• External rotor motor, three-phase or single

phase, IP 44/B 200-250, IP 44/F 310-400,

tropycalized with integral thermal protection.

ACCESSORIES

• Backdraught gravity shutter (TS);

• Silencers (GR);

• Counter base to be walled up (CB);

• Support base for corrugated roof coverings (BA);

• Service switch;

• Speed regulators;

• Support base/Silenced reduction (PB).

Not available for size 200.

• Flat protection guard (CCr).

REV Flusso verticale

Vertical discharge

Conformi alla Direttiva ErP

e al regolamento UE 1253/2014

(Unità di ventilazione)

Categoria di misura: C

Categoria di efficienza: Statica

In conformità a EN ISO 5801/AMCA 210.

Compliant with ErP Directive

and EU Regulation 1253/2014

(Ventilation Unit)

Measurement category: C

Efficiency category: Static

According to EN ISO 5801/AMCA 210.

Abbinamento a regolatori di velocità / Speed regulators pairing - Pag. 302

Collegamenti elettrici / Wiring diagrams - Pag. 320
