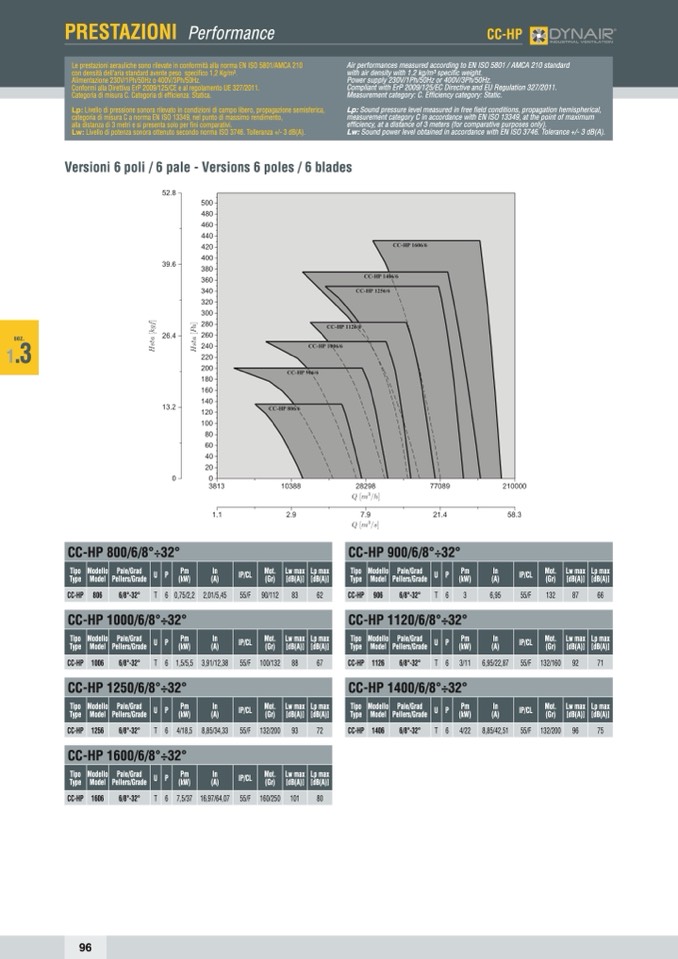

PRESTAZIONI Performance
Le prestazioni aerauliche sono rilevate in conformità alla norma EN ISO 5801/AMCA 210
con densità dell’aria standard avente peso specifico 1,2 Kg/m3.
Alimentazione 230V/1Ph/50Hz o 400V/3Ph/50Hz.
Conformi alla Direttiva ErP 2009/125/CE e al regolamento UE 327/2011.
Categoria di misura C. Categoria di efficienza: Statica.
Lp: Livello di pressione sonora rilevato in condizioni di campo libero, propagazione semisferica,
categoria di misura C a norma EN ISO 13349, nel punto di massimo rendimento,
alla distanza di 3 metri e si presenta solo per fini comparativi.
Lw: Livello di potenza sonora ottenuto secondo norma ISO 3746. Tolleranza +/- 3 dB(A).
CC-HP
Versioni 6 poli / 6 pale - Versions 6 poles / 6 blades
CC-HP 800/6/8°÷32°
Tipo Modello Pale/Grad
U P
Pm
In
Type Model Pellers/Grade
(kW)
(A)
IP/CL
Mot. Lw max
(Gr) [dB(A)]
Lp max
[dB(A)]
CC-HP 900/6/8°÷32°
Tipo Modello Pale/Grad
U P
Pm
In
Type Model Pellers/Grade
(kW)
(A)
IP/CL
Mot. Lw max
(Gr) [dB(A)]
Lp max
[dB(A)]
CC-HP 806
6/8°-32°
T 6 0,75/2,2 2,01/5,45
55/F 90/112
83
62
CC-HP 906
6/8°-32°
T 6
3
6,95
55/F
132
87
66
CC-HP 1000/6/8°÷32°
Tipo Modello Pale/Grad
U P
Pm
In
Type Model Pellers/Grade
(kW)
(A)
IP/CL
Mot. Lw max
(Gr) [dB(A)]
Lp max
[dB(A)]
CC-HP 1120/6/8°÷32°
Tipo Modello Pale/Grad
U P
Pm
In
IP/CL
Mot. Lw max Lp max
Type Model Pellers/Grade
(kW)
(A)
(Gr) [dB(A)] [dB(A)]
CC-HP 1006
6/8°-32°
T 6 1,5/5,5 3,91/12,38 55/F 100/132 88
67
CC-HP 1126
6/8°-32°
T 6 3/11 6,95/22,87 55/F 132/160 92
71
CC-HP 1250/6/8°÷32°
Tipo Modello Pale/Grad
U P
Pm
In
Type Model Pellers/Grade
(kW)
(A)
IP/CL
Mot. Lw max
(Gr) [dB(A)]
Lp max
[dB(A)]
CC-HP 1400/6/8°÷32°
Tipo Modello Pale/Grad
U P
Pm
In
IP/CL
Mot. Lw max Lp max
Type Model Pellers/Grade
(kW)
(A)
(Gr) [dB(A)] [dB(A)]
CC-HP 1256
6/8°-32°
T 6 4/18,5 8,85/34,33 55/F 132/200 93
72
CC-HP 1406
6/8°-32°
T 6 4/22 8,85/42,51 55/F 132/200 96
75
CC-HP 1600/6/8°÷32°
Tipo Modello Pale/Grad
Type Model Pellers/Grade
CC-HP 1606
6/8°-32°
U P
T 6
Pm
In
(kW)
(A)
7,5/37 16,97/64,07
IP/CL
Mot. Lw max
(Gr) [dB(A)]
55/F 160/250 101
Lp max
[dB(A)]
80
96
Air performances measured according to EN ISO 5801 / AMCA 210 standard
with air density with 1.2 kg/m3 specific weight.
Power supply 230V/1Ph/50Hz or 400V/3Ph/50Hz.
Compliant with ErP 2009/125/EC Directive and EU Regulation 327/2011.
Measurement category: C. Efficiency category: Static.
Lp: Sound pressure level measured in free field conditions, propagation hemispherical,
measurement category C in accordance with EN ISO 13349, at the point of maximum
efficiency, at a distance of 3 meters (for comparative purposes only).
Lw: Sound power level obtained in accordance with EN ISO 3746. Tolerance +/- 3 dB(A).
