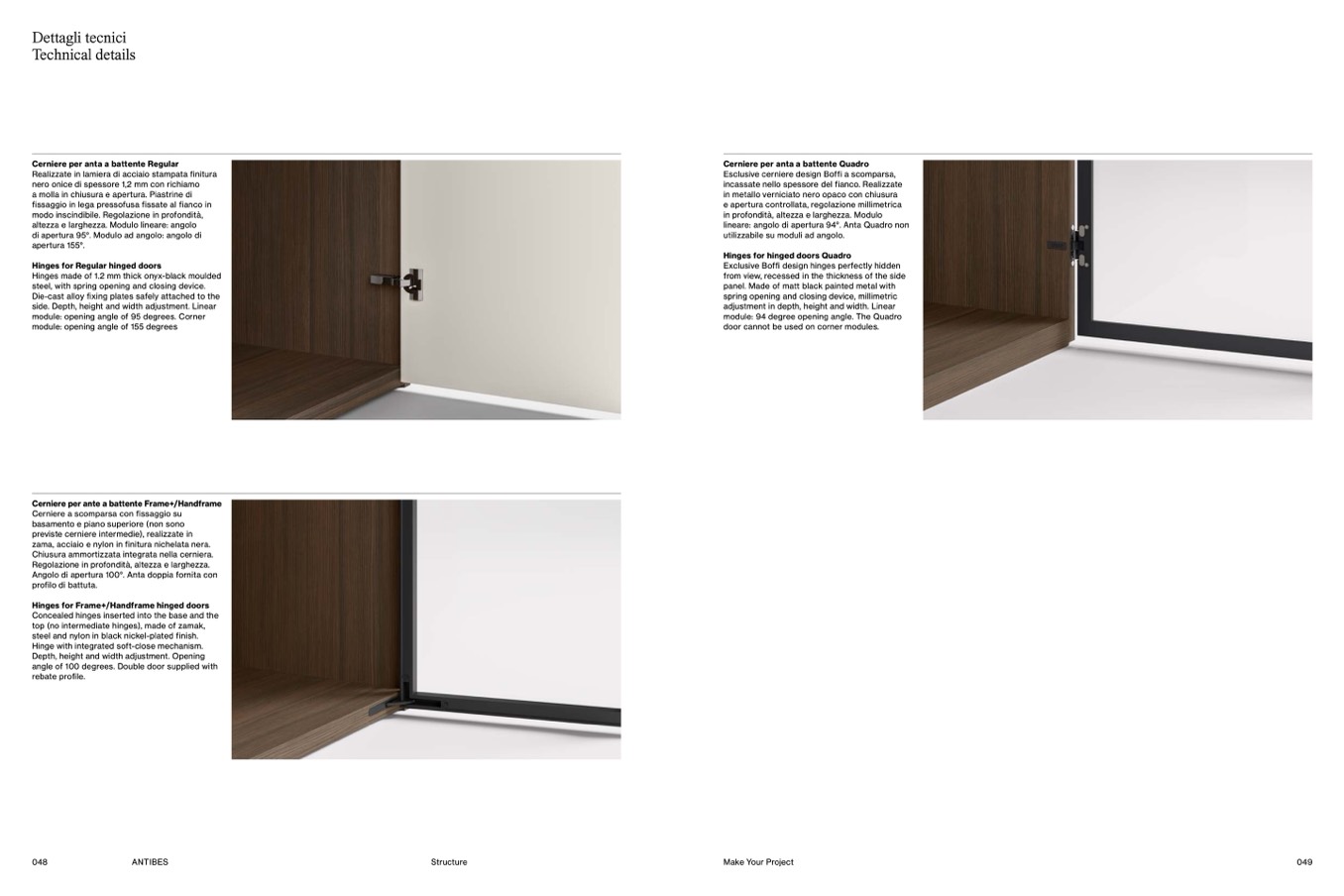

Dettagli tecnici

Technical details

Cerniere per anta a battente Regular

Realizzate in lamiera di acciaio stampata finitura

nero onice di spessore 1,2 mm con richiamo

a molla in chiusura e apertura. Piastrine di

fissaggio in lega pressofusa fissate al fianco in

modo inscindibile. Regolazione in profondità,

altezza e larghezza. Modulo lineare: angolo

di apertura 95°. Modulo ad angolo: angolo di

apertura 155°.

Hinges for Regular hinged doors

Hinges made of 1.2 mm thick onyx-black moulded

steel, with spring opening and closing device.

Die-cast alloy fixing plates safely attached to the

side. Depth, height and width adjustment. Linear

module: opening angle of 95 degrees. Corner

module: opening angle of 155 degrees

Cerniere per anta a battente Quadro

Esclusive cerniere design Boffi a scomparsa,

incassate nello spessore del fianco. Realizzate

in metallo verniciato nero opaco con chiusura

e apertura controllata, regolazione millimetrica

in profondit

à, altezza e larghezza. Modulo

lineare: angolo di apertura 94°. Anta Quadro non

utilizzabile su moduli ad angolo.

Hinges for hinged doors Quadro

Exclusive Boffi design hinges perfectly hidden

from view, recessed in the thickness of the side

panel. Made of matt black painted metal with

spring opening and closing device, millimetric

adjustment in depth, height and width. Linear

module: 94 degree opening angle. The Quadro

door cannot be used on corner modules.

Cerniere per ante a battente Frame+/Handframe

Cerniere a scomparsa con fissaggio su

basamento e piano superiore (non sono

previste cerniere intermedie), realizzate in

zama, acciaio e nylon in finitura nichelata nera.

Chiusura ammortizzata integrata nella cerniera.

Regolazione in profondit

à, altezza e larghezza.

Angolo di apertura 100°. Anta doppia fornita con

profilo di battuta.

Hinges for Frame+/Handframe hinged doors

Concealed hinges inserted into the base and the

top (no intermediate hinges), made of zamak,

steel and nylon in black nickel-plated finish.

Hinge with integrated soft-close mechanism.

Depth, height and width adjustment. Opening

angle of 100 degrees. Double door supplied with

rebate profile.
