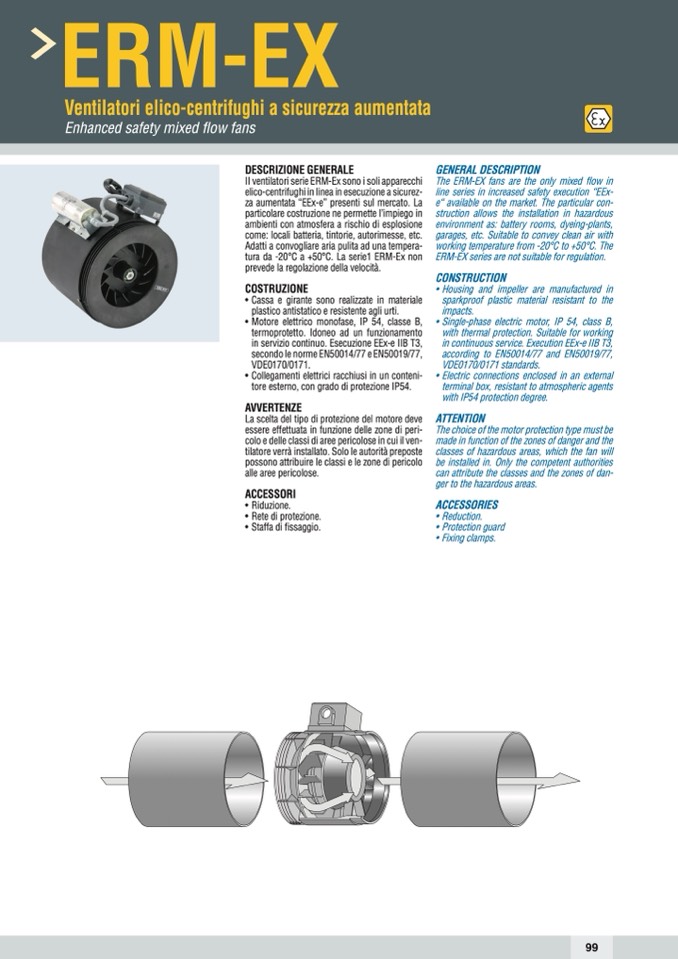

ERM-EX

Ventilatori elico-centrifughi a sicurezza aumentata

Enhanced safety mixed flow fans

DESCRIZIONE GENERALE

II ventilatori serie ERM-Ex sono i soli apparecchi

elico-centrifughi in linea in esecuzione a sicurez-

za aumentata “EEx-e” presenti sul mercato. La

particolare costruzione ne permette l’impiego in

ambienti con atmosfera a rischio di esplosione

come: locali batteria, tintorie, autorimesse, etc.

Adatti a convogliare aria pulita ad una tempera-

tura da -20°C a +50°C. La serie1 ERM-Ex non

prevede la regolazione della velocità.

COSTRUZIONE

• Cassa e girante sono realizzate in materiale

plastico antistatico e resistente agli urti.

• Motore elettrico monofase, IP 54, classe B,

termoprotetto. Idoneo ad un funzionamento

in servizio continuo. Esecuzione EEx-e IIB T3,

secondo le norme EN50014/77 e EN50019/77,

VDE0170/0171.

• Collegamenti elettrici racchiusi in un conteni-

tore esterno, con grado di protezione IP54.

AVVERTENZE

La scelta del tipo di protezione del motore deve

essere effettuata in funzione delle zone di peri-

colo e delle classi di aree pericolose in cui il ven-

tilatore verrà installato. Solo le autorità preposte

possono attribuire le classi e le zone di pericolo

alle aree pericolose.

ACCESSORI

• Riduzione.

• Rete di protezione.

• Staffa di fissaggio.

GENERAL DESCRIPTION

The ERM-EX fans are the only mixed flow in

line series in increased safety execution “EEx-

e“ available on the market. The particular con-

struction allows the installation in hazardous

environment as: battery rooms, dyeing-plants,

garages, etc. Suitable to convey clean air with

working temperature from -20°C to +50°C. The

ERM-EX series are not suitable for regulation.

CONSTRUCTION

• Housing and impeller are manufactured in

sparkproof plastic material resistant to the

impacts.

• Single-phase electric motor, IP 54, class B,

with thermal protection. Suitable for working

in continuous service. Execution EEx-e IIB T3,

according to EN50014/77 and EN50019/77,

VDE0170/0171 standards.

• Electric connections enclosed in an external

terminal box, resistant to atmospheric agents

with IP54 protection degree.

ATTENTION

The choice of the motor protection type must be

made in function of the zones of danger and the

classes of hazardous areas, which the fan will

be installed in. Only the competent authorities

can attribute the classes and the zones of dan-

ger to the hazardous areas.

ACCESSORIES

• Reduction.

• Protection guard

• Fixing clamps.
