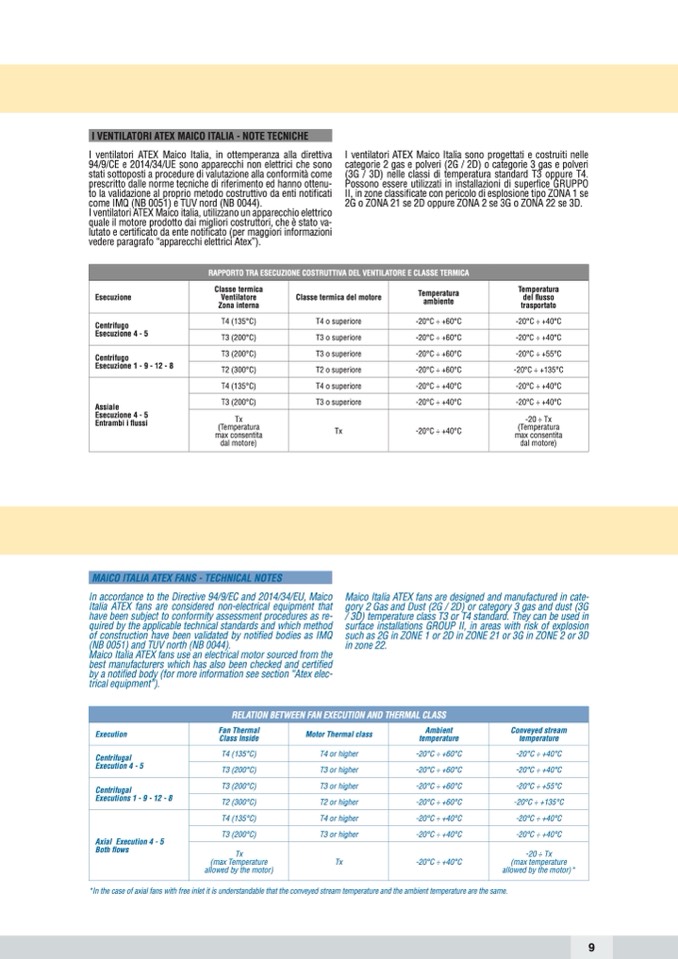

I VENTILATORI ATEX MAICO ITALIA - NOTE TECNICHE

I ventilatori ATEX Maico Italia, in ottemperanza alla direttiva

94/9/CE e 2014/34/UE sono apparecchi non elettrici che sono

stati sottoposti a procedure di valutazione alla conformità come

prescritto dalle norme tecniche di riferimento ed hanno ottenu-

to la validazione al proprio metodo costruttivo da enti notificati

comeIMQ(NB0051)eTUVnord(NB0044).

I ventilatori ATEX Maico Italia sono progettati e costruiti nelle

categorie 2 gas e polveri (2G / 2D) o categorie 3 gas e polveri

(3G / 3D) nelle classi di temperatura standard T3 oppure T4.

Possono essere utilizzati in installazioni di superfice GRUPPO

II, in zone classificate con pericolo di esplosione tipo ZONA 1 se

2GoZONA21se2DoppureZONA2se3GoZONA22se3D.

I ventilatori ATEX Maico italia, utilizzano un apparecchio elettrico

quale il motore prodotto dai migliori costruttori, che è stato va-

lutato e certificato da ente notificato (per maggiori informazioni

vedere paragrafo “apparecchi elettrici Atex”).

RAPPORTO TRA ESECUZIONE COSTRUTTIVA DEL VENTILATORE E CLASSE TERMICA

Esecuzione

Classe termica

Ventilatore

Zona interna

Classe termica del motore

Temperatura

ambiente

Temperatura

del flusso

trasportato

Centrifugo

Esecuzione 4 - 5

T4 (135°C) T4 o superiore -20°C ÷ +60°C -20°C ÷ +40°C

T3 (200°C) T3 o superiore -20°C ÷ +60°C -20°C ÷ +40°C

Centrifugo

Esecuzione 1 - 9 - 12 - 8

T3 (200°C) T3 o superiore -20°C ÷ +60°C -20°C ÷ +55°C

T2 (300°C) T2 o superiore -20°C ÷ +60°C -20°C ÷ +135°C

Assiale

Esecuzione 4 - 5

Entrambi i flussi

T4 (135°C) T4 o superiore -20°C ÷ +40°C -20°C ÷ +40°C

T3 (200°C) T3 o superiore -20°C ÷ +40°C -20°C ÷ +40°C

Tx

(Temperatura

max consentita

dal motore)

Tx -20°C ÷ +40°C

-20 ÷ Tx

(Temperatura

max consentita

dal motore)

MAICO ITALIA ATEX FANS - TECHNICAL NOTES

In accordance to the Directive 94/9/EC and 2014/34/EU, Maico

Italia ATEX fans are considered non-electrical equipment that

have been subject to conformity assessment procedures as re-

quired by the applicable technical standards and which method

of construction have been validated by notified bodies as IMQ

(NB 0051) and TUV north (NB 0044).

Maico Italia ATEX fans are designed and manufactured in cate-

gory 2 Gas and Dust (2G / 2D) or category 3 gas and dust (3G

/ 3D) temperature class T3 or T4 standard. They can be used in

surface installations GROUP II, in areas with risk of explosion

suchas2GinZONE1or2DinZONE21or3GinZONE2or3D

in zone 22.

Maico Italia ATEX fans use an electrical motor sourced from the

best manufacturers which has also been checked and certified

by a notified body (for more information see section “Atex elec-

trical equipment”).

RELATION BETWEEN FAN EXECUTION AND THERMAL CLASS

Execution

Fan Thermal

Class Inside

Motor Thermal class

Ambient

temperature

Conveyed stream

temperature

Centrifugal

Execution 4 - 5

T4 (135°C) T4 or higher -20°C ÷ +60°C -20°C ÷ +40°C

T3 (200°C) T3 or higher -20°C ÷ +60°C -20°C ÷ +40°C

Centrifugal

Executions 1 - 9 - 12 - 8

T3 (200°C) T3 or higher -20°C ÷ +60°C -20°C ÷ +55°C

T2 (300°C) T2 or higher -20°C ÷ +60°C -20°C ÷ +135°C

Axial Execution 4 - 5

Both flows

T4 (135°C) T4 or higher -20°C ÷ +40°C -20°C ÷ +40°C

T3 (200°C) T3 or higher -20°C ÷ +40°C -20°C ÷ +40°C

Tx

(max Temperature

allowed by the motor)

Tx -20°C ÷ +40°C

-20 ÷ Tx

(max temperature

allowed by the motor)*

*In the case of axial fans with free inlet it is understandable that the conveyed stream temperature and the ambient temperature are the same.
