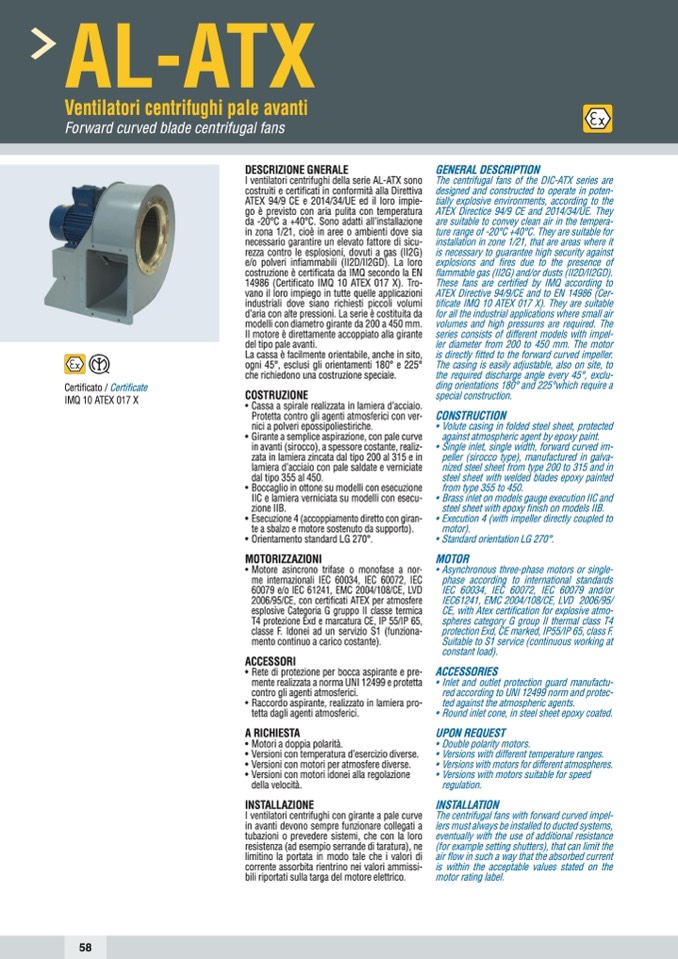

AL-ATX

Ventilatori centrifughi pale avanti

Forward curved blade centrifugal fans

Certificato / Certificate

IMQ 10 ATEX 017 X

DESCRIZIONE GNERALE

I ventilatori centrifughi della serie AL-ATX sono

costruiti e certificati in conformità alla Direttiva

ATEX 94/9 CE e 2014/34/UE ed il loro impie-

go è previsto con aria pulita con temperatura

da -20°C a +40°C. Sono adatti all’installazione

in zona 1/21, cioè in aree o ambienti dove sia

necessario garantire un elevato fattore di sicu-

rezza contro le esplosioni, dovuti a gas (II2G)

e/o polveri infiammabili (II2D/II2GD). La loro

costruzione è certificata da IMQ secondo la EN

14986 (Certificato IMQ 10 ATEX 017 X). Tro-

vano il loro impiego in tutte quelle applicazioni

industriali dove siano richiesti piccoli volumi

d’aria con alte pressioni. La serie è costituita da

modelli con diametro girante da 200 a 450 mm.

Il motore è direttamente accoppiato alla girante

del tipo pale avanti.

La cassa è facilmente orientabile, anche in sito,

ogni 45°, esclusi gli orientamenti 180° e 225°

che richiedono una costruzione speciale.

COSTRUZIONE

• Cassa a spirale realizzata in lamiera d’acciaio.

Protetta contro gli agenti atmosferici con ver-

nici a polveri epossipoliestiriche.

• Girante a semplice aspirazione, con pale curve

in avanti (sirocco), a spessore costante, realiz-

zata in lamiera zincata dal tipo 200 al 315 e in

lamiera d’acciaio con pale saldate e verniciate

dal tipo 355 al 450.

• Boccaglio in ottone su modelli con esecuzione

IIC e lamiera verniciata su modelli con esecu-

zione IIB.

• Esecuzione 4 (accoppiamento diretto con giran-

te a sbalzo e motore sostenuto da supporto).

• Orientamento standard LG 270°.

MOTORIZZAZIONI

• Motore asincrono trifase o monofase a nor-

me internazionali IEC 60034, IEC 60072, IEC

60079 e/o IEC 61241, EMC 2004/108/CE, LVD

2006/95/CE, con certificati ATEX per atmosfere

esplosive Categoria G gruppo II classe termica

T4 protezione Exd e marcatura CE, IP 55/IP 65,

classe F. Idonei ad un servizio S1 (funziona-

mento continuo a carico costante).

ACCESSORI

• Rete di protezione per bocca aspirante e pre-

mente realizzata a norma UNI 12499 e protetta

contro gli agenti atmosferici.

• Raccordo aspirante, realizzato in lamiera pro-

tetta dagli agenti atmosferici.

A RICHIESTA

• Motori a doppia polarità.

• Versioni con temperatura d’esercizio diverse.

• Versioni con motori per atmosfere diverse.

• Versioni con motori idonei alla regolazione

della velocità.

INSTALLAZIONE

I ventilatori centrifughi con girante a pale curve

in avanti devono sempre funzionare collegati a

tubazioni o prevedere sistemi, che con la loro

resistenza (ad esempio serrande di taratura), ne

limitino la portata in modo tale che i valori di

corrente assorbita rientrino nei valori ammissi-

bili riportati sulla targa del motore elettrico.

GENERAL DESCRIPTION

The centrifugal fans of the DIC-ATX series are

designed and constructed to operate in poten-

tially explosive environments, according to the

ATEX Directice 94/9 CE and 2014/34/UE. They

are suitable to convey clean air in the tempera-

ture range of -20°C +40°C. They are suitable for

installation in zone 1/21, that are areas where it

is necessary to guarantee high security against

explosions and fires due to the presence of

flammable gas (II2G) and/or dusts (II2D/II2GD).

These fans are certified by IMQ according to

ATEX Directive 94/9/CE and to EN 14986 (Cer-

tificate IMQ 10 ATEX 017 X). They are suitable

for all the industrial applications where small air

volumes and high pressures are required. The

series consists of different models with impel-

ler diameter from 200 to 450 mm. The motor

is directly fitted to the forward curved impeller.

The casing is easily adjustable, also on site, to

the required discharge angle every 45°, exclu-

ding orientations 180° and 225°which require a

special construction.

CONSTRUCTION

• Volute casing in folded steel sheet, protected

against atmospheric agent by epoxy paint.

• Single inlet, single width, forward curved im-

peller (sirocco type), manufactured in galva-

nized steel sheet from type 200 to 315 and in

steel sheet with welded blades epoxy painted

from type 355 to 450.

• Brass inlet on models gauge execution IIC and

steel sheet with epoxy finish on models IIB.

• Execution 4 (with impeller directly coupled to

motor).

• Standard orientation LG 270°.

MOTOR

• Asynchronous three-phase motors or single-

phase according to international standards

IEC 60034, IEC 60072, IEC 60079 and/or

IEC61241, EMC 2004/108/CE, LVD 2006/95/

CE, with Atex certification for explosive atmo-

spheres category G group II thermal class T4

protection Exd, CE marked, IP55/IP 65, class F.

Suitable to S1 service (continuous working at

constant load).

ACCESSORIES

• Inlet and outlet protection guard manufactu-

red according to UNI 12499 norm and protec-

ted against the atmospheric agents.

• Round inlet cone, in steel sheet epoxy coated.

UPON REQUEST

• Double polarity motors.

• Versions with different temperature ranges.

• Versions with motors for different atmospheres.

• Versions with motors suitable for speed

regulation.

INSTALLATION

The centrifugal fans with forward curved impel-

lers must always be installed to ducted systems,

eventually with the use of additional resistance

(for example setting shutters), that can limit the

air flow in such a way that the absorbed current

is within the acceptable values stated on the

motor rating label.
