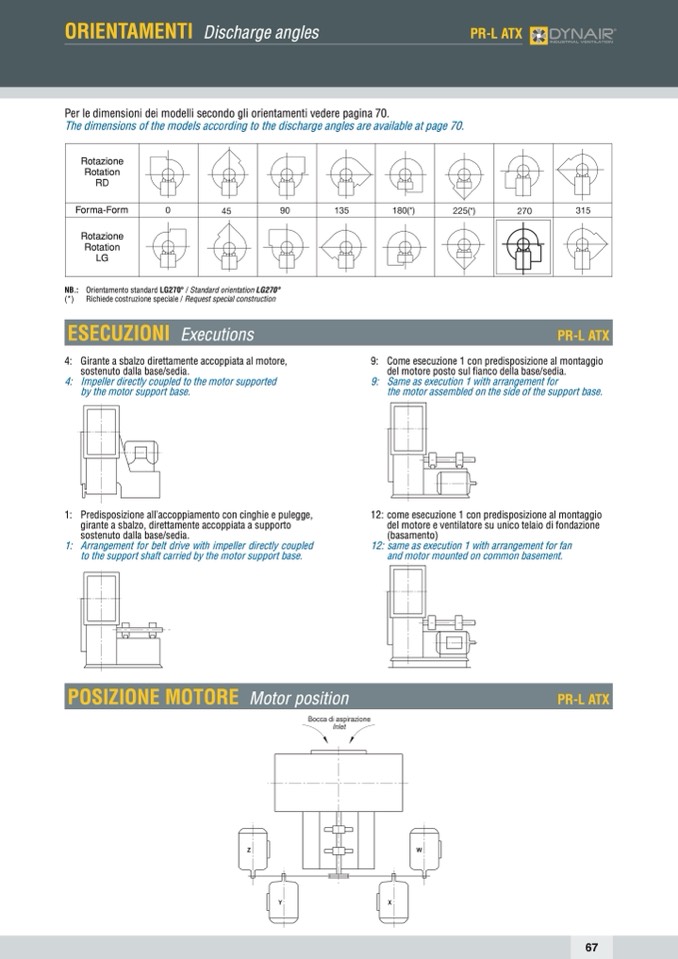

ORIENTAMENTI Discharge angles

PR-L ATX

Per le dimensioni dei modelli secondo gli orientamenti vedere pagina 70.

The dimensions of the models according to the discharge angles are available at page 70.

Rotazione

Rotation

RD

Forma-Form

Rotazione

Rotation

LG

ESECUZIONI Executions

4: Girante a sbalzo direttamente accoppiata al motore,

sostenuto dalla base/sedia.

4: Impeller directly coupled to the motor supported

by the motor support base.

1: Predisposizione all’accoppiamento con cinghie e pulegge,

girante a sbalzo, direttamente accoppiata a supporto

sostenuto dalla base/sedia.

1: Arrangement for belt drive with impeller directly coupled

to the support shaft carried by the motor support base.

POSIZIONE MOTORE Motor position

Altezza-Height

NB.: Orientamento standard LG270° / Standard orientation LG270°

(*) Richiede costruzione speciale / Request special construction

PR-L ATX

9: Come esecuzione 1 con predisposizione al montaggio

del motore posto sul fianco della base/sedia.

9: Same as execution 1 with arrangement for

the motor assembled on the side of the support base.

12: come esecuzione 1 con predisposizione al montaggio

del motore e ventilatore su unico telaio di fondazione

(basamento)

12: same as execution 1 with arrangement for fan

and motor mounted on common basement.

PR-L ATX

67
