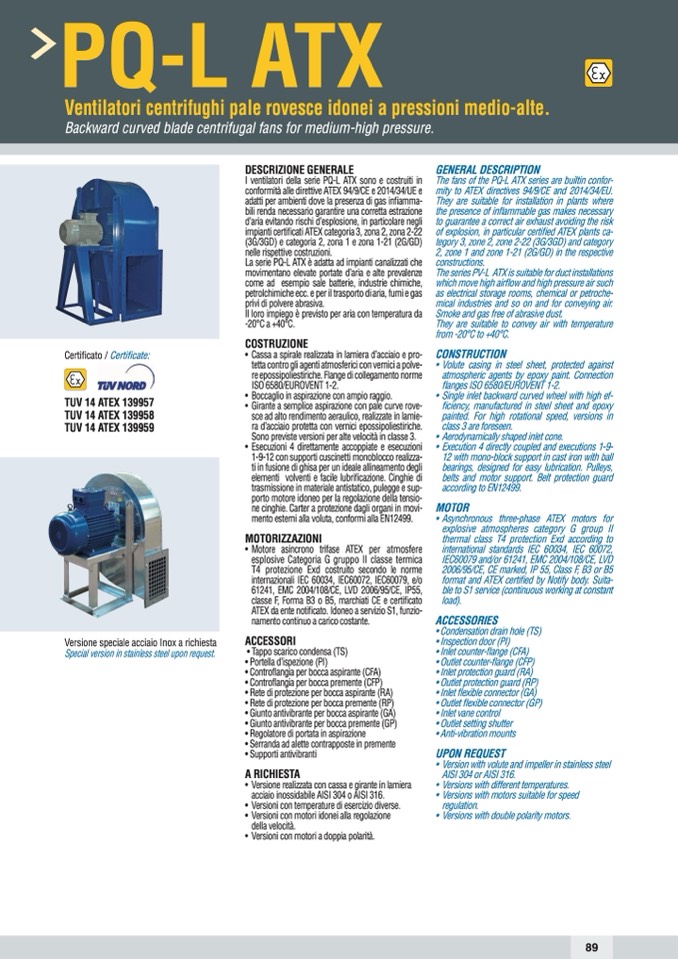

PQ-L ATX

Ventilatori centrifughi pale rovesce idonei a pressioni medio-alte.

Backward curved blade centrifugal fans for medium-high pressure.

Certificato / Certificate:

TUV 14 ATEX 139957

TUV 14 ATEX 139958

TUV 14 ATEX 139959

DESCRIZIONE GENERALE

I ventilatori della serie PQ-L ATX sono e costruiti in

conformità alle direttive ATEX 94/9/CE e 2014/34/UE e

adatti per ambienti dove la presenza di gas infiamma-

bili renda necessario garantire una corretta estrazione

d’aria evitando rischi d’esplosione, in particolare negli

impianti certificati ATEX categoria 3, zona 2, zona 2-22

(3G/3GD) e categoria 2, zona 1 e zona 1-21 (2G/GD)

nelle rispettive costruzioni.

La serie PQ-L ATX è adatta ad impianti canalizzati che

movimentano elevate portate d’aria e alte prevalenze

come ad esempio sale batterie, industrie chimiche,

petrolchimiche ecc. e per il trasporto di aria, fumi e gas

privi di polvere abrasiva.

Il loro impiego è previsto per aria con temperatura da

-20°C a +40°C.

COSTRUZIONE

• Cassa a spirale realizzata in lamiera d’acciaio e pro-

tetta contro gli agenti atmosferici con vernici a polve-

re epossipoliestiriche. Flange di collegamento norme

ISO 6580/EUROVENT 1-2.

• Boccaglio in aspirazione con ampio raggio.

• Girante a semplice aspirazione con pale curve rove-

sce ad alto rendimento aeraulico, realizzate in lamie-

ra d’acciaio protetta con vernici epossipoliestiriche.

Sono previste versioni per alte velocità in classe 3.

• Esecuzioni 4 direttamente accoppiate e esecuzioni

1-9-12 con supporti cuscinetti monoblocco realizza-

ti in fusione di ghisa per un ideale allineamento degli

elementi volventi e facile lubrificazione. Cinghie di

trasmissione in materiale antistatico, pulegge e sup-

porto motore idoneo per la regolazione della tensio-

ne cinghie. Carter a protezione dagli organi in movi-

mento esterni alla voluta, conformi alla EN12499.

MOTORIZZAZIONI

• Motore asincrono trifase ATEX per atmosfere

esplosive Categoria G gruppo II classe termica

T4 protezione Exd costruito secondo le norme

internazionali IEC 60034, IEC60072, IEC60079, e/o

61241, EMC 2004/108/CE, LVD 2006/95/CE, IP55,

classe F, Forma B3 o B5, marchiati CE e certificato

ATEX da ente notificato. Idoneo a servizio S1, funzio-

namento continuo a carico costante.

ACCESSORI

• Tappo scarico condensa (TS)

• Portella d’ispezione (PI)

• Controflangia per bocca aspirante (CFA)

• Controflangia per bocca premente (CFP)

• Rete di protezione per bocca aspirante (RA)

• Rete di protezione per bocca premente (RP)

• Giunto antivibrante per bocca aspirante (GA)

• Giunto antivibrante per bocca premente (GP)

• Regolatore di portata in aspirazione

• Serranda ad alette contrapposte in premente

• Supporti antivibranti

A RICHIESTA

• Versione realizzata con cassa e girante in lamiera

acciaio inossidabile AISI 304 o AISI 316.

• Versioni con temperature di esercizio diverse.

• Versioni con motori idonei alla regolazione

della velocità.

• Versioni con motori a doppia polarità.

GENERAL DESCRIPTION

The fans of the PQ-L ATX series are builtin confor-

mity to ATEX directives 94/9/CE and 2014/34/EU.

They are suitable for installation in plants where

the presence of inflammable gas makes necessary

to guarantee a correct air exhaust avoiding the risk

of explosion, in particular certified ATEX plants ca-

tegory 3, zone 2, zone 2-22 (3G/3GD) and category

2, zone 1 and zone 1-21 (2G/GD) in the respective

constructions.

The series PV-L ATX is suitable for duct installations

which move high airflow and high pressure air such

as electrical storage rooms, chemical or petroche-

mical industries and so on and for conveying air.

Smoke and gas free of abrasive dust.

They are suitable to convey air with temperature

from -20°C to +40°C.

CONSTRUCTION

• Volute casing in steel sheet, protected against

atmospheric agents by epoxy paint. Connection

flanges ISO 6580/EUROVENT 1-2.

• Single inlet backward curved wheel with high ef-

ficiency, manufactured in steel sheet and epoxy

painted. For high rotational speed, versions in

class 3 are foreseen.

• Aerodynamically shaped inlet cone.

• Execution 4 directly coupled and executions 1-9-

12 with mono-block support in cast iron with ball

bearings, designed for easy lubrication. Pulleys,

belts and motor support. Belt protection guard

according to EN12499.

MOTOR

• Asynchronous three-phase ATEX motors for

explosive atmospheres category G group II

thermal class T4 protection Exd according to

international standards IEC 60034, IEC 60072,

IEC60079 and/or 61241, EMC 2004/108/CE, LVD

2006/95/CE, CE marked, IP 55, Class F, B3 or B5

format and ATEX certified by Notify body. Suita-

ble to S1 service (continuous working at constant

load).

ACCESSORIES

• Condensation drain hole (TS)

• Inspection door (PI)

• Inlet counter-flange (CFA)

• Outlet counter-flange (CFP)

• Inlet protection guard (RA)

• Outlet protection guard (RP)

• Inlet flexible connector (GA)

• Outlet flexible connector (GP)

• Inlet vane control

• Outlet setting shutter

• Anti-vibration mounts

UPON REQUEST

• Version with volute and impeller in stainless steel

AISI 304 or AISI 316.

• Versions with different temperatures.

• Versions with motors suitable for speed

regulation.

• Versions with double polarity motors.

Versione speciale acciaio Inox a richiesta

Special version in stainless steel upon request.
