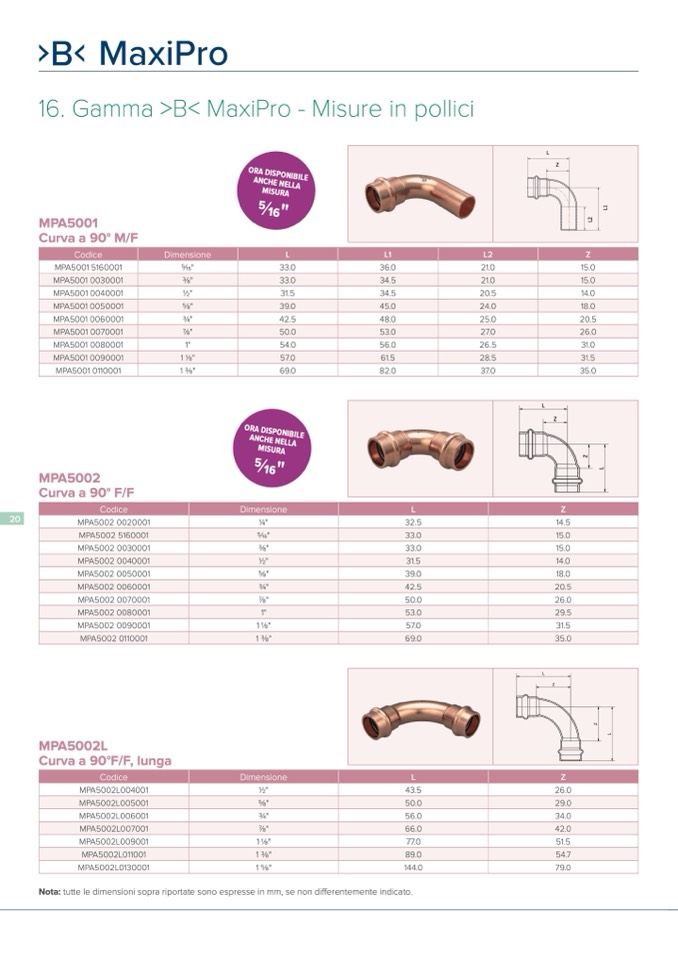

16. Gamma >B< MaxiPro - Misure in pollici
ORA
D
ISP
ON
IB
IL
E
ANC
HE
N
EL
L
A
MIS
UR
A
5
/1
6
"
L
Z
MPA500
1
Curva a 90° M/
F
L
2
Codice
Dimensione
L
L1
L2
Z
MPA5001 5160001
5/16"
33.0
36.0
21.0
15.
0
MPA5001 0030001
3/8"
33.0
34.5
21.0
15.
0
MPA5001 0040001
1/2"
31.5
34.5
20.5
14.0
MPA5001 0050001
5/8"
39.0
45.0
24.0
18.0
MPA5001 0060001
3/4"
42.5
48.0
25.0
20.5
MPA5001 0070001
7/8"
50.0
53.0
27.0
26.0
MPA5001 0080001
1"
54.0
56.0
26.5
31.0
MPA5001 0090001
1 1/8"
57.0
61.5
28.5
31.5
MPA5001 0110001
1 3/8"
69.0
82.0
37.0
35.0
L
Z
ORA
D
ISP
ON
IB
IL
E
ANC
HE
N
EL
L
A
MIS
UR
A
5
/1
6
"
Z
MPA500
2
Curva a 90° F/
F
Codice
Dimensione
L
Z
MPA5002 0020001
1/4"
32.5
14.5
MPA5002 5160001
5/16"
33.0
15.
0
MPA5002 0030001
3/8"
33.0
15.
0
MPA5002 0040001
1/2"
31.5
14.0
MPA5002 0050001
5/8"
39.0
18.0
MPA5002 0060001
3/4"
42.5
20.5
MPA5002 0070001
7/8"
50.0
26.0
MPA5002 0080001
1"
53.0
29.5
MPA5002 0090001
1 1/8"
57.0
31.5
MPA5002 0110001
1 3/8"
69.0
35.
0
MPA5002L
Curva a 90°F/F, lunga
Codice
Dimensione
L
Z
MPA5002L004001
1/2"
43.5
26.0
MPA5002L005001
5/8"
50.0
29.
0
MPA5002L006001
3/4"
56.0
34.0
MPA5002L007001
7/8"
66.0
42.
0
MPA5002L009001
1 1/8"
77.0
51.
5
MPA5002L011001
1 3/8"
89.0
54.7
MPA5002L0130001
1 5/8"
144.0
79.0
Nota: tutte le dimensioni sopra riportate sono espresse in mm, se non differentemente indicato.
