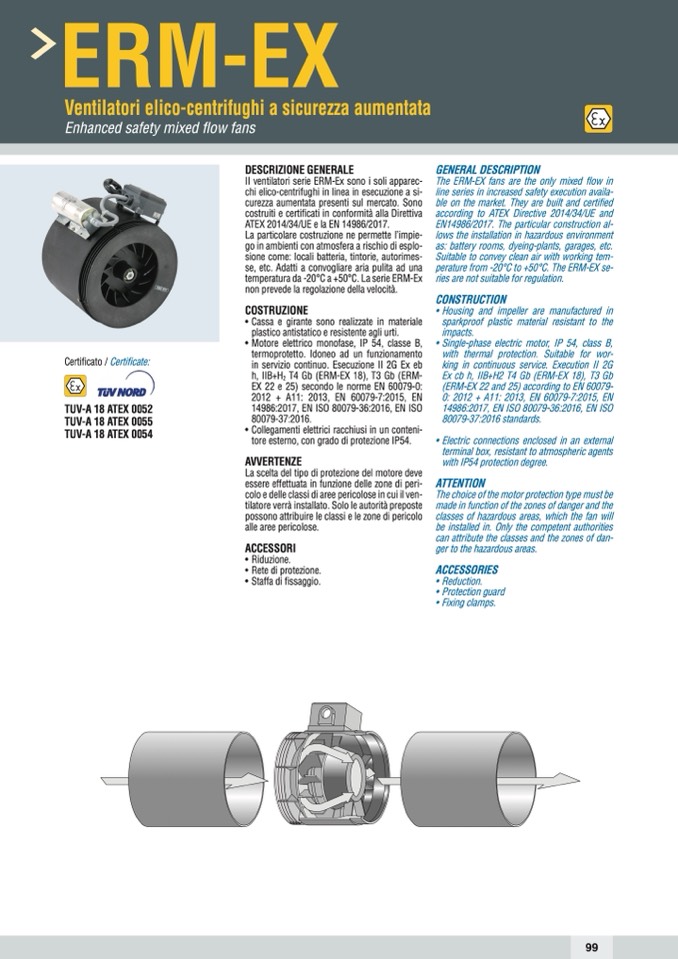

ERM-EX

Ventilatori elico-centrifughi a sicurezza aumentata

Enhanced safety mixed flow fans

Certificato / Certificate:

TUV-A 18 ATEX 0052

TUV-A 18 ATEX 0055

TUV-A 18 ATEX 0054

DESCRIZIONE GENERALE

II ventilatori serie ERM-Ex sono i soli apparec-

chi elico-centrifughi in linea in esecuzione a si-

curezza aumentata presenti sul mercato. Sono

costruiti e certificati in conformità alla Direttiva

ATEX 2014/34/UE e la EN 14986/2017.

La particolare costruzione ne permette l’impie-

go in ambienti con atmosfera a rischio di esplo-

sione come: locali batteria, tintorie, autorimes-

se, etc. Adatti a convogliare aria pulita ad una

temperatura da -20°C a +50°C. La serie ERM-Ex

non prevede la regolazione della velocità.

COSTRUZIONE

• Cassa e girante sono realizzate in materiale

plastico antistatico e resistente agli urti.

• Motore elettrico monofase, IP 54, classe B,

termoprotetto. Idoneo ad un funzionamento

in servizio continuo. Esecuzione II 2G Ex eb

h, IIB+H

2

T4 Gb (ERM-EX 18), T3 Gb (ERM-

EX 22 e 25) secondo le norme EN 60079-0:

2012 + A11: 2013, EN 60079-7:2015, EN

14986:2017, EN ISO 80079-36:2016, EN ISO

80079-37:2016.

• Collegamenti elettrici racchiusi in un conteni-

tore esterno, con grado di protezione IP54.

AVVERTENZE

La scelta del tipo di protezione del motore deve

essere effettuata in funzione delle zone di peri-

colo e delle classi di aree pericolose in cui il ven-

tilatore verrà installato. Solo le autorità preposte

possono attribuire le classi e le zone di pericolo

alle aree pericolose.

ACCESSORI

• Riduzione.

• Rete di protezione.

• Staffa di fissaggio.

GENERAL DESCRIPTION

The ERM-EX fans are the only mixed flow in

line series in increased safety execution availa-

ble on the market. They are built and certified

according to ATEX Directive 2014/34/UE and

EN14986/2017. The particular construction al-

lows the installation in hazardous environment

as: battery rooms, dyeing-plants, garages, etc.

Suitable to convey clean air with working tem-

perature from -20°C to +50°C. The ERM-EX se-

ries are not suitable for regulation.

CONSTRUCTION

• Housing and impeller are manufactured in

sparkproof plastic material resistant to the

impacts.

• Single-phase electric motor, IP 54, class B,

with thermal protection. Suitable for wor-

king in continuous service. Execution II 2G

Ex cb h, IIB+H2 T4 Gb (ERM-EX 18), T3 Gb

(ERM-EX 22 and 25) according to EN 60079-

0: 2012 + A11: 2013, EN 60079-7:2015, EN

14986:2017, EN ISO 80079-36:2016, EN ISO

80079-37:2016 standards.

• Electric connections enclosed in an external

terminal box, resistant to atmospheric agents

with IP54 protection degree.

ATTENTION

The choice of the motor protection type must be

made in function of the zones of danger and the

classes of hazardous areas, which the fan will

be installed in. Only the competent authorities

can attribute the classes and the zones of dan-

ger to the hazardous areas.

ACCESSORIES

• Reduction.

• Protection guard

• Fixing clamps.
