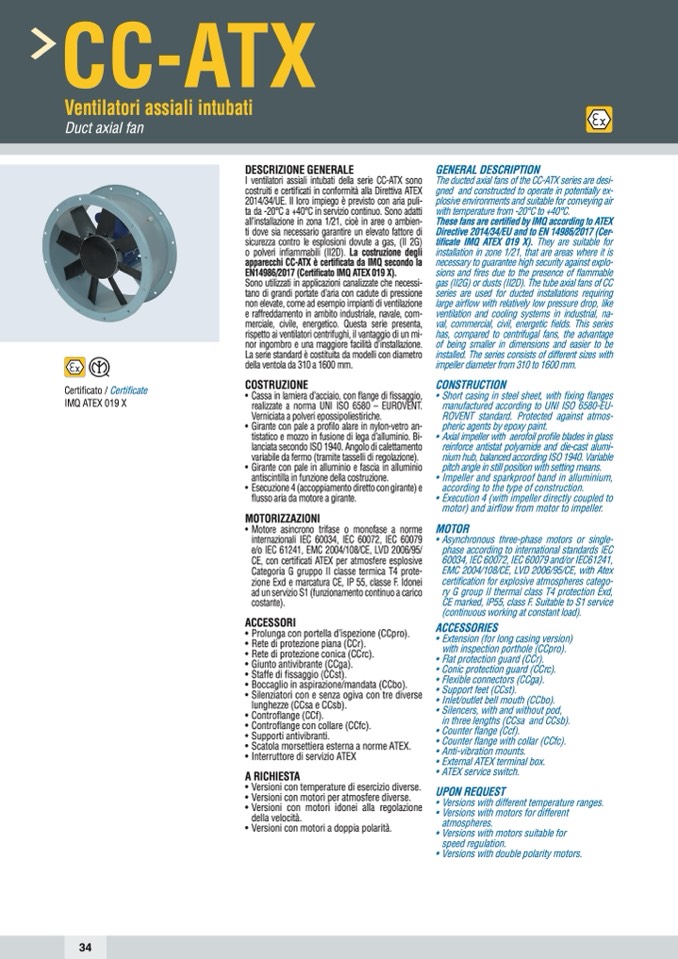

CC-ATX

Ventilatori assiali intubati

Duct axial fan

Certificato / Certificate

IMQ ATEX 019 X

DESCRIZIONE GENERALE

I ventilatori assiali intubati della serie CC-ATX sono

costruiti e certificati in conformità alla Direttiva ATEX

2014/34/UE. Il loro impiego è previsto con aria puli-

ta da -20°C a +40°C in servizio continuo. Sono adatti

all’installazione in zona 1/21, cioè in aree o ambien-

ti dove sia necessario garantire un elevato fattore di

sicurezza contro le esplosioni dovute a gas, (II 2G)

o polveri infiammabili (II2D). La costruzione degli

apparecchi CC-ATX è certificata da IMQ secondo la

EN14986/2017 (Certificato IMQ ATEX 019 X).

Sono utilizzati in applicazioni canalizzate che necessi-

tano di grandi portate d’aria con cadute di pressione

non elevate, come ad esempio impianti di ventilazione

e raffreddamento in ambito industriale, navale, com-

merciale, civile, energetico. Questa serie presenta,

rispetto ai ventilatori centrifughi, il vantaggio di un mi-

nor ingombro e una maggiore facilità d’installazione.

La serie standard è costituita da modelli con diametro

della ventola da 310 a 1600 mm.

COSTRUZIONE

• Cassa in lamiera d’acciaio, con flange di fissaggio,

realizzate a norma UNI ISO 6580 – EUROVENT.

Verniciata a polveri epossipoliestiriche.

• Girante con pale a profilo alare in nylon-vetro an-

tistatico e mozzo in fusione di lega d’alluminio. Bi-

lanciata secondo ISO 1940. Angolo di calettamento

variabile da fermo (tramite tasselli di regolazione).

• Girante con pale in alluminio e fascia in alluminio

antiscintilla in funzione della costruzione.

• Esecuzione 4 (accoppiamento diretto con girante) e

flusso aria da motore a girante.

MOTORIZZAZIONI

• Motore asincrono trifase o monofase a norme

internazionali IEC 60034, IEC 60072, IEC 60079

e/o IEC 61241, EMC 2004/108/CE, LVD 2006/95/

CE, con certificati ATEX per atmosfere esplosive

Categoria G gruppo II classe termica T4 prote-

zione Exd e marcatura CE, IP 55, classe F. Idonei

ad un servizio S1 (funzionamento continuo a carico

costante).

ACCESSORI

• Prolunga con portella d’ispezione (CCpro).

• Rete di protezione piana (CCr).

• Rete di protezione conica (CCrc).

• Giunto antivibrante (CCga).

• Staffe di fissaggio (CCst).

• Boccaglio in aspirazione/mandata (CCbo).

• Silenziatori con e senza ogiva con tre diverse

lunghezze (CCsa e CCsb).

• Controflange (CCf).

• Controflange con collare (CCfc).

• Supporti antivibranti.

• Scatola morsettiera esterna a norme ATEX.

• Interruttore di servizio ATEX

A RICHIESTA

• Versioni con temperature di esercizio diverse.

• Versioni con motori per atmosfere diverse.

• Versioni con motori idonei alla regolazione

della velocità.

• Versioni con motori a doppia polarità.

GENERAL DESCRIPTION

The ducted axial fans of the CC-ATX series are desi-

gned and constructed to operate in potentially ex-

plosive environments and suitable for conveying air

with temperature from -20°C to +40°C.

These fans are certified by IMQ according to ATEX

Directive 2014/34/EU and to EN 14986/2017 (Cer-

tificate IMQ ATEX 019 X). They are suitable for

installation in zone 1/21, that are areas where it is

necessary to guarantee high security against explo-

sions and fires due to the presence of flammable

gas (II2G) or dusts (II2D). The tube axial fans of CC

series are used for ducted installations requiring

large airflow with relatively low pressure drop, like

ventilation and cooling systems in industrial, na-

val, commercial, civil, energetic fields. This series

has, compared to centrifugal fans, the advantage

of being smaller in dimensions and easier to be

installed. The series consists of different sizes with

impeller diameter from 310 to 1600 mm.

CONSTRUCTION

• Short casing in steel sheet, with fixing flanges

manufactured according to UNI ISO 6580-EU-

ROVENT standard. Protected against atmos-

pheric agents by epoxy paint.

• Axial impeller with aerofoil profile blades in glass

reinforce antistat polyamide and die-cast alumi-

nium hub, balanced according ISO 1940. Variable

pitch angle in still position with setting means.

• Impeller and sparkproof band in alluminium,

according to the type of construction.

• Execution 4 (with impeller directly coupled to

motor) and airflow from motor to impeller.

MOTOR

• Asynchronous three-phase motors or single-

phase according to international standards IEC

60034, IEC 60072, IEC 60079 and/or IEC61241,

EMC 2004/108/CE, LVD 2006/95/CE, with Atex

certification for explosive atmospheres catego-

ry G group II thermal class T4 protection Exd,

CE marked, IP55, class F. Suitable to S1 service

(continuous working at constant load).

ACCESSORIES

• Extension (for long casing version)

with inspection porthole (CCpro).

• Flat protection guard (CCr).

• Conic protection guard (CCrc).

• Flexible connectors (CCga).

• Support feet (CCst).

• Inlet/outlet bell mouth (CCbo).

• Silencers, with and without pod,

in three lengths (CCsa and CCsb).

• Counter flange (Ccf).

• Counter flange with collar (CCfc).

• Anti-vibration mounts.

• External ATEX terminal box.

• ATEX service switch.

UPON REQUEST

• Versions with different temperature ranges.

• Versions with motors for different

atmospheres.

• Versions with motors suitable for

speed regulation.

• Versions with double polarity motors.

34
