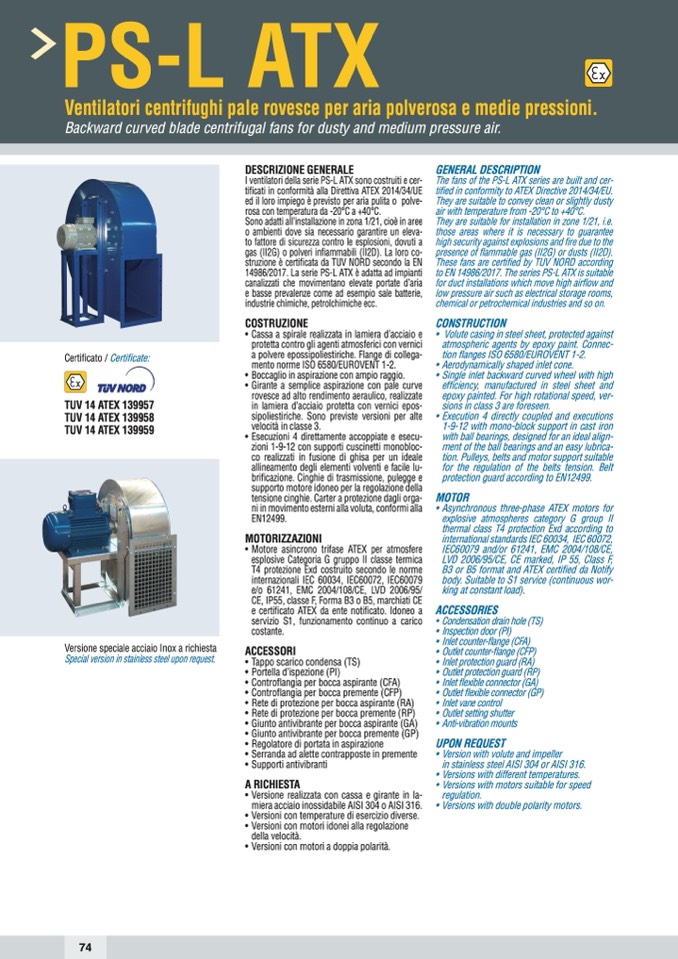

PS-L ATX

Ventilatori centrifughi pale rovesce per aria polverosa e medie pressioni.

Backward curved blade centrifugal fans for dusty and medium pressure air.

Certificato / Certificate:

DESCRIZIONE GENERALE

I ventilatori della serie PS-L ATX sono costruiti e cer-

tificati in conformità alla Direttiva ATEX 2014/34/UE

ed il loro impiego è previsto per aria pulita o polve-

rosa con temperatura da -20°C a +40°C.

Sono adatti all’installazione in zona 1/21, cioè in aree

o ambienti dove sia necessario garantire un eleva-

to fattore di sicurezza contro le esplosioni, dovuti a

gas (II2G) o polveri infiammabili (II2D). La loro co-

struzione è certificata da TUV NORD secondo la EN

14986/2017. La serie PS-L ATX è adatta ad impianti

canalizzati che movimentano elevate portate d’aria

e basse prevalenze come ad esempio sale batterie,

industrie chimiche, petrolchimiche ecc.

COSTRUZIONE

• Cassa a spirale realizzata in lamiera d’acciaio e

protetta contro gli agenti atmosferici con vernici

a polvere epossipoliestiriche. Flange di collega-

mento norme ISO 6580/EUROVENT 1-2.

GENERAL DESCRIPTION

The fans of the PS-L ATX series are built and cer-

tified in conformity to ATEX Directive 2014/34/EU.

They are suitable to convey clean or slightly dusty

air with temperature from -20°C to +40°C.

They are suitable for installation in zone 1/21, i.e.

those areas where it is necessary to guarantee

high security against explosions and fire due to the

presence of flammable gas (II2G) or dusts (II2D).

These fans are certified by TUV NORD according

to EN 14986/2017. The series PS-L ATX is suitable

for duct installations which move high airflow and

low pressure air such as electrical storage rooms,

chemical or petrochemical industries and so on.

CONSTRUCTION

• Volute casing in steel sheet, protected against

atmospheric agents by epoxy paint. Connec-

tion flanges ISO 6580/EUROVENT 1-2.

• Aerodynamically shaped inlet cone.

• Single inlet backward curved wheel with high

efficiency, manufactured in steel sheet and

epoxy painted. For high rotational speed, ver-

sions in class 3 are foreseen.

• Execution 4 directly coupled and executions

1-9-12 with mono-block support in cast iron

with ball bearings, designed for an ideal align-

ment of the ball bearings and an easy lubrica-

tion. Pulleys, belts and motor support suitable

for the regulation of the belts tension. Belt

protection guard according to EN12499.

MOTOR

• Asynchronous three-phase ATEX motors for

explosive atmospheres category G group II

thermal class T4 protection Exd according to

international standards IEC 60034, IEC 60072,

IEC60079 and/or 61241, EMC 2004/108/CE,

LVD 2006/95/CE, CE marked, IP 55, Class F,

B3 or B5 format and ATEX certified da Notify

body. Suitable to S1 service (continuous wor-

king at constant load).

ACCESSORIES

• Condensation drain hole (TS)

• Inspection door (PI)

• Inlet counter-flange (CFA)

• Outlet counter-flange (CFP)

• Inlet protection guard (RA)

• Outlet protection guard (RP)

• Inlet flexible connector (GA)

• Outlet flexible connector (GP)

• Inlet vane control

• Outlet setting shutter

• Anti-vibration mounts

UPON REQUEST

• Version with volute and impeller

in stainless steel AISI 304 or AISI 316.

• Versions with different temperatures.

• Versions with motors suitable for speed

regulation.

• Versions with double polarity motors.

• Boccaglio in aspirazione con ampio raggio.

• Girante a semplice aspirazione con pale curve

rovesce ad alto rendimento aeraulico, realizzate

TUV 14 ATEX 139957

in lamiera d’acciaio protetta con vernici epos-

sipoliestiriche. Sono previste versioni per alte

TUV 14 ATEX 139958

TUV 14 ATEX 139959

velocità in classe 3.

• Esecuzioni 4 direttamente accoppiate e esecu-

zioni 1-9-12 con supporti cuscinetti monobloc-

co realizzati in fusione di ghisa per un ideale

allineamento degli elementi volventi e facile lu-

brificazione. Cinghie di trasmissione, pulegge e

supporto motore idoneo per la regolazione della

tensione cinghie. Carter a protezione dagli orga-

ni in movimento esterni alla voluta, conformi alla

EN12499.

MOTORIZZAZIONI

• Motore asincrono trifase ATEX per atmosfere

esplosive Categoria G gruppo II classe termica

T4 protezione Exd costruito secondo le norme

internazionali IEC 60034, IEC60072, IEC60079

e/o 61241, EMC 2004/108/CE, LVD 2006/95/

CE, IP55, classe F, Forma B3 o B5, marchiati CE

e certificato ATEX da ente notificato. Idoneo a

servizio S1, funzionamento continuo a carico

costante.

ACCESSORI

• Tappo scarico condensa (TS)

• Portella d’ispezione (PI)

• Controflangia per bocca aspirante (CFA)

• Controflangia per bocca premente (CFP)

• Rete di protezione per bocca aspirante (RA)

• Rete di protezione per bocca premente (RP)

• Giunto antivibrante per bocca aspirante (GA)

• Giunto antivibrante per bocca premente (GP)

• Regolatore di portata in aspirazione

• Serranda ad alette contrapposte in premente

• Supporti antivibranti

A RICHIESTA

• Versione realizzata con cassa e girante in la-

miera acciaio inossidabile AISI 304 o AISI 316.

• Versioni con temperature di esercizio diverse.

• Versioni con motori idonei alla regolazione

della velocità.

• Versioni con motori a doppia polarità.

Versione speciale acciaio Inox a richiesta

Special version in stainless steel upon request.
