KESSEL AG

Spare parts catalogue 2021

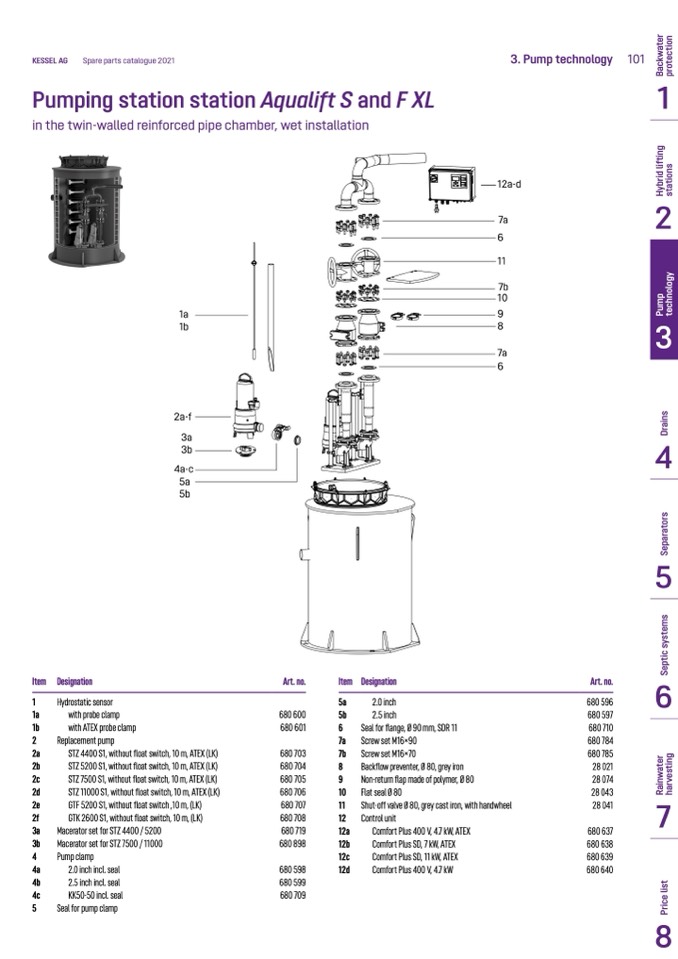

Pumping station station Aqualift S and F XL

in the twin-walled reinforced pipe chamber, wet installation

3. Pump technology 101

1

12a-d

7a

2

6

11

7b

10

9

8

3

7a

Item

1

1a

1b

2

2a

2b

2c

2d

2e

2f

3a

3b

4

4a

4b

4c

5

Designation

Hydrostatic sensor

with probe clamp

with ATEX probe clamp

Art. no.

680 600

680 601

680 703

680 704

680 705

680 706

680 707

680 708

680 719

680 898

680 598

680 599

680 709

Item Designation

4

5

Art. no.

6

680 596

680 597

680 710

680 784

680 785

28 021

28 074

28 043

28 041

7

680 637

680 638

680 639

680 640

Replacement pump

STZ 4400 S1, without float switch, 10 m, ATEX (LK)

STZ 5200 S1, without float switch, 10 m, ATEX (LK)

STZ 7500 S1, without float switch, 10 m, ATEX (LK)

STZ 11000 S1, without float switch, 10 m, ATEX (LK)

GTF 5200 S1, without float switch ,10 m, (LK)

GTK 2600 S1, without float switch, 10 m, (LK)

Macerator set for STZ 4400 / 5200

Macerator set for STZ 7500 / 11000

Pump clamp

2.0 inch incl. seal

2.5 inch incl. seal

KK50-50 incl. seal

Seal for pump clamp

5a

2.0 inch

5b

2.5 inch

6

Seal for flange, Ø 90 mm, SDR 11

7a

Screw set M16×90

7b

Screw set M16×70

8

Backflow preventer, Ø 80, grey iron

9

Non-return flap made of polymer, Ø 80

10 Flat seal Ø 80

11

Shut-off valve Ø 80, grey cast iron, with handwheel

12 Control unit

12a

Comfort Plus 400 V, 4.7 kW, ATEX

12b

Comfort Plus SD, 7 kW, ATEX

12c

Comfort Plus SD, 11 kW, ATEX

12d

Comfort Plus 400 V, 4.7 kW

1a

1b

2a-f

3a

3b

4a-c

5a

5b

6

8
