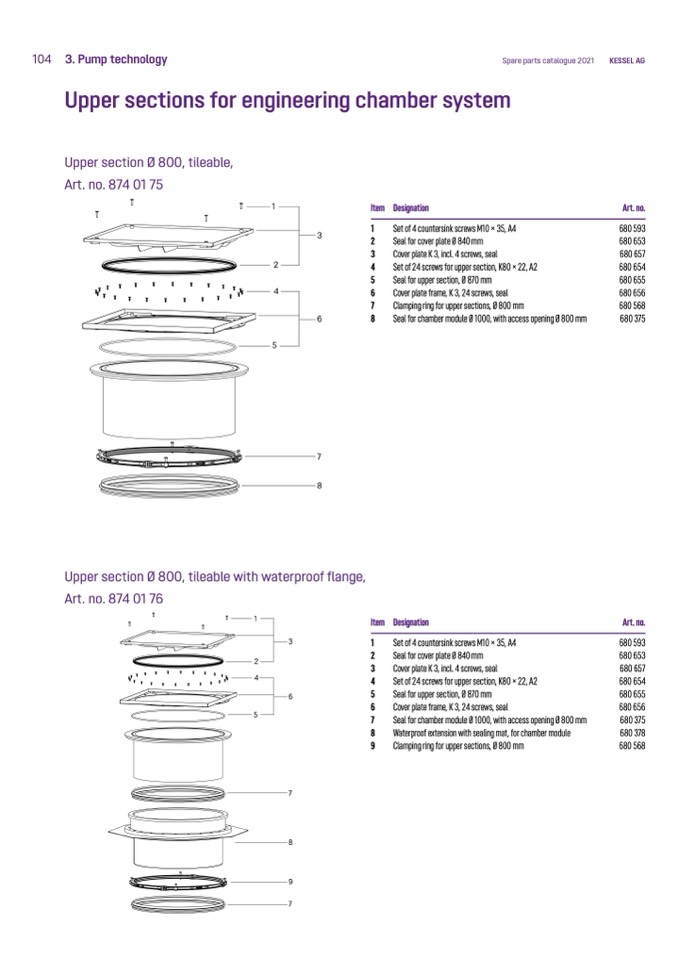

Upper sections for engineering chamber system

KESSEL AG

Art. no.

680 593

680 653

680 657

680 654

680 655

680 656

680 568

680 375

Upper section Ø 800, tileable,

Art. no. 874 01 75

Upper section Ø 800, tileable with waterproof flange,

Art. no. 874 01 76

1

2

4

6

5

7

8

9

7

Item Designation

1

Set of 4 countersink screws M10 × 35, A4

2

Seal for cover plate Ø 840 mm

3

Cover plate K 3, incl. 4 screws, seal

4

Set of 24 screws for upper section, K80 × 22, A2

5

Seal for upper section, Ø 870 mm

6

Cover plate frame, K 3, 24 screws, seal

7

Seal for chamber module Ø 1000, with access opening Ø 800 mm

8

Waterproof extension with sealing mat, for chamber module

9

Clamping ring for upper sections, Ø 800 mm

Art. no.

680 593

680 653

680 657

680 654

680 655

680 656

680 375

680 378

680 568

1

3

2

4

5

Item Designation

1

Set of 4 countersink screws M10 × 35, A4

2

Seal for cover plate Ø 840 mm

3

Cover plate K 3, incl. 4 screws, seal

4

Set of 24 screws for upper section, K80 × 22, A2

5

Seal for upper section, Ø 870 mm

6

Cover plate frame, K 3, 24 screws, seal

7

Clamping ring for upper sections, Ø 800 mm

3

6

8

7

8

Seal for chamber module Ø 1000, with access opening Ø 800 mm
