112 4. Drains

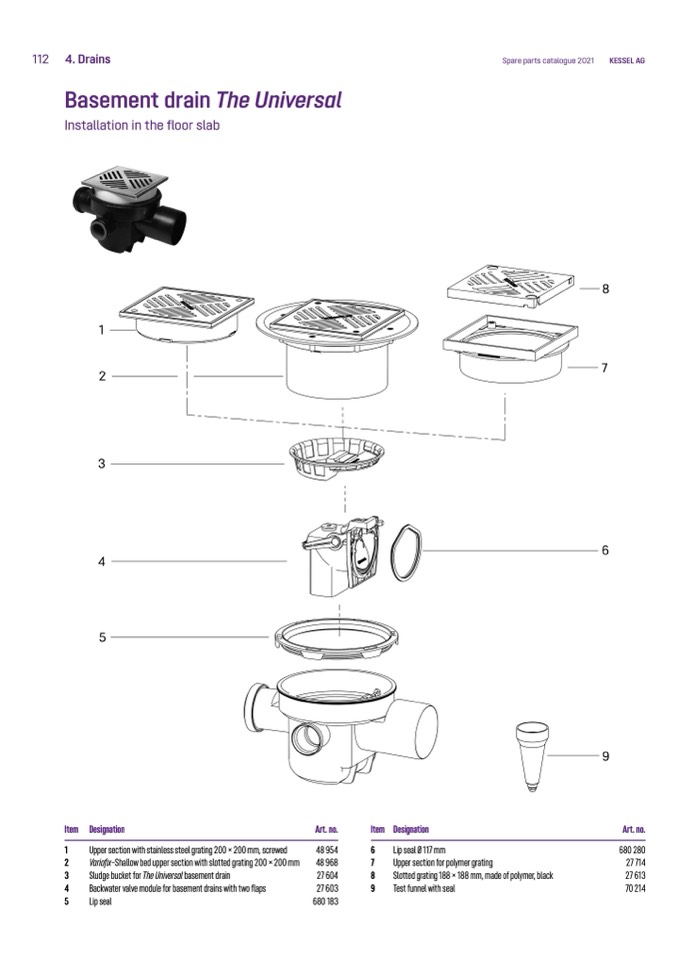

Basement drain The Universal

Spare parts catalogue 2021

KESSEL AG

Installation in the floor slab

1

2

3

4

5

8

7

Item Designation

1

Upper section with stainless steel grating 200 × 200 mm, screwed

2

Variofix–Shallow bed upper section with slotted grating 200 × 200 mm

3

Sludge bucket for The Universal basement drain

4

Backwater valve module for basement drains with two flaps

5

Lip seal

Art. no.

48 954

48 968

27 604

27 603

680 183

Item Designation

Art. no.

680 280

27 714

27 613

70 214

6

Lip seal Ø 117 mm

7

Upper section for polymer grating

8

Slotted grating 188 × 188 mm, made of polymer, black

9

Test funnel with seal

6

9
