116 4. Drains

Spare parts catalogue 2021

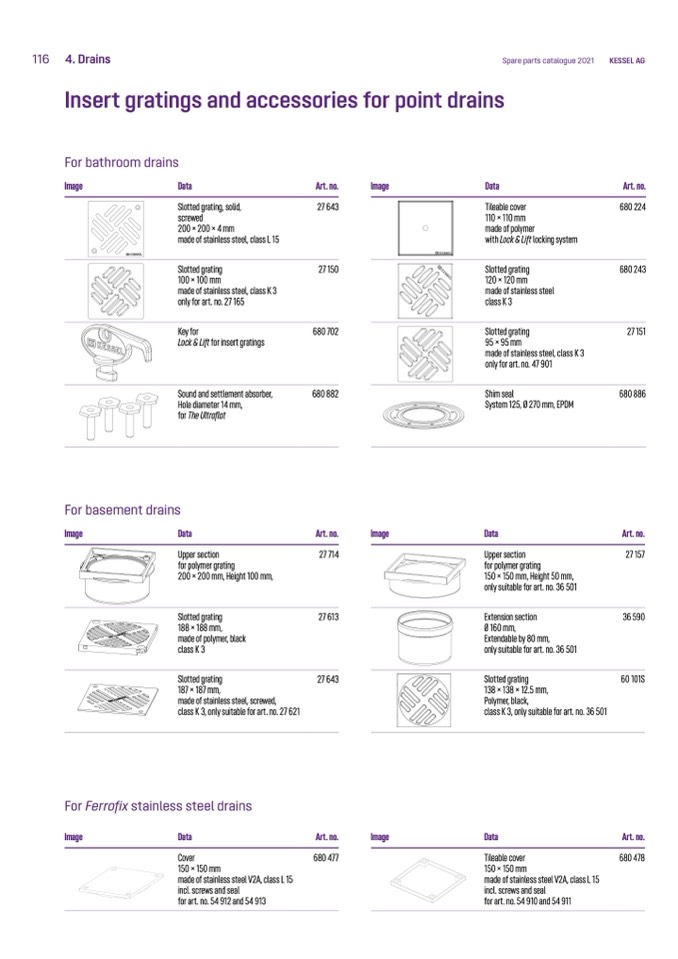

Insert gratings and accessories for point drains

KESSEL AG

Art. no.

680 224

680 243

27 151

680 886

Art. no.

27 157

36 590

60 101S

For bathroom drains


Data

Slotted grating, solid,

screwed

200 × 200 × 4 mm

made of stainless steel, class L 15

Slotted grating

100 × 100 mm

made of stainless steel, class K 3

only for art. no. 27 165

Key for

Lock & Lift for insert gratings

Sound and settlement absorber,

Hole diameter 14 mm,

for The Ultraflat

Art. no.

27 643

27 150

680 702

680 882

Art. no.

27 714

27 613

27 643


Data

Tileable cover

110 × 110 mm

made of polymer

with Lock & Lift locking system

Slotted grating

120 × 120 mm

made of stainless steel

class K 3

Slotted grating

95 × 95 mm

made of stainless steel, class K 3

only for art. no. 47 901

Shim seal

System 125, Ø 270 mm, EPDM

Data

Upper section

for polymer grating

150 × 150 mm, Height 50 mm,

only suitable for art. no. 36 501

Extension section

Ø 160 mm,

Extendable by 80 mm,

only suitable for art. no. 36 501

Slotted grating

138 × 138 × 12.5 mm,

Polymer, black,

class K 3, only suitable for art. no. 36 501

Data

Tileable cover

150 × 150 mm

made of stainless steel V2A, class L 15

incl. screws and seal

for art. no. 54 910 and 54 911

For basement drains


Data

Upper section

for polymer grating

200 × 200 mm, Height 100 mm,

Slotted grating

188 × 188 mm,

made of polymer, black

class K 3

Slotted grating

187 × 187 mm,

made of stainless steel, screwed,

class K 3, only suitable for art. no. 27 621


For Ferrofix stainless steel drains


Data

Cover

150 × 150 mm

made of stainless steel V2A, class L 15

incl. screws and seal

for art. no. 54 912 and 54 913

Art. no.

680 477


Art. no.

680 478
