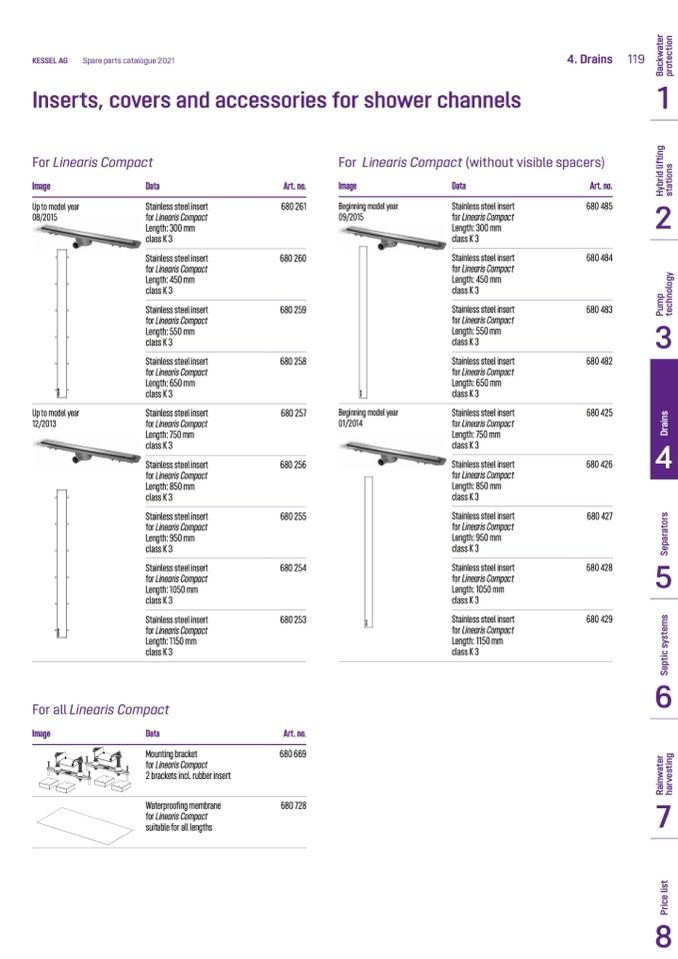

KESSEL AG

Spare parts catalogue 2021

4. Drains

Inserts, covers and accessories for shower channels

119

1

2

3

4

5

6

7

8

For Linearis Compact

For Linearis Compact (without visible spacers)


Up to model year

08/2015

Data

Stainless steel insert

for Linearis Compact

Length: 300 mm

class K 3

Stainless steel insert

for Linearis Compact

Length: 450 mm

class K 3

Stainless steel insert

for Linearis Compact

Length: 550 mm

class K 3

Stainless steel insert

for Linearis Compact

Length: 650 mm

class K 3

Stainless steel insert

for Linearis Compact

Length: 750 mm

class K 3

Stainless steel insert

for Linearis Compact

Length: 850 mm

class K 3

Stainless steel insert

for Linearis Compact

Length: 950 mm

class K 3

Stainless steel insert

for Linearis Compact

Length: 1050 mm

class K 3

Stainless steel insert

for Linearis Compact

Length: 1150 mm

class K 3

Art. no.

680 261

680 260

680 259

680 258

680 257

680 256

680 255

680 254

680 253

Art. no.

680 669

680 728


Beginning model year

09/2015

Data

Stainless steel insert

for Linearis Compact

Length: 300 mm

class K 3

Stainless steel insert

for Linearis Compact

Length: 450 mm

class K 3

Stainless steel insert

for Linearis Compact

Length: 550 mm

class K 3

Stainless steel insert

for Linearis Compact

Length: 650 mm

class K 3

Stainless steel insert

for Linearis Compact

Length: 750 mm

class K 3

Stainless steel insert

for Linearis Compact

Length: 850 mm

class K 3

Stainless steel insert

for Linearis Compact

Length: 950 mm

class K 3

Stainless steel insert

for Linearis Compact

Length: 1050 mm

class K 3

Stainless steel insert

for Linearis Compact

Length: 1150 mm

class K 3

Art. no.

680 485

680 484

680 483

Up to model year

12/2013

Beginning model year

01/2014

680 482

680 425

For all Linearis Compact


Data

Mounting bracket

for Linearis Compact

2 brackets incl. rubber insert

Waterproofing membrane

for Linearis Compact

suitable for all lengths

680 426

680 427

680 428

680 429
