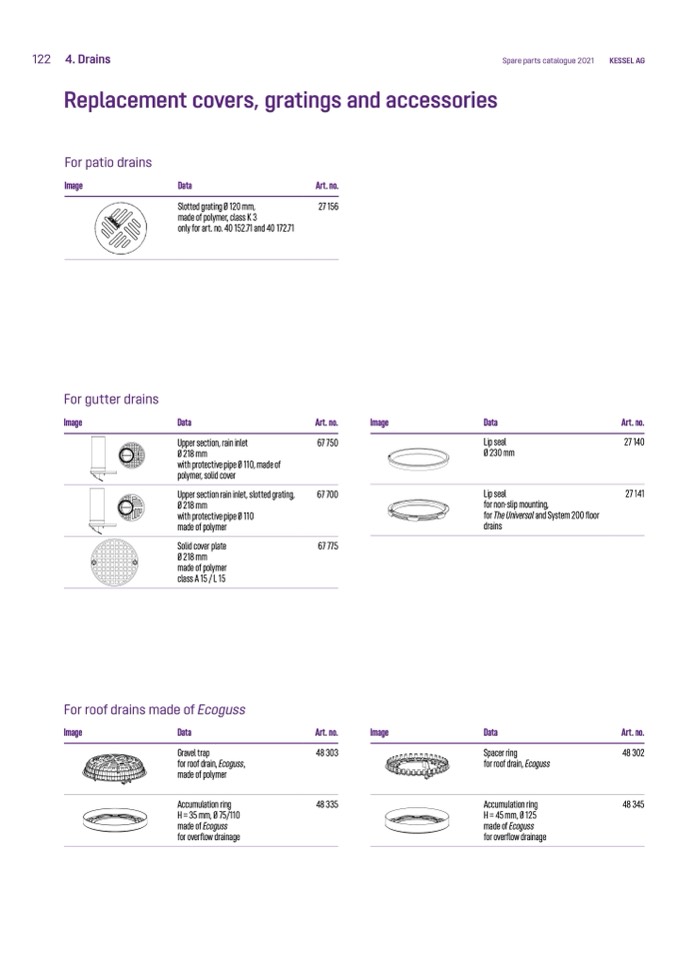

122 4. Drains

Replacement covers, gratings and accessories

Spare parts catalogue 2021

KESSEL AG

For patio drains


For gutter drains


Data

Slotted grating Ø 120 mm,

made of polymer, class K 3

only for art. no. 40 152.71 and 40 172.71

Art. no.

27 156

For roof drains made of Ecoguss


Data

Gravel trap

for roof drain, Ecoguss,

made of polymer

Accumulation ring

H = 35 mm, Ø 75/110

made of Ecoguss

for overflow drainage

Art. no.

48 303

48 335


Data

Spacer ring

for roof drain, Ecoguss

Accumulation ring

H = 45 mm, Ø 125

made of Ecoguss

for overflow drainage

Art. no.

48 302

48 345

Data

Upper section, rain inlet

Ø 218 mm

with protective pipe Ø 110, made of

polymer, solid cover

Upper section rain inlet, slotted grating,

Ø 218 mm

with protective pipe Ø 110

made of polymer

Solid cover plate

Ø 218 mm

made of polymer

class A 15 / L 15

Art. no.

67 750

67 700

67 775


Data

Art. no.

27 140

27 141

Lip seal

Ø 230 mm

Lip seal

for non-slip mounting,

for The Universal and System 200 floor

drains
