KESSEL AG

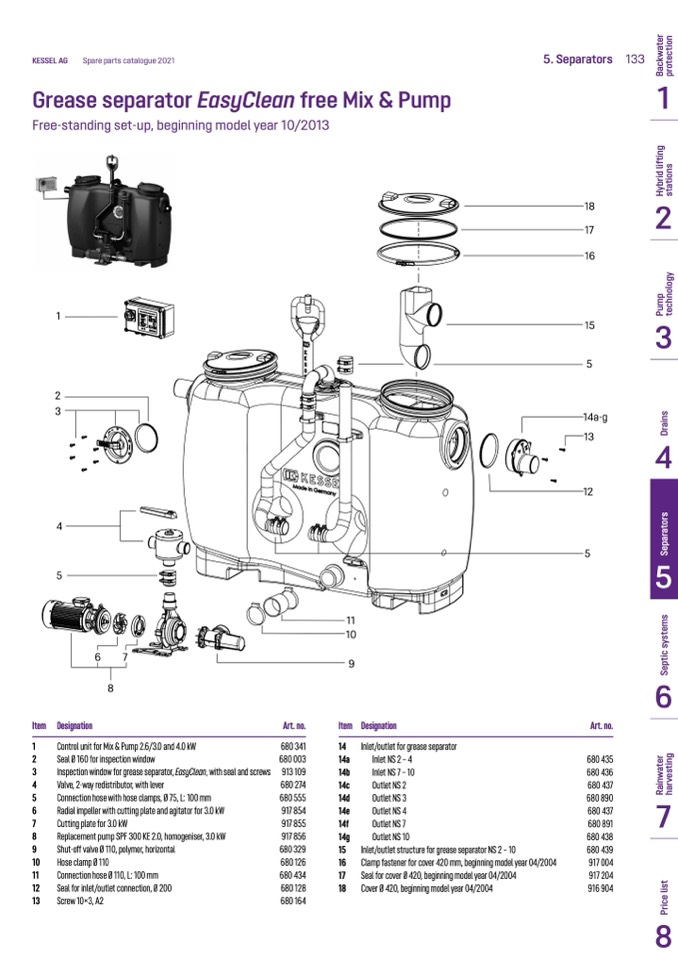

Spare parts catalogue 2021

Grease separator EasyClean free Mix & Pump

Free-standing set-up, beginning model year 10/2013

5. Separators 133

1

18

2

17

9

16

1

1

5

3

2

3

4

5

14a-g

13

4

12

5

5

5

11

10

9

Item Designation

14 Inlet/outlet for grease separator

14a

Inlet NS 2 – 4

14b

Inlet NS 7 – 10

14c

Outlet NS 2

14d

Outlet NS 3

14e

Outlet NS 4

14f

Outlet NS 7

14g

Outlet NS 10

15 Inlet/outlet structure for grease separator NS 2 – 10

16 Clamp fastener for cover 420 mm, beginning model year 04/2004

17

Seal for cover Ø 420, beginning model year 04/2004

18 Cover Ø 420, beginning model year 04/2004

6

7

8

6

Item Designation

1

Control unit for Mix & Pump 2.6/3.0 and 4.0 kW

2

Seal Ø 160 for inspection window

3

Inspection window for grease separator, EasyClean, with seal and screws

4

Valve, 2-way redistributor, with lever

5

Connection hose with hose clamps, Ø 75, L: 100 mm

6

Radial impeller with cutting plate and agitator for 3.0 kW

7

Cutting plate for 3.0 kW

8

Replacement pump SPF 300 KE 2.0, homogeniser, 3.0 kW

9

Shut-off valve Ø 110, polymer, horizontal

10

Hose clamp Ø 110

11

Connection hose Ø 110, L: 100 mm

12

Seal for inlet/outlet connection, Ø 200

13

Screw 10×3, A2

Art. no.

680 341

680 003

913 109

680 274

680 555

917 854

917 855

917 856

680 329

680 126

680 434

680 128

680 164

Art. no.

680 435

680 436

680 437

680 890

7

680 437

680 891

680 438

680 439

917 004

917 204

916 904
