KESSEL AG

Spare parts catalogue 2021

5. Separators 135

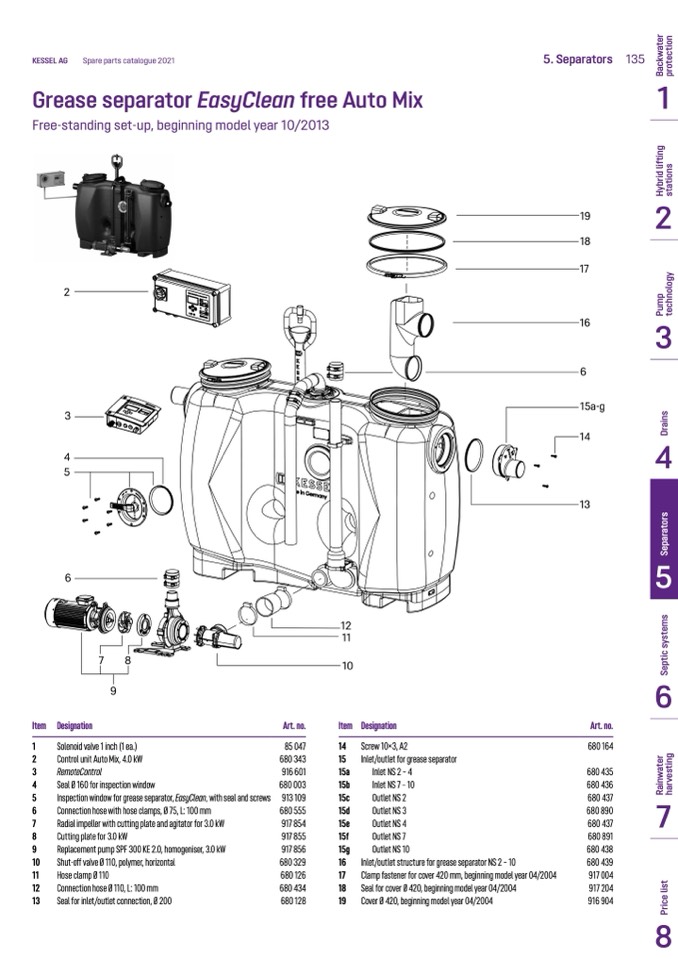

Grease separator EasyClean free Auto Mix

1

Free-standing set-up, beginning model year 10/2013

19

2

1

18

17

2

3

4

5

16

3

6

15a-g

14

4

13

6

5

12

11

10

Item Designation

14 Screw 10×3, A2

15 Inlet/outlet for grease separator

15a

Inlet NS 2 – 4

15b

Inlet NS 7 – 10

15c

Outlet NS 2

15d

Outlet NS 3

15e

Outlet NS 4

15f

Outlet NS 7

15g

Outlet NS 10

16 Inlet/outlet structure for grease separator NS 2 – 10

17

Clamp fastener for cover 420 mm, beginning model year 04/2004

18 Seal for cover Ø 420, beginning model year 04/2004

19 Cover Ø 420, beginning model year 04/2004

7

8

9

6

Item Designation

1

Solenoid valve 1 inch (1 ea.)

2

Control unit Auto Mix, 4.0 kW

3

RemoteControl

4

Seal Ø 160 for inspection window

5

Inspection window for grease separator, EasyClean, with seal and screws

6

Connection hose with hose clamps, Ø 75, L: 100 mm

7

Radial impeller with cutting plate and agitator for 3.0 kW

8

Cutting plate for 3.0 kW

9

Replacement pump SPF 300 KE 2.0, homogeniser, 3.0 kW

10

Shut-off valve Ø 110, polymer, horizontal

11

Hose clamp Ø 110

12

Connection hose Ø 110, L: 100 mm

13

Seal for inlet/outlet connection, Ø 200

Art. no.

85 047

680 343

916 601

680 003

913 109

680 555

917 854

917 855

917 856

680 329

680 126

680 434

680 128

Art. no.

680 164

680 435

680 436

680 437

7

680 890

680 437

680 891

680 438

680 439

917 004

917 204

916 904

8
