KESSEL AG

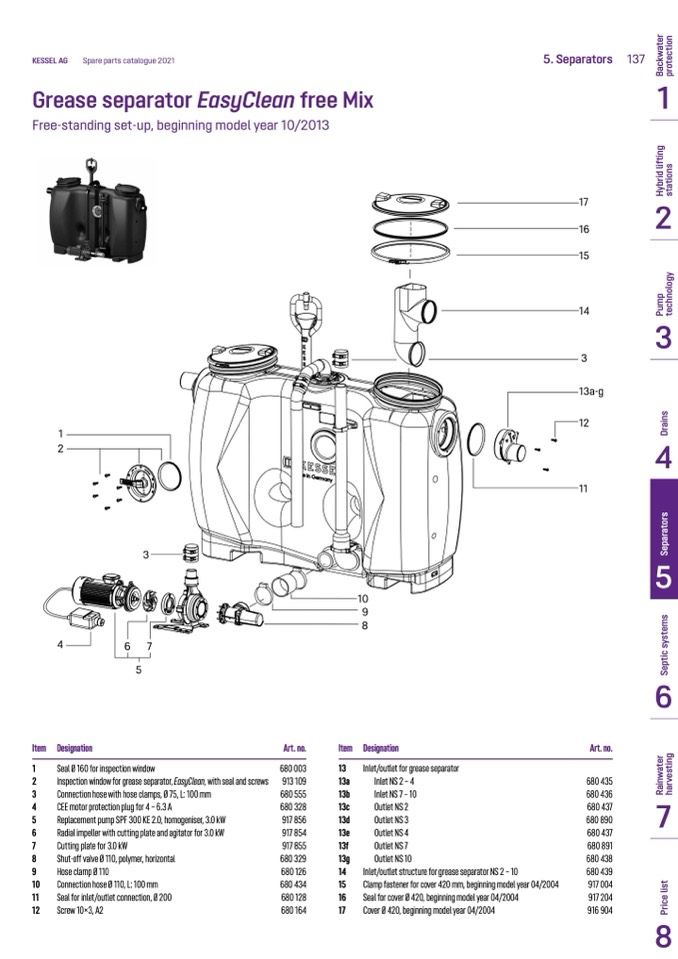

Spare parts catalogue 2021

Grease separator EasyClean free Mix

Free-standing set-up, beginning model year 10/2013

5. Separators 137

1

17

2

16

15

14

3

3

13a-g

12

1

2

4

4

Item Designation

Art. no.

680 003

913 109

680 555

680 328

917 856

917 854

917 855

680 329

680 126

680 434

680 128

680 164

6

680 437

7

680 890

680 437

680 891

680 438

680 439

917 004

917 204

916 904

3

6

7

5

10

9

8

Item Designation

13

Inlet/outlet for grease separator

13a

Inlet NS 2 – 4

13b

Inlet NS 7 – 10

13c

Outlet NS 2

13d

Outlet NS 3

13e

Outlet NS 4

13f

Outlet NS 7

13g

Outlet NS 10

14

Inlet/outlet structure for grease separator NS 2 – 10

15

Clamp fastener for cover 420 mm, beginning model year 04/2004

16

Seal for cover Ø 420, beginning model year 04/2004

17

Cover Ø 420, beginning model year 04/2004

11

5

1

Seal Ø 160 for inspection window

2

Inspection window for grease separator, EasyClean, with seal and screws

3

Connection hose with hose clamps, Ø 75, L: 100 mm

4

CEE motor protection plug for 4 – 6.3 A

5

Replacement pump SPF 300 KE 2.0, homogeniser, 3.0 kW

6

Radial impeller with cutting plate and agitator for 3.0 kW

7

Cutting plate for 3.0 kW

8

Shut-off valve Ø 110, polymer, horizontal

9

Hose clamp Ø 110

10

Connection hose Ø 110, L: 100 mm

11

Seal for inlet/outlet connection, Ø 200

12

Screw 10×3, A2

680 435

680 436

Art. no.
