146 5. Separators

Spare parts catalogue 2021

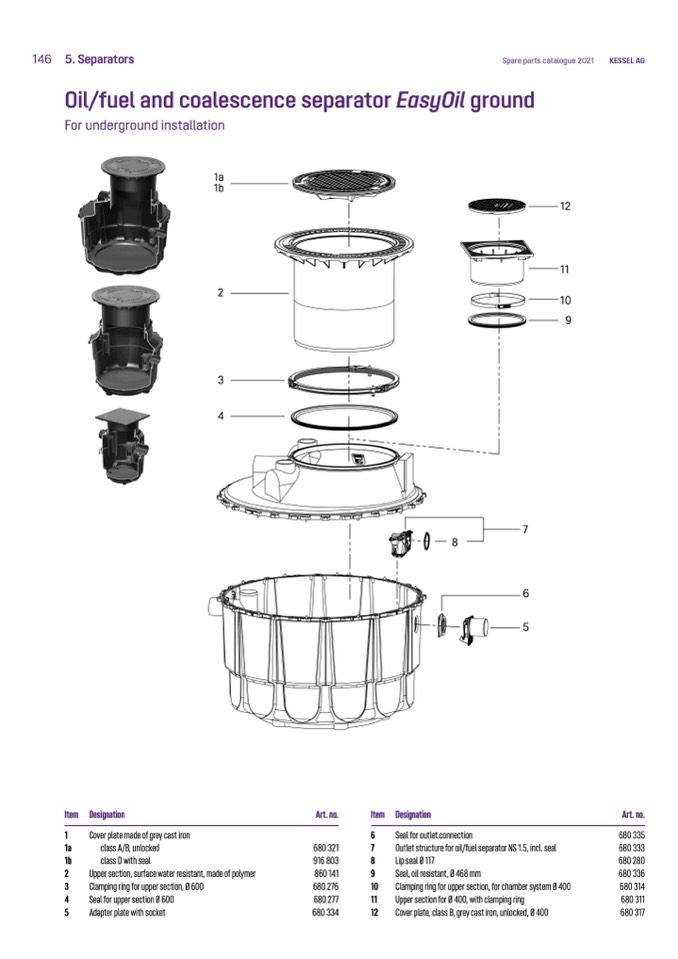

Oil/fuel and coalescence separator EasyOil ground

KESSEL AG

For underground installation

Item Designation

Art. no.

680 321

916 803

860 141

680 276

680 277

680 334

Item Designation

Art. no.

680 335

680 333

680 280

680 336

680 314

680 311

680 317

1

Cover plate made of grey cast iron

1a

class A/B, unlocked

1b

class D with seal

2

Upper section, surface water resistant, made of polymer

3

Clamping ring for upper section, Ø 600

4

Seal for upper section Ø 600

5

Adapter plate with socket

6

Seal for outlet connection

7

Outlet structure for oil/fuel separator NS 1.5, incl. seal

8

Lip seal Ø 117

9

Seal, oil resistant, Ø 468 mm

10

Clamping ring for upper section, for chamber system Ø 400

11

Upper section for Ø 400, with clamping ring

12

Cover plate, class B, grey cast iron, unlocked, Ø 400

1a

1b

2

3

4

12

11

10

9

7

8

6

5
