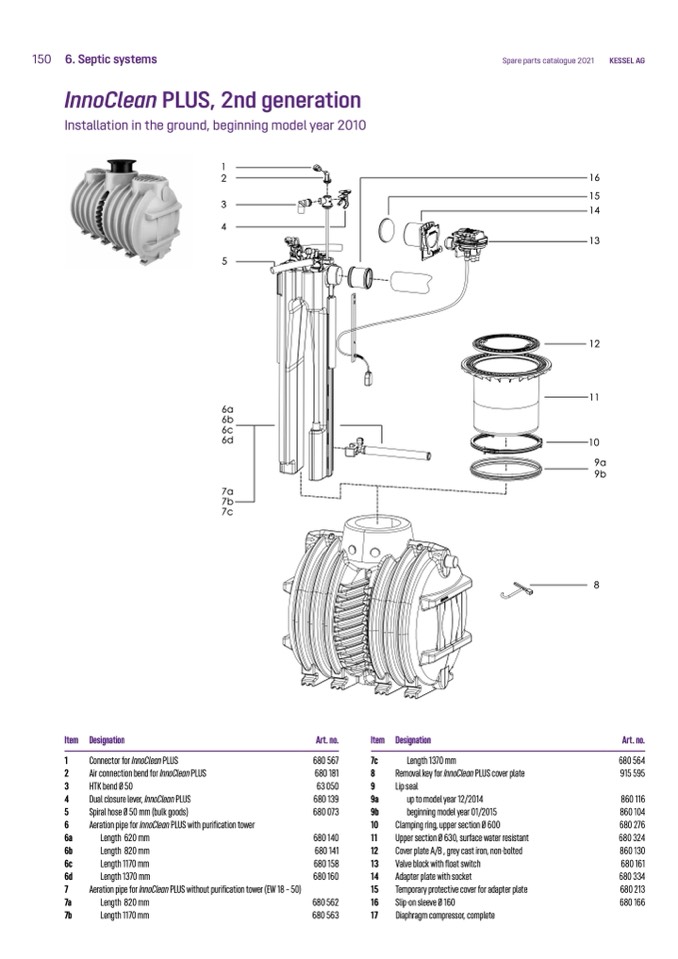

InnoClean PLUS, 2nd generation

Installation in the ground, beginning model year 2010

Spare parts catalogue 2021

KESSEL AG

Item

1

2

3

4

5

6

6a

6b

6c

6d

7

7a

7b

Designation

Art. no.

680 567

680 181

63 050

680 139

680 073

680 140

680 141

680 158

680 160

680 562

680 563

Item Designation

7c

Length 1370 mm

8

Removal key for InnoClean PLUS cover plate

9

Lip seal

9a

up to model year 12/2014

9b

beginning model year 01/2015

10

Clamping ring, upper section Ø 600

11

Upper section Ø 630, surface water resistant

12

Cover plate A/B , grey cast iron, non-bolted

13

Valve block with float switch

14

Adapter plate with socket

15

Temporary protective cover for adapter plate

16

Slip-on sleeve Ø 160

17

Diaphragm compressor, complete

Art. no.

680 564

915 595

860 116

860 104

680 276

680 324

860 130

680 161

680 334

680 213

680 166

Connector for InnoClean PLUS

Air connection bend for InnoClean PLUS

HTK bend Ø 50

Dual closure lever, InnoClean PLUS

Spiral hose Ø 50 mm (bulk goods)

Aeration pipe for InnoClean PLUS with purification tower

Length 620 mm

Length 820 mm

Length 1170 mm

Length 1370 mm

Aeration pipe for InnoClean PLUS without purification tower (EW 18 – 50)

Length 820 mm

Length 1170 mm

1

2

3

4

5

6a

6b

6c

6d

7a

7b

7c

16

15

14

13

12

11

10

9a

9b

8
