3. Pump technology

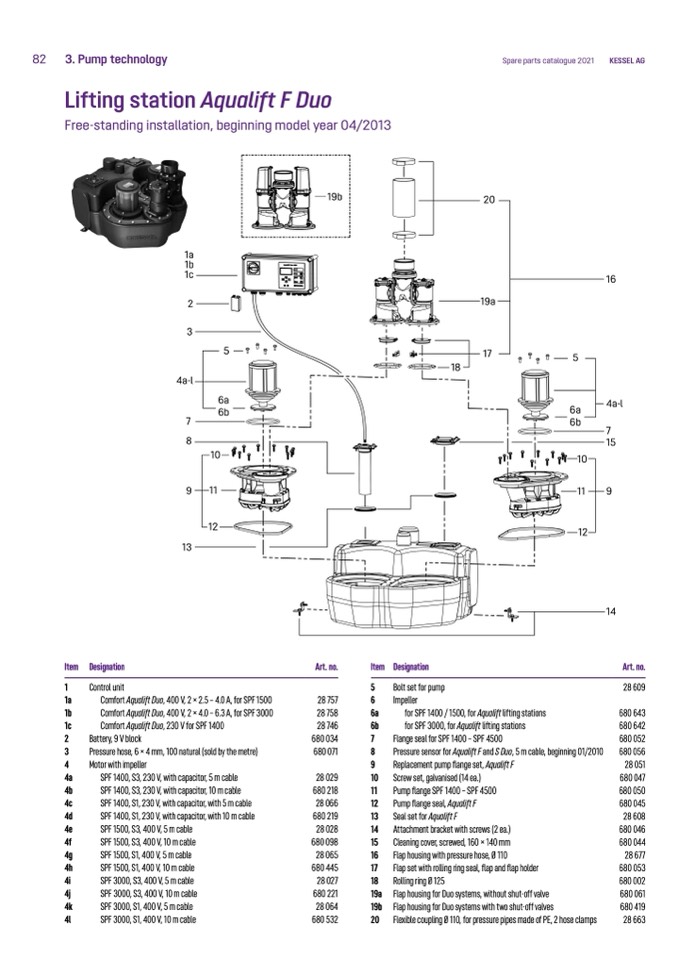

Lifting station Aqualift F Duo
Free-standing installation, beginning model year 04/2013
Spare parts catalogue 2021
KESSEL AG
Item Designation
Art. no.
28 757
28 758
28 746
680 034
680 071
28 029
680 218
28 066
680 219
28 028
680 098
28 065
680 445
28 027
680 221
28 064
680 532
Item Designation
Art. no.
28 609
680 643
680 642
680 052
680 056
28 051
680 047
680 050
680 045
28 608
680 046
680 044
28 677
680 053
680 002
680 061
680 419
28 663
1
Control unit
1a
Comfort Aqualift Duo, 400 V, 2 × 2.5 – 4.0 A, for SPF 1500
1b
Comfort Aqualift Duo, 400 V, 2 × 4.0 – 6.3 A, for SPF 3000
1c
Comfort Aqualift Duo, 230 V for SPF 1400
2
Battery, 9 V block
3
Pressure hose, 6 × 4 mm, 100 natural (sold by the metre)
4
Motor with impeller
4a
SPF 1400, S3, 230 V, with capacitor, 5 m cable
4b
SPF 1400, S3, 230 V, with capacitor, 10 m cable
4c
SPF 1400, S1, 230 V, with capacitor, with 5 m cable
4d
SPF 1400, S1, 230 V, with capacitor, with 10 m cable
4e
SPF 1500, S3, 400 V, 5 m cable
4f
SPF 1500, S3, 400 V, 10 m cable
4g
SPF 1500, S1, 400 V, 5 m cable
4h
SPF 1500, S1, 400 V, 10 m cable
4i
SPF 3000, S3, 400 V, 5 m cable
4j
SPF 3000, S3, 400 V, 10 m cable
4k
SPF 3000, S1, 400 V, 5 m cable
4l
SPF 3000, S1, 400 V, 10 m cable
5
Bolt set for pump
6
Impeller
6a
for SPF 1400 / 1500, for Aqualift lifting stations
6b
for SPF 3000, for Aqualift lifting stations
7
Flange seal for SPF 1400 – SPF 4500
8
Pressure sensor for Aqualift F and S Duo, 5 m cable, beginning 01/2010
9
Replacement pump flange set, Aqualift F
10 Screw set, galvanised (14 ea.)
11
Pump flange SPF 1400 – SPF 4500
12 Pump flange seal, Aqualift F
13 Seal set for Aqualift F
14 Attachment bracket with screws (2 ea.)
15 Cleaning cover, screwed, 160 × 140 mm
16 Flap housing with pressure hose, Ø 110
17
Flap set with rolling ring seal, flap and flap holder
18 Rolling ring Ø 125
19a Flap housing for Duo systems, without shut-off valve
19b Flap housing for Duo systems with two shut-off valves
20 Flexible coupling Ø 110, for pressure pipes made of PE, 2 hose clamps
