90 3. Pump technology
Spare parts catalogue 2021

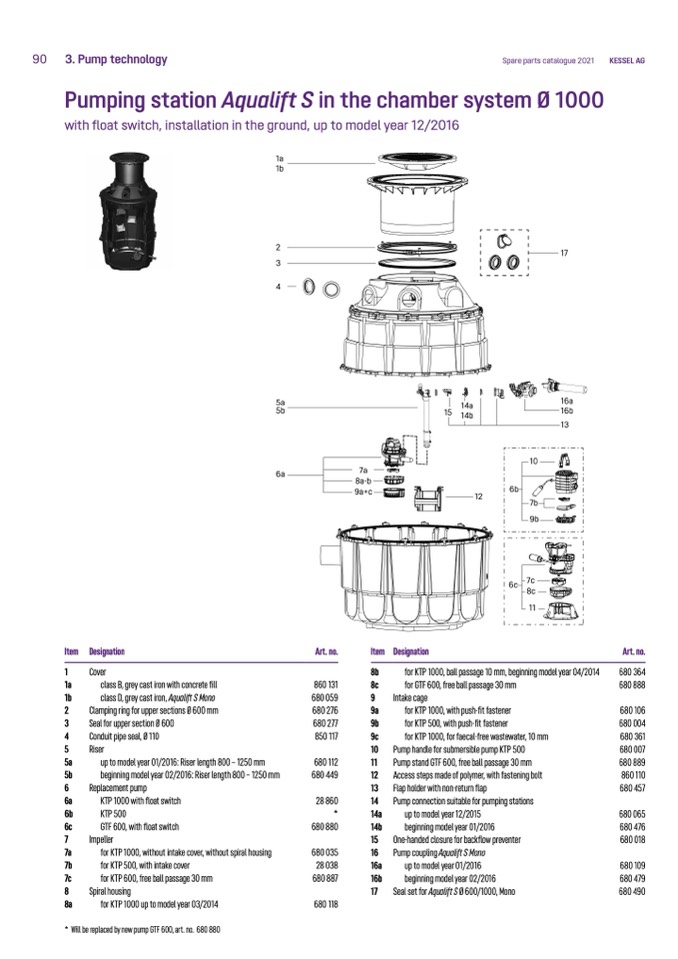

Pumping station Aqualift S in the chamber system Ø 1000
KESSEL AG
with float switch, installation in the ground, up to model year 12/2016
Item
1
1a
1b
2
3
4
5
5a
5b
6
6a
6b
6c
7
7a
7b
7c
8
8a
Designation
Cover
class B, grey cast iron with concrete fill
class D, grey cast iron, Aqualift S Mono
Clamping ring for upper sections Ø 600 mm
Seal for upper section Ø 600
Conduit pipe seal, Ø 110
Riser
up to model year 01/2016: Riser length 800 – 1250 mm
Art. no.
860 131
680 059
680 276
680 277
850 117
680 112
680 449
28 860
*
680 880
680 035
28 038
680 887
680 118
Item Designation
Art. no.
680 364
680 888
680 106
680 004
680 361
680 007
680 889
860 110
680 457
680 065
680 476
680 018
680 109
680 479
680 490
beginning model year 02/2016: Riser length 800 – 1250 mm
Replacement pump
KTP 1000 with float switch
KTP 500
GTF 600, with float switch
Impeller
for KTP 1000, without intake cover, without spiral housing
for KTP 500, with intake cover
for KTP 600, free ball passage 30 mm
Spiral housing
for KTP 1000 up to model year 03/2014
8b
for KTP 1000, ball passage 10 mm, beginning model year 04/2014
8c
for GTF 600, free ball passage 30 mm
9
Intake cage
9a
for KTP 1000, with push-fit fastener
9b
for KTP 500, with push-fit fastener
9c
for KTP 1000, for faecal-free wastewater, 10 mm
10 Pump handle for submersible pump KTP 500
11
Pump stand GTF 600, free ball passage 30 mm
12 Access steps made of polymer, with fastening bolt
13 Flap holder with non-return flap
14 Pump connection suitable for pumping stations
14a
up to model year 12/2015
14b
beginning model year 01/2016
15 One-handed closure for backflow preventer
16 Pump coupling Aqualift S Mono
16a
up to model year 01/2016
16b
beginning model year 02/2016
17
Seal set for Aqualift S Ø 600/1000, Mono
* Will be replaced by new pump GTF 600, art. no. 680 880
1a
1b
2
3
4
5a
5b
6a
14a
15
14b
17
16a
16b
13
10
6b
7b
9b
6c
7c
8c
11
7a
8a-b
9a+c
12
