KESSEL AG
Spare parts catalogue 2021
3. Pump technology

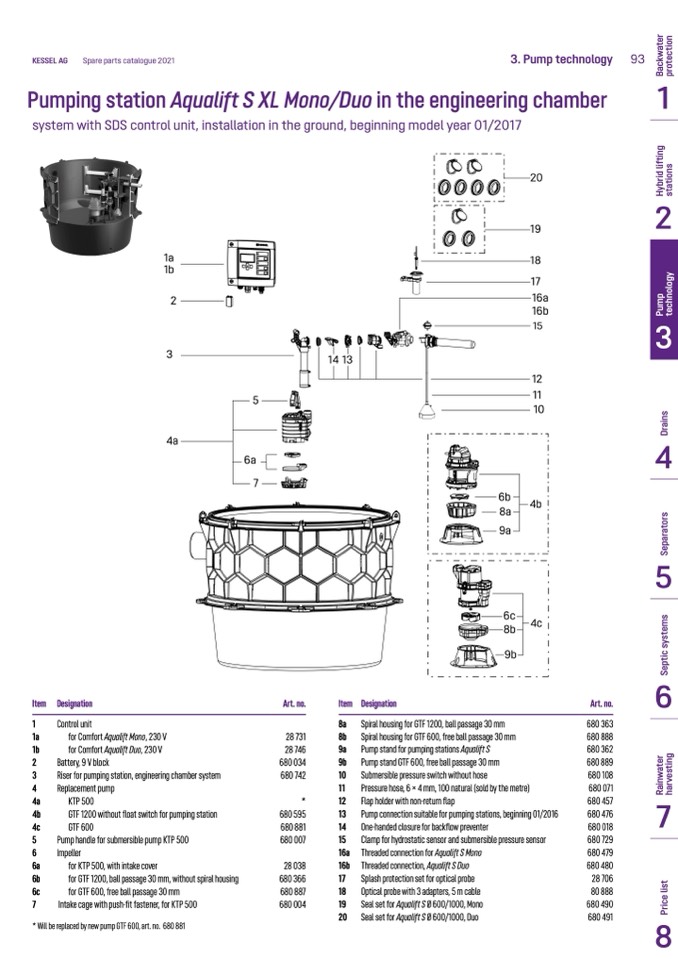

Pumping station Aqualift S XL Mono/Duo in the engineering chamber
93
1
2
3
4
5
6
7
8
system with SDS control unit, installation in the ground, beginning model year 01/2017
Item
1
1a
1b
2
3
4
4a
4b
4c
5
6
6a
6b
6c
7
Designation
Art. no.
28 731
28 746
680 034
680 742
*
680 595
680 881
680 007
28 038
680 366
680 887
680 004
Item Designation
Art. no.
680 363
680 888
680 362
680 889
680 108
680 071
680 457
680 476
680 018
680 729
680 479
680 480
28 706
80 888
680 490
680 491
Control unit
for Comfort Aqualift Mono, 230 V
for Comfort Aqualift Duo, 230 V
Battery, 9 V block
Riser for pumping station, engineering chamber system
Replacement pump
KTP 500
GTF 1200 without float switch for pumping station
GTF 600
Pump handle for submersible pump KTP 500
Impeller
for KTP 500, with intake cover
for GTF 1200, ball passage 30 mm, without spiral housing
for GTF 600, free ball passage 30 mm
Intake cage with push-fit fastener, for KTP 500
8a Spiral housing for GTF 1200, ball passage 30 mm
8b Spiral housing for GTF 600, free ball passage 30 mm
9a Pump stand for pumping stations Aqualift S
9b Pump stand GTF 600, free ball passage 30 mm
10 Submersible pressure switch without hose
11
Pressure hose, 6 × 4 mm, 100 natural (sold by the metre)
12 Flap holder with non-return flap
13 Pump connection suitable for pumping stations, beginning 01/2016
14 One-handed closure for backflow preventer
15 Clamp for hydrostatic sensor and submersible pressure sensor
16a Threaded connection for Aqualift S Mono
16b Threaded connection, Aqualift S Duo
17
Splash protection set for optical probe
18 Optical probe with 3 adapters, 5 m cable
19 Seal set for Aqualift S Ø 600/1000, Mono
20 Seal set for Aqualift S Ø 600/1000, Duo
* Will be replaced by new pump GTF 600, art. no. 680 881
1a
1b
2
3
4a
14 13
20
19
18
17
16a
16b
15
12
11
10
6b
8a
9a
5
6a
7
6c
8b
4c
9b
4b
