96 3. Pump technology

Spare parts catalogue 2021

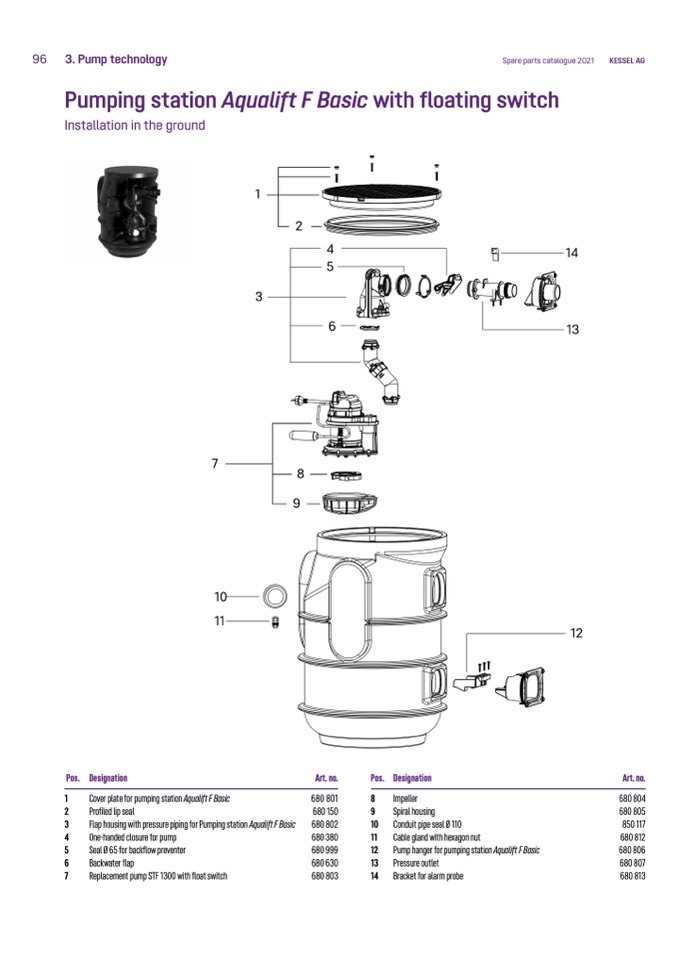

Pumping station Aqualift F Basic with floating switch

KESSEL AG

Installation in the ground

Pos. Designation

1

Cover plate for pumping station Aqualift F Basic

2

Profiled lip seal

3

Flap housing with pressure piping for Pumping station Aqualift F Basic

4

One-handed closure for pump

5

Seal Ø 65 for backflow preventer

6

Backwater flap

7

Replacement pump STF 1300 with float switch

Art. no.

680 801

680 150

680 802

680 380

680 999

680 630

680 803

Pos. Designation

8

Impeller

9

Spiral housing

10 Conduit pipe seal Ø 110

11

Cable gland with hexagon nut

12 Pump hanger for pumping station Aqualift F Basic

13 Pressure outlet

14 Bracket for alarm probe

Art. no.

680 804

680 805

850 117

680 812

680 806

680 807

680 813

1

3

6

7

9

10

11

12

2

4

5

14

13

8
