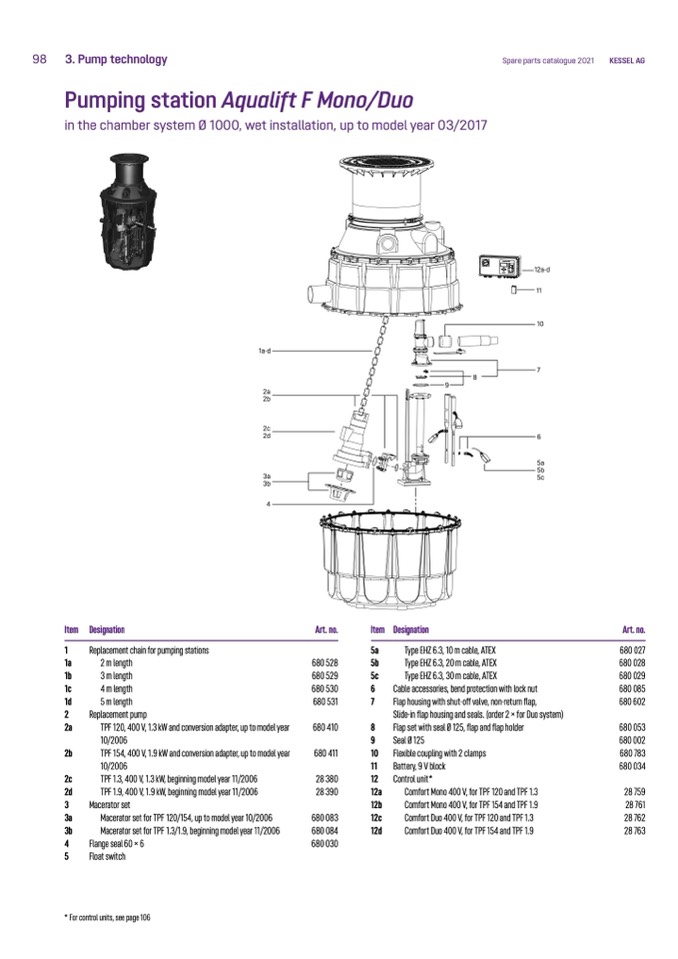

Pumping station Aqualift F Mono/Duo

in the chamber system Ø 1000, wet installation, up to model year 03/2017

Spare parts catalogue 2021

KESSEL AG

Item

1

1a

1b

1c

1d

2

2a

2b

2c

2d

3

3a

3b

4

5

Designation

Replacement chain for pumping stations

2 m length

3 m length

4 m length

5 m length

Art. no.

680 528

680 529

680 530

680 531

680 410

680 411

28 380

28 390

680 083

680 084

680 030

Item Designation

Art. no.

680 027

680 028

680 029

680 085

680 602

680 053

680 002

680 783

680 034

28 759

28 761

28 762

28 763

Replacement pump

TPF 120, 400 V, 1.3 kW and conversion adapter, up to model year

10/2006

TPF 154, 400 V, 1.9 kW and conversion adapter, up to model year

10/2006

TPF 1.3, 400 V, 1.3 kW, beginning model year 11/2006

TPF 1.9, 400 V, 1.9 kW, beginning model year 11/2006

Macerator set

Macerator set for TPF 120/154, up to model year 10/2006

Macerator set for TPF 1.3/1.9, beginning model year 11/2006

Flange seal 60 × 6

Float switch

5a

Type EHZ 6.3, 10 m cable, ATEX

5b

Type EHZ 6.3, 20 m cable, ATEX

5c

Type EHZ 6.3, 30 m cable, ATEX

6

Cable accessories, bend protection with lock nut

7

Flap housing with shut-off valve, non-return flap,

Slide-in flap housing and seals. (order 2 × for Duo

8

Flap set with seal Ø 125, flap and flap holder

9

Seal Ø 125

10 Flexible coupling with 2 clamps

11

Battery, 9 V block

12 Control unit*

12a

Comfort Mono 400 V, for TPF 120 and TPF 1.3

12b

Comfort Mono 400 V, for TPF 154 and TPF 1.9

12c

Comfort Duo 400 V, for TPF 120 and TPF 1.3

12d

Comfort Duo 400 V, for TPF 154 and TPF 1.9

system)

* For control units, see page 106

1a-d

2a

2b

2c

2d

3a

3b

4

8

12a-d

11

10

7

6

5a

5b

5c

9
