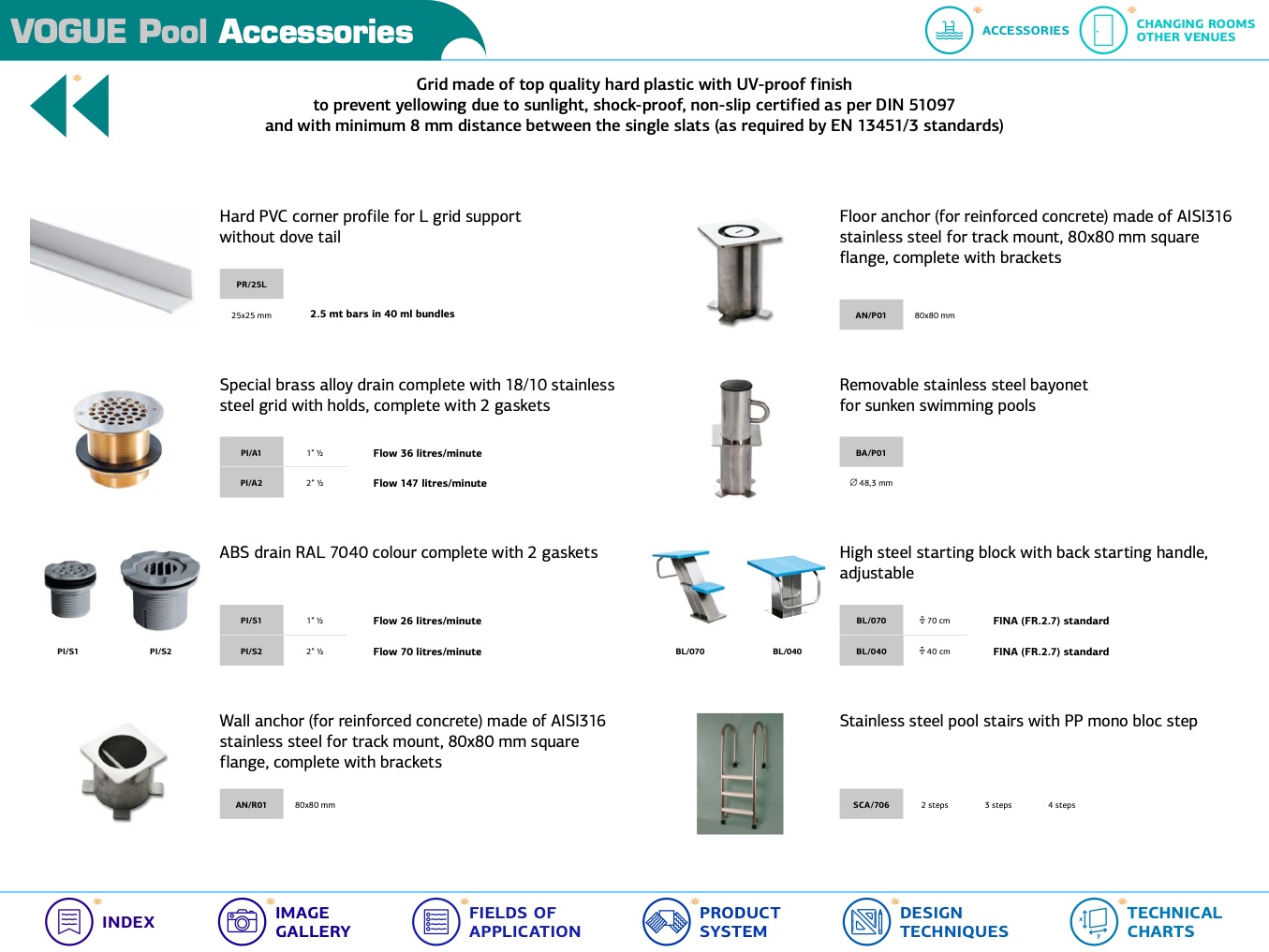

Grid made of top quality hard plastic with UV-proof finish

to prevent yellowing due to sunlight, shock-proof, non-slip certified as per DIN 51097

and with minimum 8 mm distance between the single slats (as required by EN 13451/3 standards)

PI/A1

PI/A2

PI/S1

PI/S2

BL/070

BL/040

PI/S1

PI/S2

Hard PVC corner profile for L grid support

without dove tail

PR/25L

25x25 mm

2.5 mt bars in 40 ml bundles

Special brass alloy drain complete with 18/10 stainless

steel grid with holds, complete with 2 gaskets

1” 1⁄2

Flow 36 litres/minute

2” 1⁄2

Flow 147 litres/minute

ABS drain RAL 7040 colour complete with 2 gaskets

1” 1⁄2

Flow 26 litres/minute

2” 1⁄2

Flow 70 litres/minute

Wall anchor (for reinforced concrete) made of AISI316

stainless steel for track mount, 80x80 mm square

flange, complete with brackets

AN/R01

80x80 mm

BL/070

BL/040

Floor anchor (for reinforced concrete) made of AISI316

stainless steel for track mount, 80x80 mm square

flange, complete with brackets

AN/P01

80x80 mm

Removable stainless steel bayonet

for sunken swimming pools

BA/P01

48,3 mm

High steel starting block with back starting handle,

adjustable

70 cm

FINA (FR.2.7) standard

40 cm

FINA (FR.2.7) standard

Stainless steel pool stairs with PP mono bloc step

SCA/706

2 steps

3 steps

4 steps
