design techniques

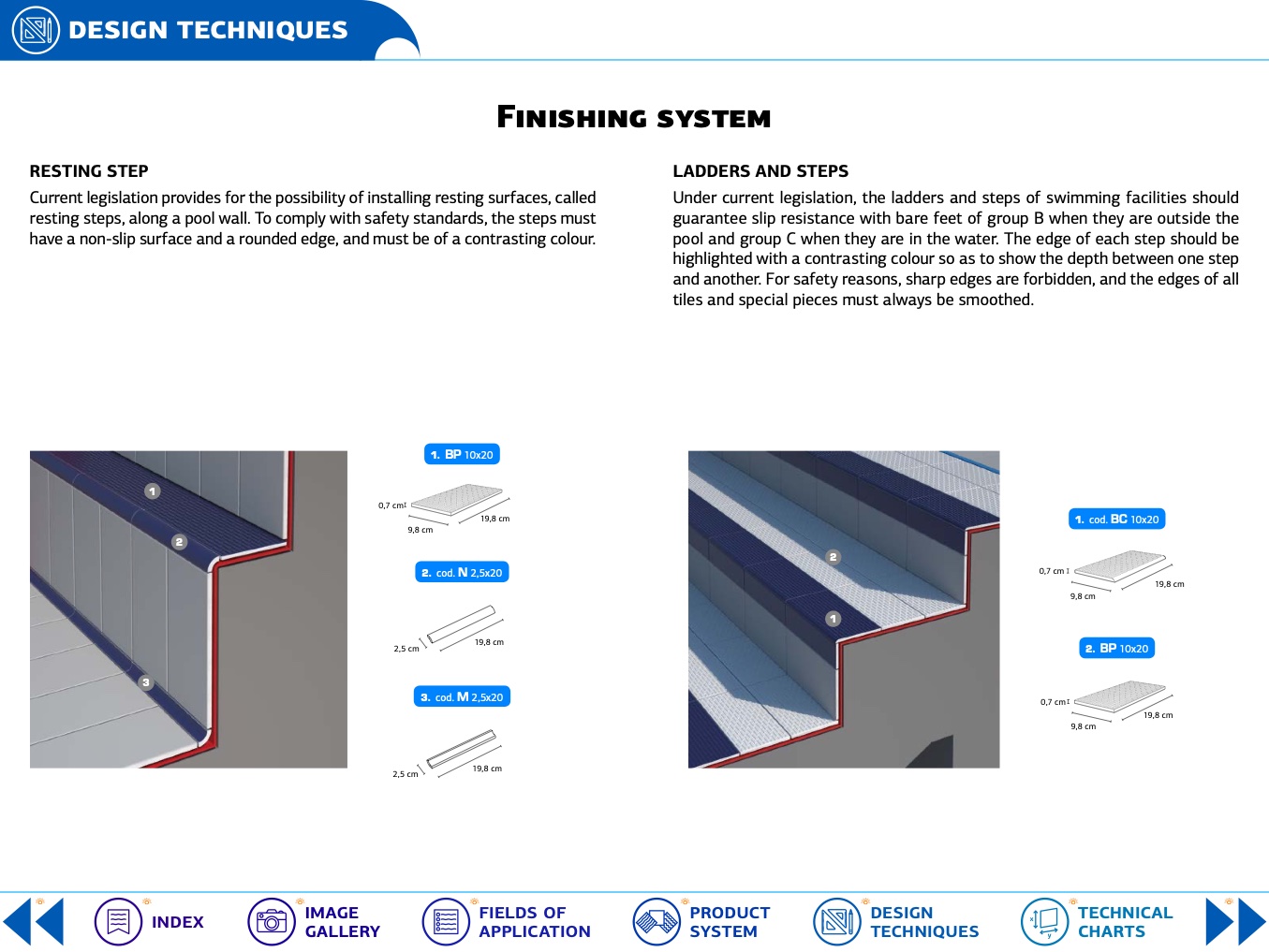

RESTING STEP

Current legislation provides for the possibility of installing resting surfaces, called

resting steps, along a pool wall. To comply with safety standards, the steps must

have a non-slip surface and a rounded edge, and must be of a contrasting colour.

LADDERS AND STEPS

Under current legislation, the ladders and steps of swimming facilities should

guarantee slip resistance with bare feet of group B when they are outside the

pool and group C when they are in the water. The edge of each step should be

highlighted with a contrasting colour so as to show the depth between one step

and another. For safety reasons, sharp edges are forbidden, and the edges of all

tiles and special pieces must always be smoothed.

1

2

3

1. BP 10x20

0,7 cm

19,8 cm

9,8 cm

2. cod. N 2,5x20

2

1

1. cod. BC 10x20

0,7 cm

index


gallery

design

techniques

technical

charts

2,5 cm

19,8 cm

2. BP 10x20

0,7 cm

9,8 cm

2,5 cm

19,8 cm

fields of

product

application

system

3. cod. M 2,5x20

Finishing system

9,8 cm

19,8 cm

19,8 cm
