design techniques

Anti-slip value

inclination angle

Barefoot areas

Anti-slip value

inclination angle

Areas with footwear

≥ 12° <18°

6° ≤ α tot ≤10°

medium adhesion

B

hight adhesion

C

strong adhesion

DIN 51130

19° ≤ α tot ≤27°

-

-

-

-

-

V6

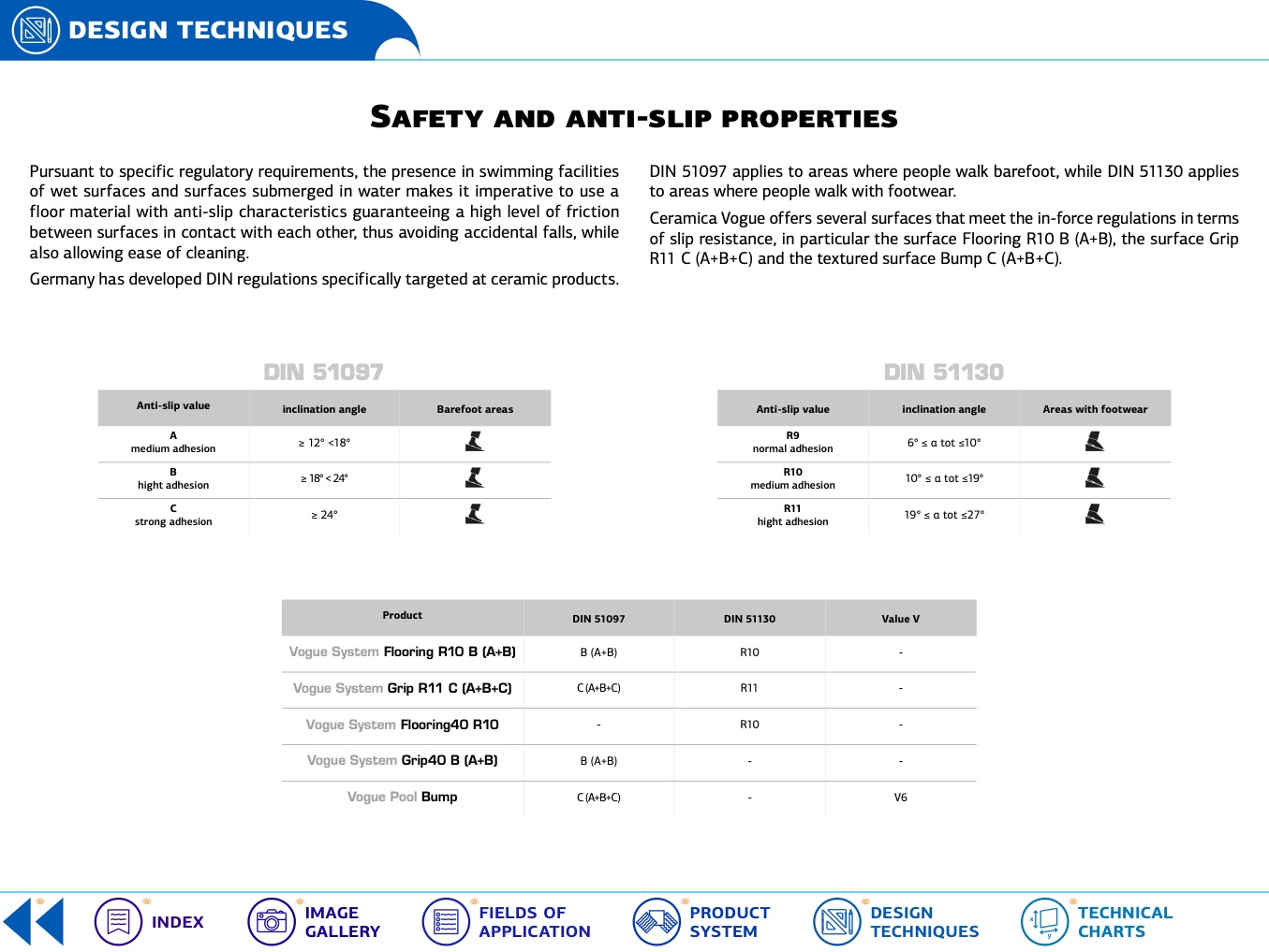

Safety and anti-slip properties

Pursuant to specific regulatory requirements, the presence in swimming facilities

of wet surfaces and surfaces submerged in water makes it imperative to use a

floor material with anti-slip characteristics guaranteeing a high level of friction

between surfaces in contact with each other, thus avoiding accidental falls, while

also allowing ease of cleaning.

Germany has developed DIN regulations specifically targeted at ceramic products.

DIN 51097

A

R9

DIN 51097 applies to areas where people walk barefoot, while DIN 51130 applies

to areas where people walk with footwear.

Ceramica Vogue offers several surfaces that meet the in-force regulations in terms

of slip resistance, in particular the surface Flooring R10 B (A+B), the surface Grip

R11 C (A+B+C) and the textured surface Bump C (A+B+C).

≥18°<24°

10° ≤ α tot ≤19°

≥ 24°

Vogue System Flooring R10 B (A+B)

Vogue System Grip R11 C (A+B+C)

Vogue System Flooring40 R10

Vogue System Grip40 B (A+B)

Vogue Pool Bump

normal adhesion

R10

medium adhesion

R11

hight adhesion

Product

DIN 51097

DIN 51130

Value V

B (A+B)

R10

C (A+B+C)

R11

-

R10

B (A+B)

-

C (A+B+C)
