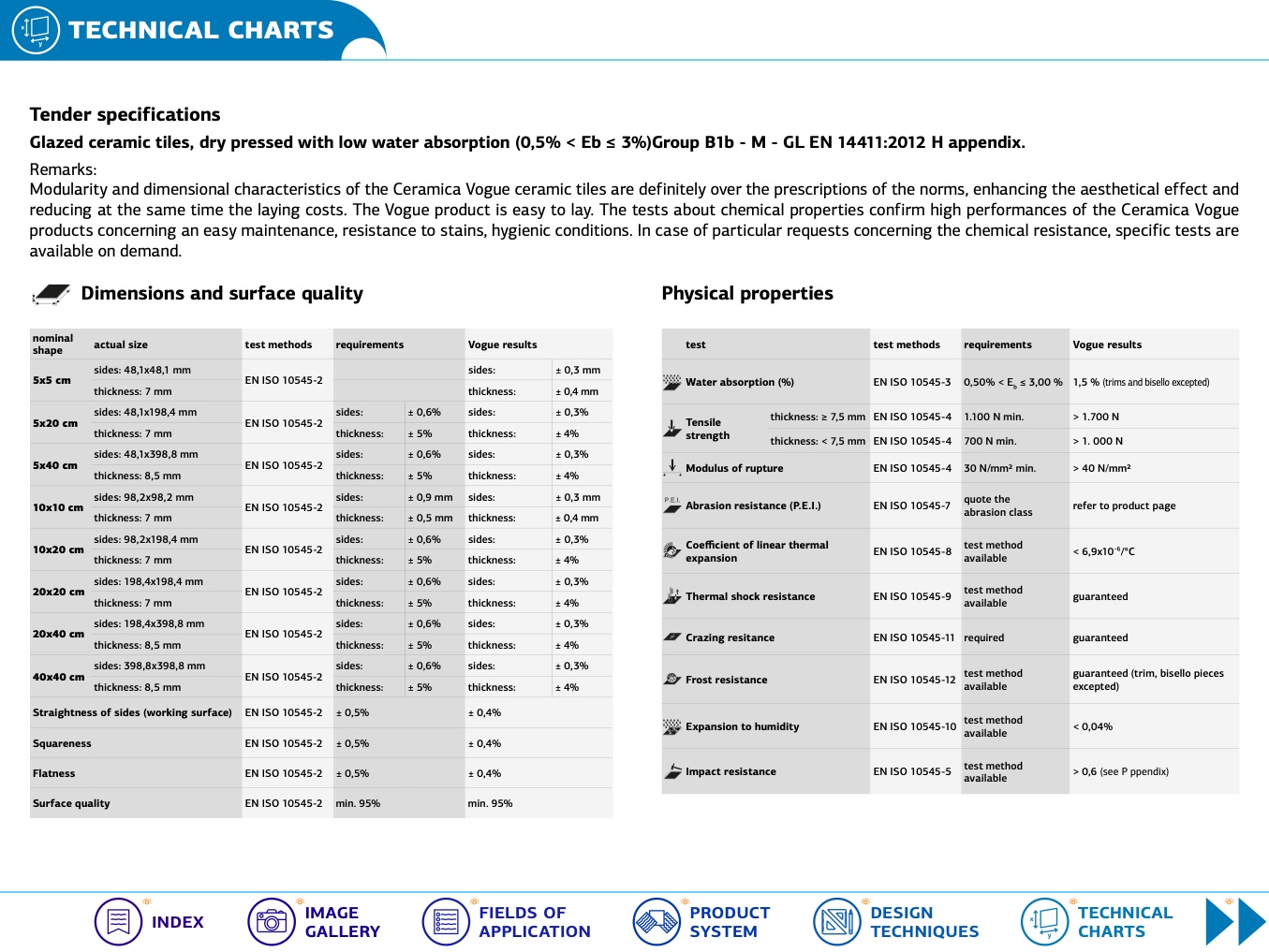

technical charts
Tender specifications
Glazed ceramic tiles, dry pressed with low water absorption (0,5% < Eb ≤ 3%)Group B1b - M - GL EN 14411:2012 H appendix.
Remarks:
Modularity and dimensional characteristics of the Ceramica Vogue ceramic tiles are definitely over the prescriptions of the norms, enhancing the aesthetical effect and
reducing at the same time the laying costs. The Vogue product is easy to lay. The tests about chemical properties confirm high performances of the Ceramica Vogue
products concerning an easy maintenance, resistance to stains, hygienic conditions. In case of particular requests concerning the chemical resistance, specific tests are
available on demand.
Dimensions and surface quality
Physical properties
test
Water absorption (%)
Tensile
strength
Modulus of rupture
Abrasion resistance (P.E.I.)
Coefficient of linear thermal
expansion
Thermal shock resistance
Crazing resitance
Frost resistance
Expansion to humidity
Impact resistance
nominal
shape
actual size
test methods
requirements
Vogue results
5x5 cm
sides: 48,1x48,1 mm
EN ISO 10545-2
sides: ± 0,3 mm
thickness: 7 mm
thickness: ± 0,4 mm
5x20 cm
sides: 48,1x198,4 mm
EN ISO 10545-2
sides: ± 0,6%
sides:
± 0,3%
thickness: 7 mm
thickness:
± 5%
thickness:
± 4%
5x40 cm
sides: 48,1x398,8 mm
EN ISO 10545-2
sides: ± 0,6%
sides: ± 0,3%
thickness: 8,5 mm
thickness: ± 5%
thickness: ± 4%
10x10 cm
sides: 98,2x98,2 mm
EN ISO 10545-2
sides: ± 0,9 mm
sides: ± 0,3 mm
thickness: 7 mm
thickness:
± 0,5 mm
thickness:
± 0,4 mm
10x20 cm
sides: 98,2x198,4 mm
EN ISO 10545-2
sides:
± 0,6%
sides:
± 0,3%
thickness: 7 mm
thickness:
± 5%
thickness:
± 4%
20x20 cm
sides: 198,4x198,4 mm
EN ISO 10545-2
sides: ± 0,6%
sides: ± 0,3%
thickness: 7 mm
thickness: ± 5%
thickness: ± 4%
20x40 cm
sides: 198,4x398,8 mm
EN ISO 10545-2
sides:
± 0,6%
sides:
± 0,3%
thickness: 8,5 mm
thickness: ± 5%
thickness: ± 4%
40x40 cm
sides: 398,8x398,8 mm
EN ISO 10545-2
sides:
± 0,6%
sides:
± 0,3%
thickness: 8,5 mm
thickness: ± 5%
thickness: ± 4%
Straightness of sides (working surface)
EN ISO 10545-2
± 0,5%
± 0,4%
Squareness
EN ISO 10545-2
± 0,5%
± 0,4%
Flatness
EN ISO 10545-2
± 0,5%
± 0,4%
Surface quality
EN ISO 10545-2
min. 95%
min. 95%
test methods
EN ISO 10545-3
requirements
0,50% < E
b
≤ 3,00 %
Vogue results
1,5 % (trims and bisello excepted)
thickness: ≥ 7,5 mm
EN ISO 10545-4
1.100 N min.
> 1.700 N
thickness: < 7,5 mm
EN ISO 10545-4
700 N min.
30 N/mm2 min.
> 1. 000 N
EN ISO 10545-4
> 40 N/mm2
EN ISO 10545-7
quote the
abrasion class
refer to product page
EN ISO 10545-8
test method
available
< 6,9x10
-6
/°C
EN ISO 10545-9
test method
available
guaranteed
EN ISO 10545-11
required
guaranteed
EN ISO 10545-12
test method
available
guaranteed (trim, bisello pieces
excepted)
EN ISO 10545-10
test method
available
< 0,04%
EN ISO 10545-5
test method
available
> 0,6 (see P ppendix)
