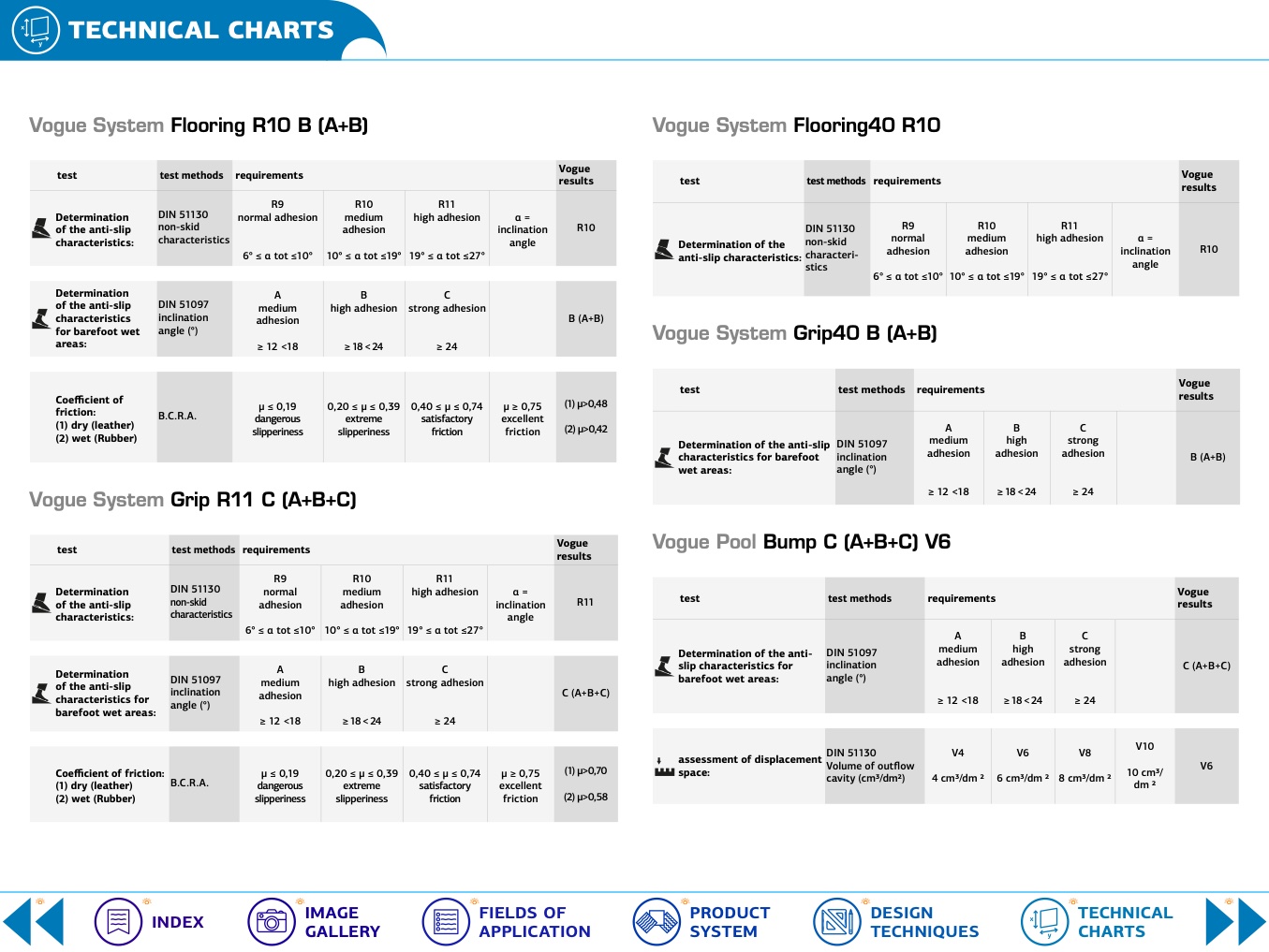

technical charts

Vogue System Flooring R10 B (A+B)

Vogue System Flooring40 R10

test

test methods

requirements

Vogue

results

Determination

of the anti-slip

characteristics:

DIN 51130

non-skid

characteristics

R9

normal adhesion

6° ≤ α tot ≤10°

R10

medium

adhesion

10° ≤ α tot ≤19°

R11

high adhesion

19° ≤ α tot ≤27°

α=

inclination

angle

R10

test

test methods

requirements

Vogue

results

Determination of the

anti-slip characteristics:

DIN 51130

non-skid

characteri-

stics

R9

normal

adhesion

6° ≤ α tot ≤10°

R10

medium

adhesion

10° ≤ α tot ≤19°

R11

high adhesion

19° ≤ α tot ≤27°

α=

inclination

angle

R10

Determination

of the anti-slip

characteristics

for barefoot wet

areas:

DIN 51097

inclination

angle (°)

A

medium

adhesion

≥ 12 <18

B

high adhesion

≥18<24

C

strong adhesion

≥ 24

B (A+B)

Vogue System Grip40 B (A+B)

test

test methods

requirements

Vogue

results

Determination of the anti-slip

characteristics for barefoot

wet areas:

DIN 51097

inclination

angle (°)

A

medium

adhesion

≥ 12 <18

B

high

adhesion

≥18<24

C

strong

adhesion

≥ 24

B (A+B)

Coefficient of

friction:

(1) dry (leather)

(2) wet (Rubber)

B.C.R.A.

μ ≤ 0,19

dangerous

slipperiness

0,20 ≤ μ ≤ 0,39

extreme

slipperiness

0,40 ≤ μ ≤ 0,74

satisfactory

friction

μ ≥ 0,75

excellent

friction

(1) μ>0,48

(2) μ>0,42

Vogue System Grip R11 C (A+B+C)

Vogue Pool Bump C (A+B+C) V6

test

test methods

requirements

Vogue

results

Determination

of the anti-slip

characteristics:

DIN 51130

non-skid

characteristics

R9

normal

adhesion

6° ≤ α tot ≤10°

R10

medium

adhesion

10° ≤ α tot ≤19°

R11

high adhesion

19° ≤ α tot ≤27°

α=

inclination

angle

R11

test

test methods

requirements

Vogue

results

Determination of the anti-

slip characteristics for

barefoot wet areas:

DIN 51097

inclination

angle (°)

A

medium

adhesion

≥ 12 <18

B

high

adhesion

≥18<24

C

strong

adhesion

≥ 24

C (A+B+C)

Determination

of the anti-slip

characteristics for

barefoot wet areas:

DIN 51097

inclination

angle (°)

A

medium

adhesion

≥ 12 <18

B

high adhesion

≥18<24

C

strong adhesion

≥ 24

C (A+B+C)

assessment of displacement

space:

DIN 51130

Volume of outflow

cavity (cm3/dm2)

V4

4 cm3/dm 2

V6

6 cm3/dm 2

V8

8 cm3/dm 2

V10

10 cm3/

dm 2

V6

Coefficient of friction:

(1) dry (leather)

(2) wet (Rubber)

B.C.R.A.

μ ≤ 0,19

dangerous

slipperiness

0,20 ≤ μ ≤ 0,39

extreme

slipperiness

0,40 ≤ μ ≤ 0,74

satisfactory

friction

μ ≥ 0,75

excellent

friction

(1) μ>0,70

(2) μ>0,58
