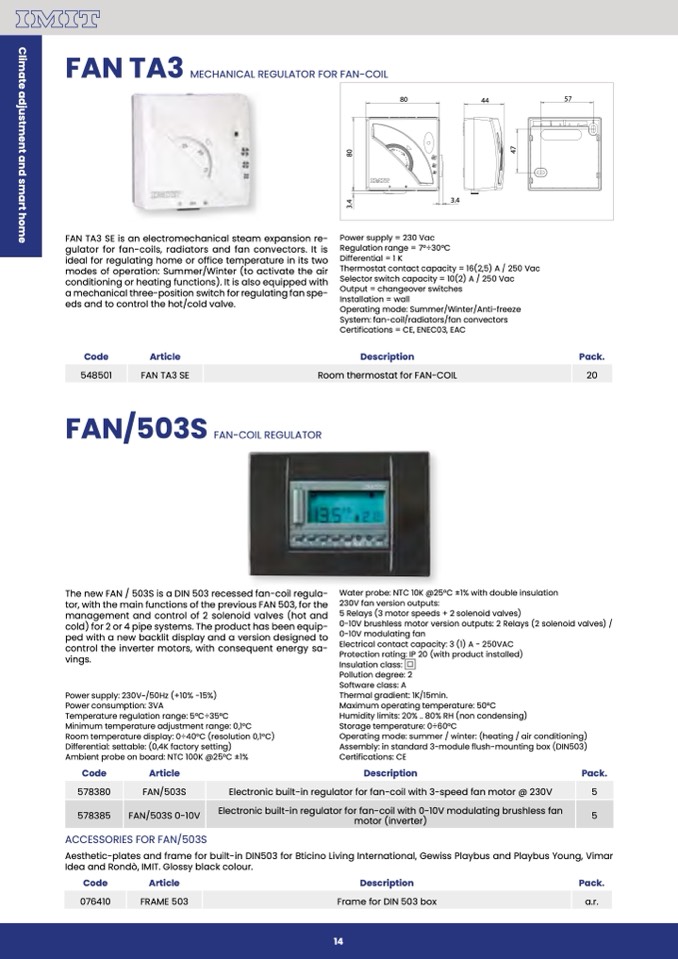

MECHANICAL REGULATOR FOR FAN-COIL

FAN TA3

FAN TA3 SE is an electromechanical steam expansion re-

gulator for fan-coils, radiators and fan convectors. It is

ideal for regulating home or office temperature in its two

modes of operation: Summer/Winter (to activate the air

conditioning or heating functions). It is also equipped with

a mechanical three-position switch for regulating fan spe-

eds and to control the hot/cold valve.

Code

Article

548501

FAN TA3 SE

3

.

4

8

0

4

7

25

1

5

C

l

i

m

a

t

e

a

d

j

u

s

t

m

e

n

t

a

n

d

s

m

a

r

t

h

o

m

e

FAN/503S

FAN-COIL REGULATOR

The new FAN / 503S is a DIN 503 recessed fan-coil regula-

tor, with the main functions of the previous FAN 503, for the

management and control of 2 solenoid valves (hot and

cold) for 2 or 4 pipe systems. The product has been equip-

ped with a new backlit display and a version designed to

control the inverter motors, with consequent energy sa-

vings.

Power supply: 230V~/50Hz (+10% -15%)

Power consumption: 3VA

Temperature regulation range: 5°C÷35°C

Minimum temperature adjustment range: 0,1°C

Room temperature display: 0÷40°C (resolution 0,1°C)

Differential: settable: (0,4K factory setting)

Ambient probe on board: NTC 100K @25°C ±1%

Water probe: NTC 10K @25°C ±1% with double insulation

230V fan version outputs:

5 Relays (3 motor speeds + 2 solenoid valves)

0-10V brushless motor version outputs: 2 Relays (2 solenoid valves) /

0-10V modulating fan

Electrical contact capacity: 3 (1) A - 250VAC

Protection rating: IP 20 (with product installed)

Insulation class:

Pollution degree: 2

Software class: A

Thermal gradient: 1K/15min.

Maximum operating temperature: 50°C

Humidity limits: 20% .. 80% RH (non condensing)

Storage temperature: 0÷60°C

Operating mode: summer / winter: (heating / air conditioning)

Assembly: in standard 3-module flush-mounting box (DIN503)

Certifications: CE

Code

578380

578385

Article

FAN/503S

FAN/503S 0-10V

Description

Pack.

ACCESSORIES FOR FAN/503S

80

44

57

3.4

Power supply = 230 Vac

Regulation range = 7°÷30°C

Differential = 1 K

Thermostat contact capacity = 16(2,5) A / 250 Vac

Selector switch capacity = 10(2) A / 250 Vac

Output = changeover switches

Installation = wall

Operating mode: Summer/Winter/Anti-freeze

System: fan-coil/radiators/fan convectors

Certifications = CE, ENEC03, EAC

Description

Pack.

Room thermostat for FAN-COIL

20

Electronic built-in regulator for fan-coil with 3-speed fan motor @ 230V

5

Electronic built-in regulator for fan-coil with 0-10V modulating brushless fan

5

motor (inverter)

Aesthetic-plates and frame for built-in DIN503 for Bticino Living International, Gewiss Playbus and Playbus Young, Vimar

Idea and Rondò, IMIT. Glossy black colour.

Code

Article

Description

Pack.

076410

FRAME 503

Frame for DIN 503 box

a.r.
