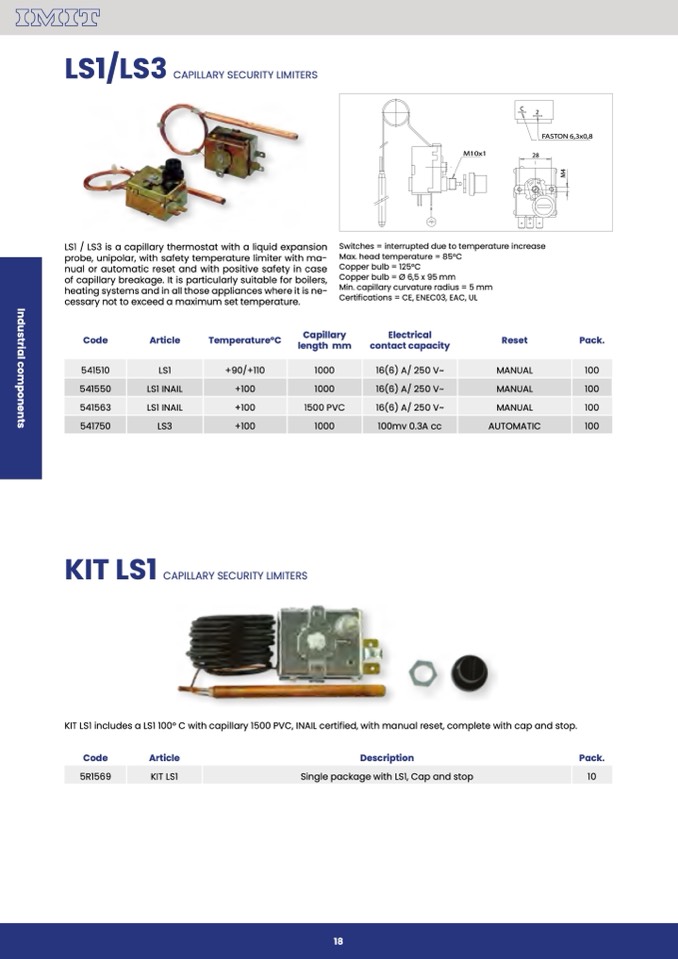

CAPILLARY SECURITY LIMITERS

LS1/LS3

LS1 / LS3 is a capillary thermostat with a liquid expansion

probe, unipolar, with safety temperature limiter with ma-

nual or automatic reset and with positive safety in case

of capillary breakage. It is particularly suitable for boilers,

heating systems and in all those appliances where it is ne-

cessary not to exceed a maximum set temperature.

FASTON 6,3x0,8

28

M10x1

Switches = interrupted due to temperature increase

Max. head temperature = 85°C

Copper bulb = 125°C

Copper bulb = Ø 6,5 x 95 mm

KIT LS1 includes a LS1 100° C with capillary 1500 PVC, INAIL certified, with manual reset, complete with cap and stop.

Code

Article

Description

Pack.

Min. capillary curvature radius = 5 mm

Certifications = CE, ENEC03, EAC, UL

C

2

Code

Article

Temperature°C

Capillary

Electrical

length mm contact capacity

Reset

Pack.

541510

LS1

+90/+110

1000

16(6) A/ 250 V~

MANUAL

100

541550

LS1 INAIL

+100

1000

16(6) A/ 250 V~

MANUAL

100

541563

LS1 INAIL

+100

1500 PVC

16(6) A/ 250 V~

MANUAL

100

541750

LS3

+100

1000

100mv 0.3A cc

AUTOMATIC

100

KIT LS1

CAPILLARY SECURITY LIMITERS

5R1569

KIT LS1

Single package with LS1, Cap and stop

10
