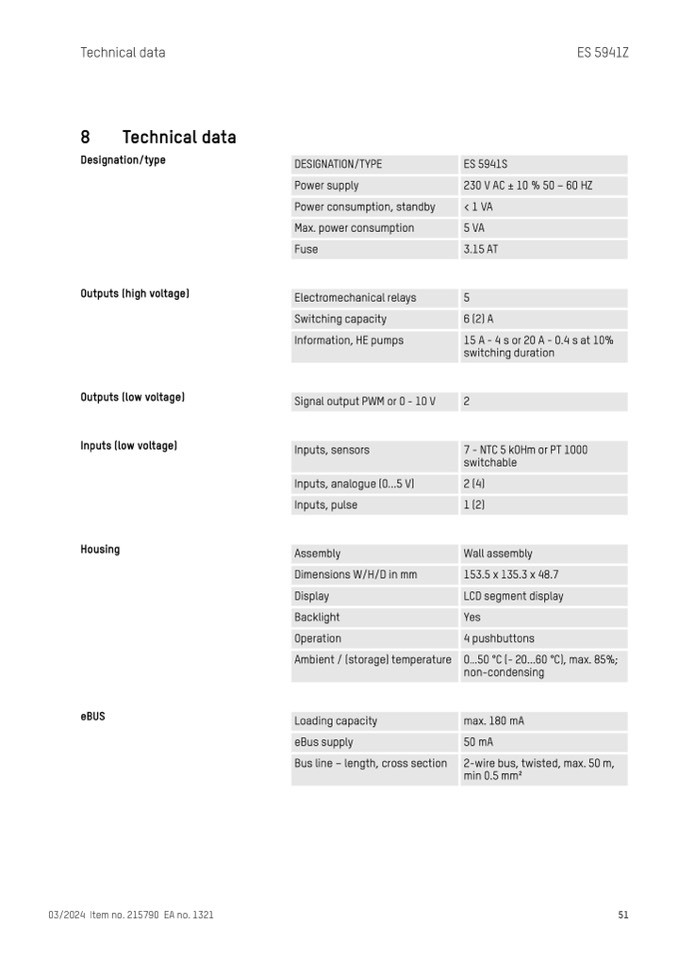

Technical data

ES 5941Z

8

Technical data

Designation/type

Outputs (high voltage)

Outputs (low voltage)

Inputs (low voltage)

Housing

DESIGNATION/TYPE

ES 5941S

Power supply

230 V AC ± 10 % 50 – 60 HZ

Power consumption, standby

< 1 VA

Max. power consumption

5 VA

Fuse

3.15 AT

Electromechanical relays

5

Switching capacity

6 (2) A

Information, HE pumps

15 A - 4 s or 20 A - 0.4 s at 10%

switching duration

Signal output PWM or 0 - 10 V

2

Inputs, sensors

7 - NTC 5 kOHm or PT 1000

switchable

Inputs, analogue (0...5 V)

2 (4)

Inputs, pulse

1 (2)

Assembly

Wall assembly

Dimensions W/H/D in mm

153.5 x 135.3 x 48.7

Display

LCD segment display

Backlight

Yes

Operation

4 pushbuttons

Ambient / (storage) temperature

0...50 °C (- 20...60 °C), max. 85%;

non-condensing

Loading capacity

max. 180 mA

eBus supply

50 mA

Bus line – length, cross section

2-wire bus, twisted, max. 50 m,

min 0.5 mm2

eBUS

03/2024 Item no. 215790 EA no. 1321

51
