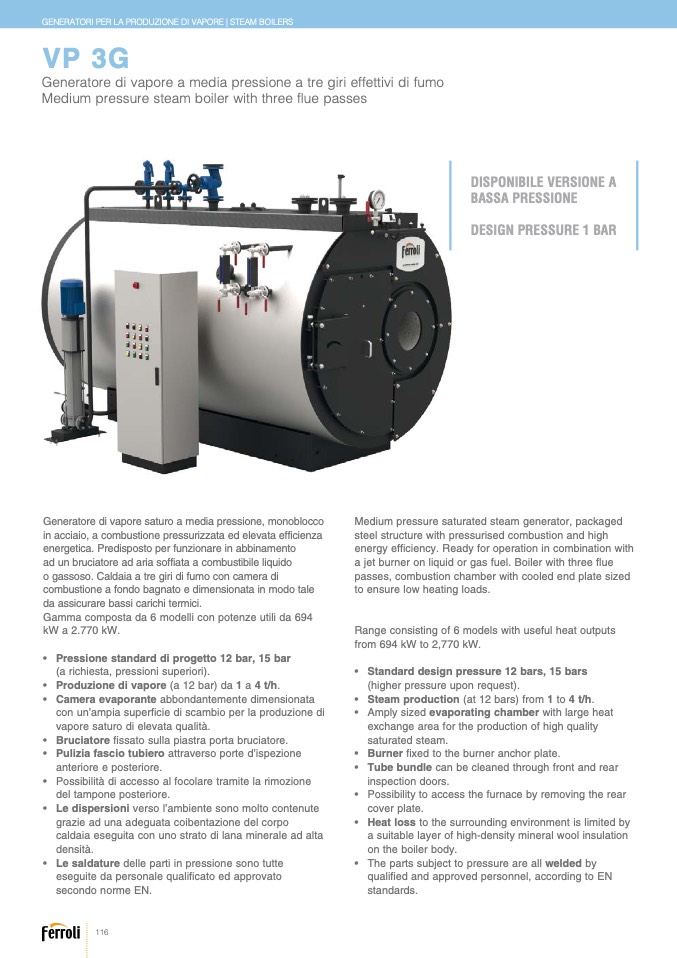

GENERATORI PER LA PRODUZIONE DI VAPORE | STEAM BOILERS

VP 3G

Generatore di vapore a media pressione a tre giri effettivi di fumo

Medium pressure steam boiler with three flue passes

Generatore di vapore saturo a media pressione, monoblocco

in acciaio, a combustione pressurizzata ed elevata efficienza

energetica. Predisposto per funzionare in abbinamento

ad un bruciatore ad aria soffiata a combustibile liquido

o gassoso. Caldaia a tre giri di fumo con camera di

combustione a fondo bagnato e dimensionata in modo tale

da assicurare bassi carichi termici.

Gamma composta da 6 modelli con potenze utili da 694

kW a 2.770 kW.

• Pressione standard di progetto 12 bar, 15 bar

(a richiesta, pressioni superiori).

• Produzione di vapore (a 12 bar) da 1 a 4 t/h.

• Camera evaporante abbondantemente dimensionata

con un’ampia superficie di scambio per la produzione di

vapore saturo di elevata qualità.

• Bruciatore fissato sulla piastra porta bruciatore.

• Pulizia fascio tubiero attraverso porte d’ispezione

anteriore e posteriore.

• Possibilità di accesso al focolare tramite la rimozione

del tampone posteriore.

• Le dispersioni verso l’ambiente sono molto contenute

grazie ad una adeguata coibentazione del corpo

caldaia eseguita con uno strato di lana minerale ad alta

densità.

• Le saldature delle parti in pressione sono tutte

eseguite da personale qualificato ed approvato

secondo norme EN.

Medium pressure saturated steam generator, packaged

steel structure with pressurised combustion and high

energy efficiency. Ready for operation in combination with

a jet burner on liquid or gas fuel. Boiler with three flue

passes, combustion chamber with cooled end plate sized

to ensure low heating loads.

Range consisting of 6 models with useful heat outputs

from 694 kW to 2,770 kW.

• Standard design pressure 12 bars, 15 bars

(higher pressure upon request).

• Steam production (at 12 bars) from 1 to 4 t/h.

• Amply sized evaporating chamber with large heat

exchange area for the production of high quality

saturated steam.

• Burner fixed to the burner anchor plate.

• Tube bundle can be cleaned through front and rear

inspection doors.

• Possibility to access the furnace by removing the rear

cover plate.

• Heat loss to the surrounding environment is limited by

a suitable layer of high-density mineral wool insulation

on the boiler body.

• The parts subject to pressure are all welded by

qualified and approved personnel, according to EN

standards.

DISPONIBILE VERSIONE A

BASSA PRESSIONE

DESIGN PRESSURE 1 BAR
